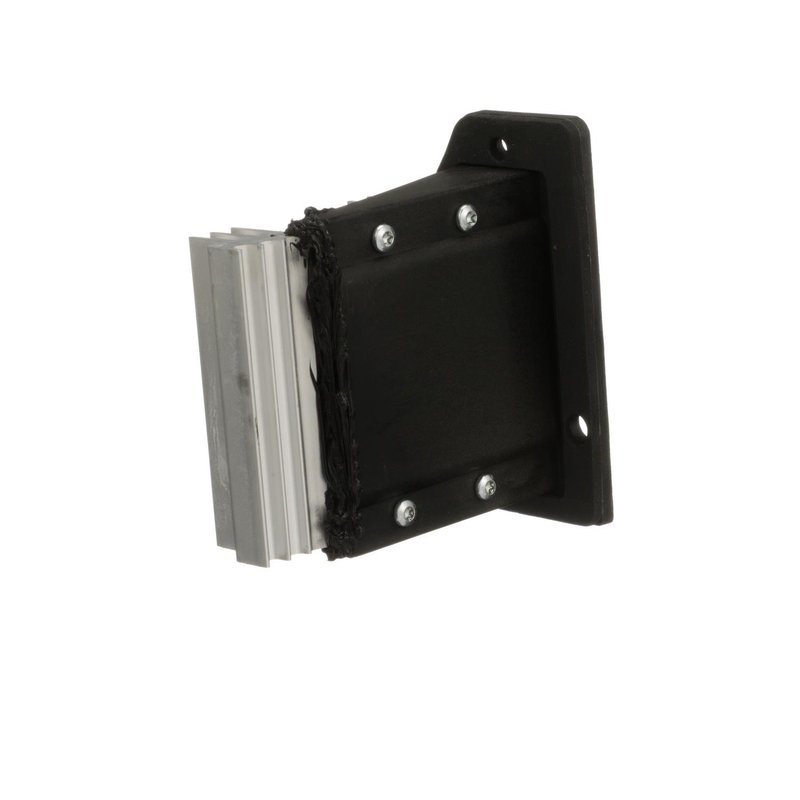

Standard Ignition RU-540 A/C Power Module

Reliable A/C Power Module for Buick, Cadillac, Chevrolet, and Oldsmobile

The Standard Ignition RU-540 A/C Power Module is designed to provide consistent HVAC control for select Buick, Cadillac, Chevrolet, and Oldsmobile models. Engineered for durability and precise operation, this bolt-on module supports multiple fan speeds and includes a mounting bracket for secure installation.

Key Features of Standard Ignition RU-540 A/C Power Module

• Bolt-on attachment method for straightforward installation
• Female connectors with two connection points
• Connector shapes include round and square for versatile compatibility
• Includes mounting bracket(s) for secure fitment
• Supports 3-5 speed fan control for accurate HVAC performance
• Six blade-type male terminals with six connector cavities
• Compatible with wiring harnesses (not included)

Detailed Description of the RU-540 A/C Power Module

The Standard Ignition RU-540 is an A/C power module designed to regulate the blower motor speeds in HVAC systems of various GM vehicles. It features a bolt-on attachment method, ensuring a secure and stable fit within the HVAC assembly. The module includes female connectors with two connection points, accommodating both round and square connector shapes. This design supports 3 to 5 speed settings, allowing precise control over the vehicle’s climate system. The included mounting bracket(s) facilitate proper positioning and stability during operation. With six blade-type male terminals and six connector cavities, the module ensures reliable electrical connections for consistent performance.

Compatible Vehicles and Common Applications

• Buick models such as LeSabre, Park Avenue, and Roadmaster
• Cadillac models including DeVille, Eldorado, Seville, and Fleetwood
• Chevrolet models like Corvette and Commercial Chassis
• Oldsmobile models including 60 Special, 98, and Toronado
• Other GM models such as Allante, Brougham, Reatta, Riviera

Common Issues Addressed by the RU-540 Module

• Intermittent or non-functioning blower motor speeds
• HVAC fan stuck on a single speed or not responding to controls
• Electrical connection failures causing HVAC system malfunctions
• Loose or unstable mounting leading to inconsistent blower operation
• Compatibility issues with original equipment blower motor controls

Installation Notes and Tips

• Ensure the vehicle’s ignition is off before beginning installation
• Use the included mounting bracket(s) to secure the module firmly
• Verify connector orientation—female connectors with round and square shapes
• Check that all six blade terminals are properly seated for reliable contact
• Wiring harness is not included; reuse the existing harness or source separately

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-540 A/C Power Module undergoes rigorous quality control to ensure reliable HVAC system performance. While hardware and instructions are not included, the product is backed by Standard Ignition’s limited warranty against defects in material and workmanship.
