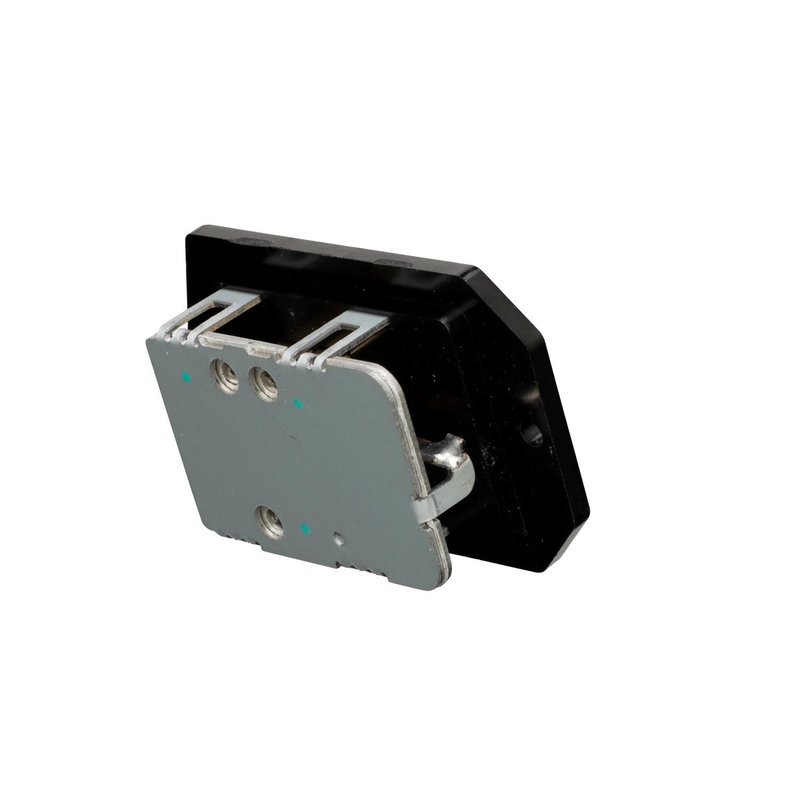

Standard Ignition RU-560 HVAC Blower Motor Resistor - Front

Reliable HVAC Blower Motor Resistor for Chrysler, Dodge, Jeep

The Standard Ignition RU-560 HVAC blower motor resistor is designed to restore proper blower motor function in select Chrysler, Dodge, and Jeep vehicles. Engineered for durability and precise fitment, this resistor ensures consistent climate control performance.

• Bolt mount attachment method for secure installation
• Female rectangular, square connector with 4 cavities
• Supports 3-5 speed blower motor operation
• Includes mounting bracket(s) for easy setup
• Blade-type male terminals with 4 terminals and wires
• No wiring harness or additional hardware included

Product Details and Specifications

The RU-560 blower motor resistor from Standard Ignition is built to meet OEM specifications for HVAC systems in vehicles such as the Chrysler 200, Avenger, Sebring, and Dodge Caliber, Compass, Journey, and Patriot. This resistor features a bolt mount attachment method that ensures a stable and vibration-resistant fit. The connector is female with a rectangular, square shape and contains four cavities, matching the original equipment for seamless electrical connection. It supports blower motors with 3 to 5 speed settings, allowing for precise fan speed control. The included mounting bracket(s) facilitate straightforward installation, while the blade-type male terminals provide reliable electrical contact. Note that this part does not include a wiring harness or additional hardware, so existing vehicle components will be reused during installation.

Compatible Vehicles and Applications

This HVAC blower motor resistor is compatible with various Chrysler, Dodge, and Jeep models, including:

• Chrysler 200 and Sebring
• Dodge Avenger, Caliber, Compass, Journey, Patriot
• Jeep Compass, Patriot

It is specifically designed to replace faulty blower motor resistors that cause inconsistent or non-functioning HVAC blower speeds.

Common Issues Resolved by RU-560 Resistor

• Blower motor only works on high speed or limited speeds
• Intermittent blower motor operation
• Complete loss of blower motor function
• HVAC fan speed control failure
• Electrical resistance issues causing blower motor overheating

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Locate the blower motor resistor near the HVAC blower motor assembly
• Remove the old resistor by unbolting and disconnecting the electrical connector
• Install the RU-560 resistor using the bolt mount and included mounting bracket(s)
• Verify connector orientation matches the female rectangular shape with 4 cavities
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition manufactures the RU-560 blower motor resistor to meet or exceed OEM standards for fit, form, and function. This part undergoes rigorous quality control to ensure reliable performance in Chrysler, Dodge, and Jeep HVAC systems. Warranty coverage details are provided by Standard Ignition and typically include protection against defects in materials and workmanship for a specified period.
