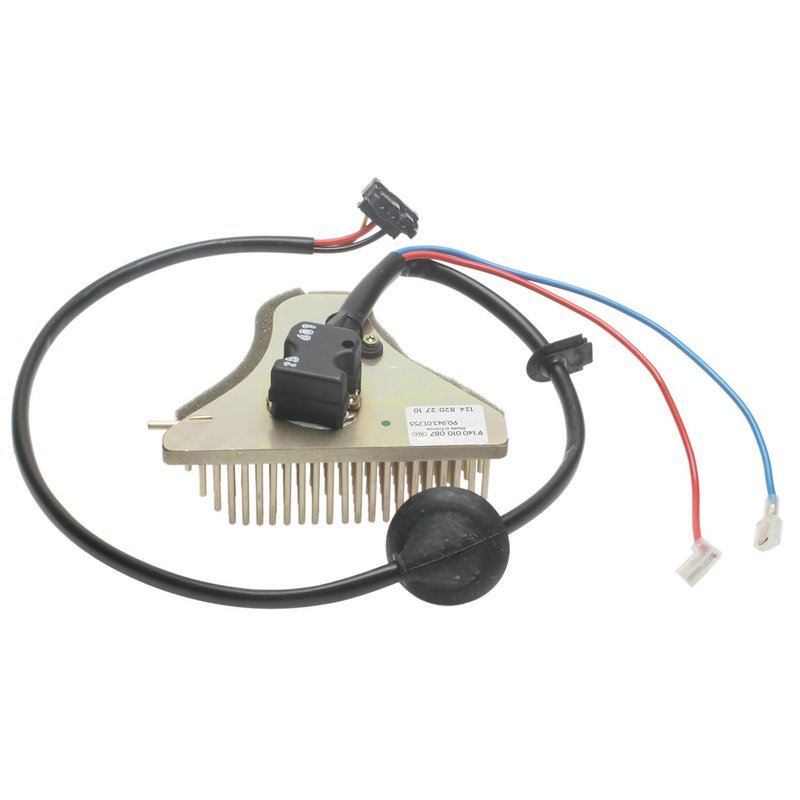

Standard Ignition RU-562 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Mercedes-Benz Models

The Standard Ignition RU-562 HVAC blower motor resistor is designed to restore proper blower motor function in select Mercedes-Benz vehicles. Engineered to meet OEM specifications, this resistor ensures consistent fan speed control for your vehicle's heating and cooling system.

• Compatible with Mercedes-Benz 260E, 300CE, 300D, 300E, 300SD, 300SDL, 300SE, 300SEL, 300SL, 300TD, 300TE, 350SD, 350SDL, 400E, 400SE, 400SEL, and 420SEL models
• Supports 3 to 5 speed blower motor operation
• Includes a wiring harness with 5 wires and 3 connector cavities
• Connector gender: male and female with rectangular shape for secure fit
• Terminal type: blade and bullet terminals, 5 terminals total
• Harness length approximately 16-1/2 inches (80 cm) for flexible installation
• Operates on 12-volt electrical systems

Detailed Product Description

The Standard Ignition RU-562 blower motor resistor is a critical component in the HVAC system of various Mercedes-Benz models. It regulates the electrical current to the blower motor, enabling multiple fan speeds ranging from 3 to 5 speeds depending on the vehicle configuration. This resistor features a rectangular connector shape with both male and female connectors, ensuring compatibility and a secure connection within the HVAC system. The included wiring harness, measuring 16-1/2 inches, simplifies installation and maintains proper electrical flow. With 5 blade and bullet terminals, this resistor supports reliable electrical contact and consistent blower motor performance.

Common Applications and Issues Resolved

• Restores blower motor speed control in Mercedes-Benz 300E and 300SE HVAC systems
• Eliminates blower motor failure or inconsistent fan speeds in 400SEL and 420SEL models
• Addresses overheating or electrical resistance issues causing blower motor malfunction
• Resolves intermittent blower operation in 350SD and 300SDL vehicles
• Improves HVAC system reliability in 260E and 300SL Mercedes-Benz models

Installation Notes and Tips

• Ensure vehicle ignition is off and battery disconnected before installation
• Verify connector orientation matches the rectangular male and female connectors
• Check wiring harness length and routing to avoid pinching or damage
• Confirm all 5 terminals are securely connected to prevent electrical faults
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The RU-562 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Mercedes-Benz HVAC systems. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to provide confidence in your replacement part.
