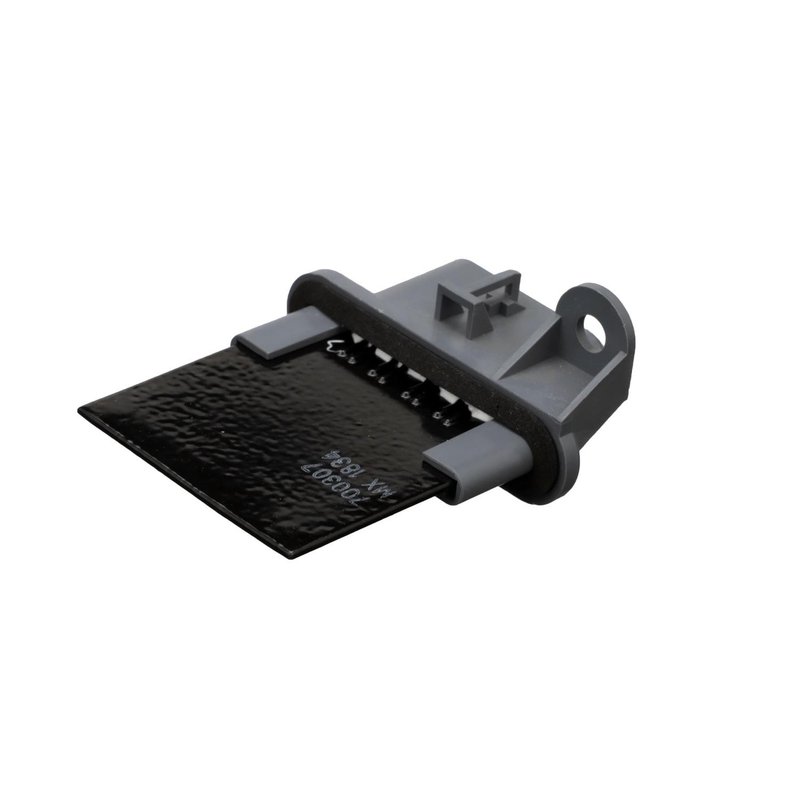

Standard Ignition RU-653 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-653

The Standard Ignition HVAC Blower Motor Resistor RU-653 is designed for reliable climate control in Chevrolet Equinox and Saturn Vue models. This bolt-on resistor ensures proper blower motor speed regulation for efficient heating and cooling performance.

• Compatible with Chevrolet Equinox and Saturn Vue HVAC systems
• Bolt-on attachment method for secure installation
• Female rectangular and oval connector with 4 cavities
• Supports 3-5 blower motor speeds
• Includes mounting bracket(s) but no wiring harness or hardware
• Blade-type male terminals, 4 in quantity

Detailed Product Description

The RU-653 blower motor resistor from Standard Ignition is engineered to regulate the electrical current to the HVAC blower motor, enabling multiple fan speeds between 3 and 5 settings. It features a bolt-on attachment method that provides a secure and straightforward installation process. The resistor includes a female connector with a rectangular and oval shape, designed with 4 connector cavities to ensure proper electrical contact. The terminal configuration consists of 4 male blade terminals, which are standard for this type of component. While the resistor comes with mounting brackets, it does not include additional hardware or wiring harnesses, so existing vehicle components are used during installation.

Compatible Vehicles and Applications

This blower motor resistor is specifically compatible with Chevrolet Equinox and Saturn Vue models, making it a suitable replacement part for HVAC blower motor speed control issues in these vehicles. The part number RU-653 should be referenced to confirm fitment and compatibility with your vehicle's HVAC system.

Common Issues Addressed by RU-653 Blower Motor Resistor

• Inconsistent or limited blower motor speeds in Chevrolet Equinox or Saturn Vue
• Blower motor stuck on a single speed setting
• Intermittent HVAC fan operation or failure to operate at certain speeds
• Overheating or electrical resistance failure in the blower motor circuit
• HVAC blower motor resistor malfunction causing climate control issues

Installation Notes and Tips

Installation of the Standard Ignition RU-653 blower motor resistor requires removal of the old resistor from the HVAC housing. The bolt-on attachment method simplifies securing the new resistor in place. Ensure the female connector aligns properly with the vehicle’s wiring harness, noting the rectangular and oval shape for correct orientation. Since no wiring harness or hardware is included, retain existing components during replacement. Verify all electrical connections are secure before testing the blower motor operation across all speeds.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for durability and performance. The RU-653 blower motor resistor undergoes quality control testing to ensure reliable operation within Chevrolet Equinox and Saturn Vue HVAC systems. Please consult the product packaging or Standard Ignition documentation for specific warranty details related to this part.
