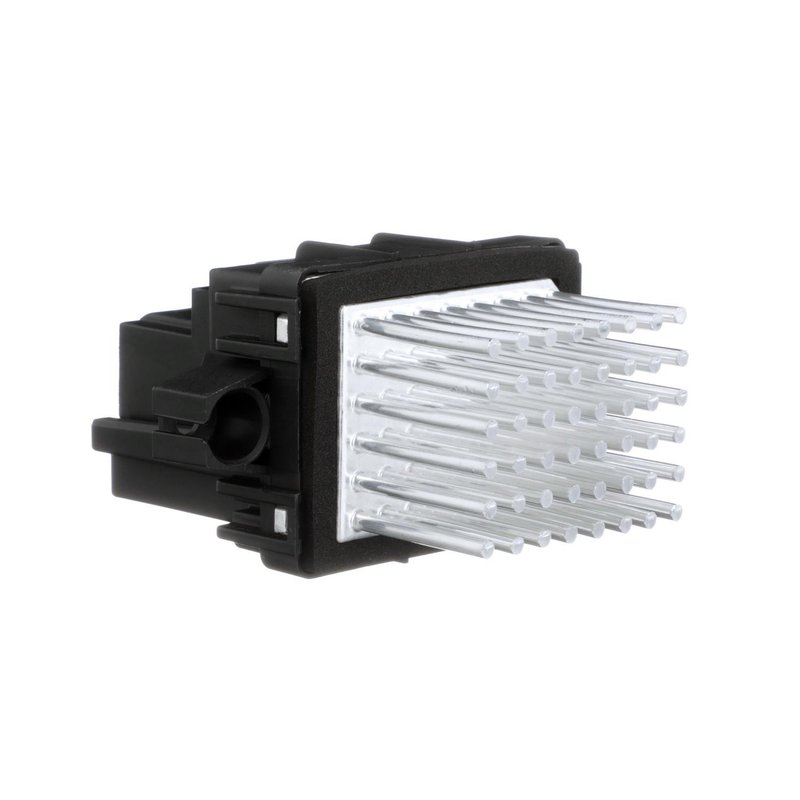

Standard Ignition RU-684 HVAC Blower Motor Resistor - Front or Rear

Overview of Standard Ignition HVAC Blower Motor Resistor RU-684

The Standard Ignition HVAC Blower Motor Resistor RU-684 is designed to regulate the blower motor speeds in select Chrysler, Dodge, Jeep, and Ram vehicles. This bolt-on resistor ensures proper control of your HVAC blower motor, maintaining comfortable cabin airflow across multiple speed settings.

• Compatible with Chrysler 300, Dodge Challenger, Charger, Durango, Magnum, Ram C/V, Jeep Grand Cherokee, Grand Wagoneer, and other models
• Supports 3-5 speed blower motor operation
• Rectangular female connectors with 2 connector quantity and 7 cavities
• Includes mounting bracket(s) for secure installation
• Blade-type male terminals, 7 in quantity
• No wiring harness or additional hardware included

Detailed Product Description

The RU-684 blower motor resistor from Standard Ignition is engineered to provide reliable speed control for HVAC blower motors in various Chrysler, Dodge, Jeep, and Ram vehicles. Featuring a bolt-on attachment method, this resistor is designed for straightforward installation using the included mounting bracket(s). The part includes two rectangular female connectors with seven cavities, accommodating blade-type male terminals for secure electrical connections. It supports multiple blower motor speeds, ranging from three to five, ensuring precise airflow regulation within the vehicle’s HVAC system. This resistor does not come with a wiring harness or additional hardware, so it is intended for direct replacement in compatible vehicles.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Chrysler 300 and Dodge Charger HVAC systems
• Resolves inconsistent or non-functioning blower speeds in Jeep Grand Cherokee and Ram C/V models
• Fixes blower motor resistor failures causing blower to operate only on high speed or not at all
• Eliminates overheating or electrical resistance issues affecting HVAC blower performance
• Addresses intermittent blower motor operation in Dodge Durango and Jeep Grand Wagoneer

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Locate the blower motor resistor within the HVAC housing, typically under the dashboard or glove box
• Remove the old resistor by unbolting and disconnecting the electrical connectors
• Install the RU-684 resistor using the included mounting bracket(s) and bolt it securely
• Reconnect the female connectors to the blade terminals, verifying proper fit and alignment
• Test blower motor speeds after installation to confirm correct operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-684 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in compatible Chrysler, Dodge, Jeep, and Ram vehicles. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor or retailer.
