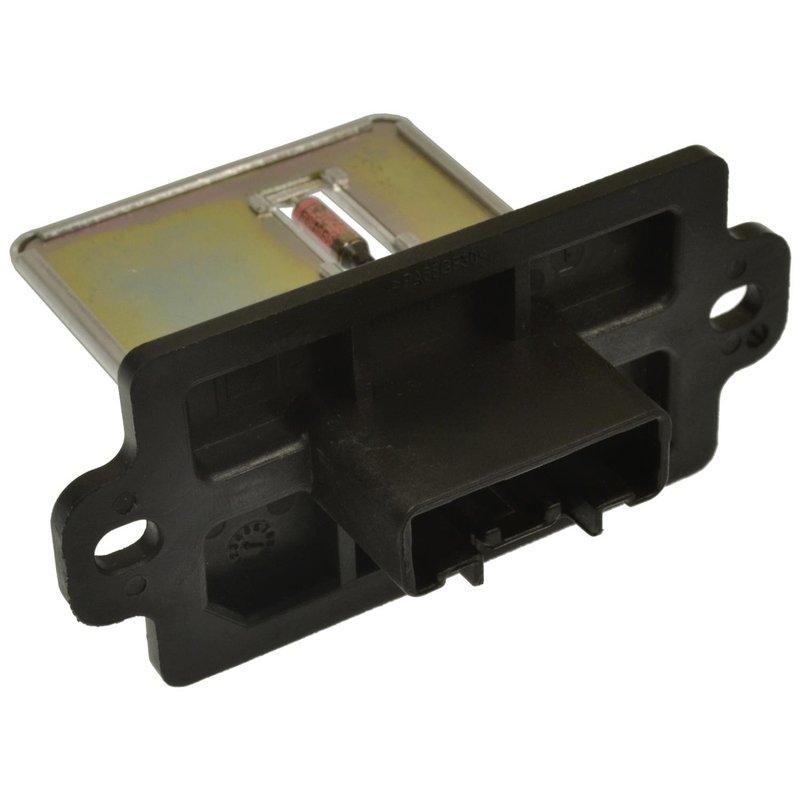

Standard Ignition RU-696 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-696

The Standard Ignition HVAC Blower Motor Resistor RU-696 is designed to regulate the blower motor speeds in select Nissan and Subaru vehicles. This electronic coil resistor supports multiple fan speeds, ensuring precise climate control for your vehicle's HVAC system.

• Compatible with Nissan Crosstrek, Cube, Versa and Subaru Forester, Impreza, WRX STI, XV, and XV Crosstrek models
• Supports 3 to 5 blower motor speeds for versatile climate control
• Electronic coil type resistor for reliable performance
• Black and gray color finish with a rectangular female connector
• Screw attachment method for secure installation
• Includes 4 male blade terminals and 1 connector cavity
• No wiring harness, mounting brackets, or hardware included

Detailed Product Description

The Standard Ignition RU-696 blower motor resistor is engineered to provide consistent and accurate control of blower motor speeds in compatible Nissan and Subaru vehicles. Featuring an electronic coil design, this resistor manages the electrical current to the blower motor, allowing for 3 to 5 distinct fan speeds. The part is finished in black and gray, with a rectangular female connector that mates with the vehicle’s wiring harness. It attaches securely using screws, ensuring a stable fit without the need for additional mounting brackets or hardware. The resistor includes four male blade terminals and a single connector cavity, designed to integrate seamlessly with the vehicle’s HVAC system.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Nissan Crosstrek and Subaru Forester HVAC systems
• Resolves blower motor stuck on one speed or no speed issues
• Fixes intermittent or non-functioning blower motor fan speeds
• Eliminates overheating or electrical resistance problems in the blower motor circuit
• Improves overall HVAC system reliability and passenger comfort

Installation Notes and Tips

• Ensure vehicle compatibility with Nissan Crosstrek, Cube, Versa or Subaru Forester, Impreza, WRX STI, XV, and XV Crosstrek models before installation
• Disconnect the battery before beginning installation to prevent electrical shorts
• Use appropriate screwdrivers to remove and secure the resistor using the screw attachment method
• Verify the connector is fully seated and terminals are clean for optimal electrical contact
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-696 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Nissan and Subaru HVAC systems. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
