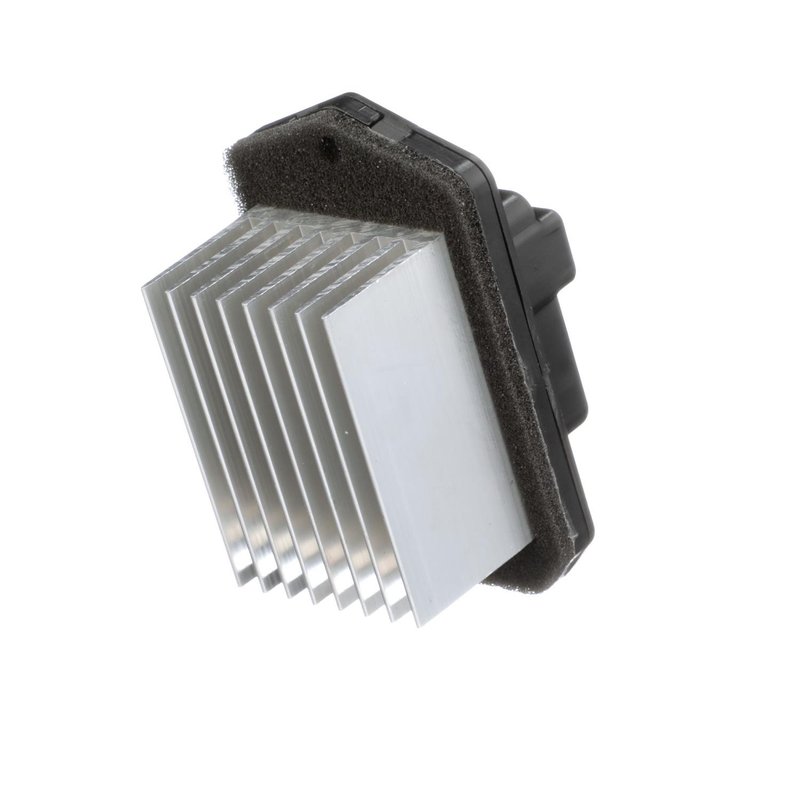

Standard Ignition RU-705 HVAC Blower Motor Resistor - Front

Overview of Standard Ignition HVAC Blower Motor Resistor RU-705

The Standard Ignition HVAC Blower Motor Resistor RU-705 is designed for reliable climate control in select Honda vehicles. Specifically compatible with Honda Odyssey and Pilot models, this resistor ensures proper blower motor speed regulation for your HVAC system.

• Bolt-on attachment method for secure installation
• Electronic coil type for consistent performance
• Female rectangular connector with 4 cavities
• Supports 3-5 blower motor speeds
• Blade-type male terminals, quantity of 4
• No wiring harness or mounting brackets included

Detailed Product Description

This HVAC blower motor resistor from Standard Ignition, part number RU-705, is engineered to regulate the electrical current to the blower motor, allowing multiple fan speeds in your vehicle’s heating and cooling system. The resistor features an electronic coil type and a bolt-on attachment method, ensuring a straightforward and secure fit. It includes a single female rectangular connector with four cavities and four male blade terminals, designed to interface precisely with the vehicle’s wiring harness. This resistor supports between three to five blower motor speeds, accommodating the variable fan speed settings found in Honda Odyssey and Pilot models.

Compatible Vehicles and Applications

This part is compatible with the following Honda vehicles:

• Honda Odyssey
• Honda Pilot

Use the Standard Ignition RU-705 resistor to address HVAC blower motor speed control issues in these models.

Common Issues Addressed by RU-705 HVAC Blower Motor Resistor

• Blower motor stuck on a single speed or not changing speeds
• Intermittent or no airflow from the HVAC system
• HVAC blower motor only working on high speed
• Electrical resistance failure causing inconsistent fan operation
• Overheating or burning smell from the blower motor area

Installation Notes and Tips

The RU-705 blower motor resistor installs using a bolt-on method, requiring no additional wiring harness or mounting brackets. Ensure the vehicle’s ignition is off and disconnect the battery before installation. Carefully unplug the existing resistor’s connector and remove mounting bolts. Align the new resistor and secure it with bolts. Reconnect the electrical connector, verifying the female rectangular connector fits securely. After installation, test the blower motor speeds to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-705 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Honda Odyssey and Pilot HVAC systems. Warranty coverage details should be confirmed with the product documentation or supplier.
