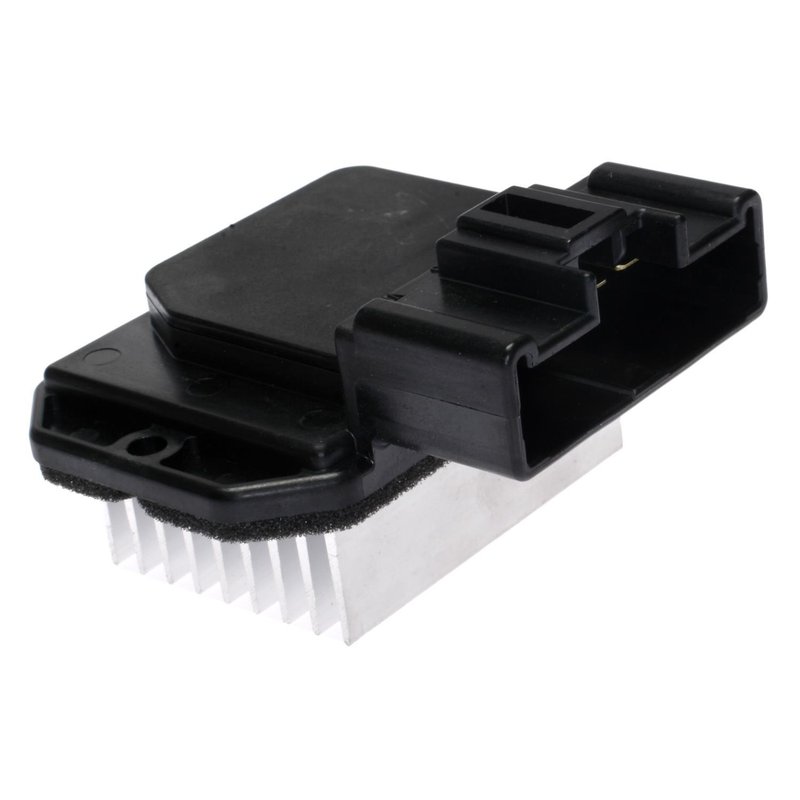

Standard Ignition RU-725 HVAC Blower Motor Resistor - Front

Reliable HVAC Blower Motor Resistor for Select Vehicles

The Standard Ignition RU-725 HVAC blower motor resistor is designed to restore proper blower motor function in various makes and models. Engineered with a clip attachment method and a rectangular female connector, this resistor supports 3-5 speed blower motors, ensuring consistent climate control performance.

• Attachment Method: Clip for secure installation
• Connector Gender: Female with rectangular shape
• Number of Speeds Supported: 3-5 speed blower motors
• Terminal Type: Four male blade terminals
• Hardware and wiring harness not included

Product Details and Specifications

This HVAC blower motor resistor (part number RU-725) features a clip attachment method that allows for straightforward mounting without additional hardware. The connector is female and rectangular, designed to interface with a single cavity connector, providing a reliable electrical connection. It supports blower motors with 3 to 5 speed settings, making it compatible with a range of HVAC systems. The resistor includes four male blade terminals, which are standard for this type of component. Note that this part does not come with a wiring harness or mounting brackets, so existing vehicle components will be used during installation.

Compatible Vehicles and Applications

The Standard Ignition RU-725 is compatible with multiple vehicle makes and models, including Cadillac, Chrysler, Dodge, Jeep, Lexus, Mitsubishi, Ram, Scion, and Toyota. Specific models include the Toyota 4Runner, Avalon, Camry, Sienna, and Solara; Jeep Wrangler and Patriot; Ram 1500, 2500, and 3500; Lexus RX330, RX350, and RX400h; and others such as the Chrysler Sebring, Dodge Caliber, and Mitsubishi Montero. This part is suitable for vehicles requiring a 3-5 speed HVAC blower motor resistor with the specified connector and terminal configuration.

Common Issues Addressed by This Blower Motor Resistor

• Intermittent or non-functioning blower motor speeds
• Blower motor stuck on a single speed
• HVAC system failing to adjust airflow properly
• Overheating or electrical resistance failure in blower motor circuit
• Loss of climate control responsiveness in compatible vehicles

Installation Notes and Tips

Installation of the RU-725 blower motor resistor requires accessing the HVAC blower motor housing, typically located under the dashboard or behind the glove compartment. Since this resistor uses a clip attachment method, ensure the clip is securely fastened to prevent vibration or disconnection. Verify the connector is properly seated with the female rectangular plug and that the four male blade terminals align correctly. Because no wiring harness or mounting brackets are included, retain existing hardware and wiring during replacement. Always disconnect the vehicle battery before installation to avoid electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-725 blower motor resistor undergoes quality control testing to ensure reliable operation within the HVAC system. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the vehicle service manual for further warranty information.
