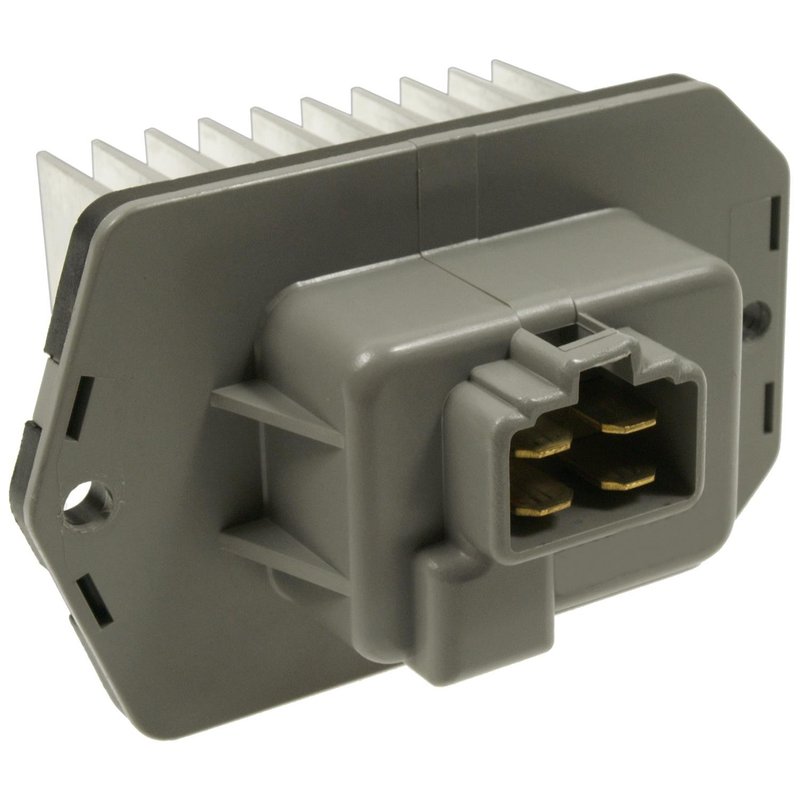

Standard Ignition RU-736 HVAC Blower Motor Resistor - Rear
Reliable HVAC Blower Motor Resistor for Land Rover LR3 and LR4
The Standard Ignition RU-736 HVAC blower motor resistor is designed to restore proper blower motor function in your Land Rover LR3 or LR4. Engineered for precise fitment and reliable performance, this resistor supports multiple blower speeds to maintain optimal climate control.
- Compatible with Land Rover LR3 and LR4 models
- Supports 3-5 speed blower motor operation
- 12-volt electrical rating for standard vehicle systems
- Rectangular female connector with one cavity for secure connection
- Blade-type male terminals, four in total, for reliable electrical contact
- Attachment method: screw mount for stable installation
- No wiring harness or mounting brackets included
Product Details and Specifications
The RU-736 blower motor resistor from Standard Ignition is engineered to meet OEM specifications for HVAC systems in Land Rover LR3 and LR4 vehicles. It features a rectangular female connector with a single cavity, designed to interface with the vehicle’s wiring harness without additional wiring. The resistor supports 3 to 5 blower speeds, allowing for precise control of the HVAC blower motor. Four blade-type male terminals ensure a secure electrical connection, while the screw attachment method provides a firm and stable mounting solution. This part operates at 12 volts, matching the standard electrical system of the vehicle. Note that this resistor does not include hardware or mounting brackets, so existing components should be reused during installation.
Common Applications and Problem Resolution
- Restores blower motor speed control in Land Rover LR3 and LR4 HVAC systems
- Resolves issues with blower motor stuck on one speed or not working at all
- Fixes intermittent blower motor operation caused by resistor failure
- Eliminates overheating or electrical faults related to faulty blower motor resistors
- Improves overall HVAC system reliability and passenger comfort
Installation Notes and Tips
Installation of the Standard Ignition RU-736 blower motor resistor requires removal of the old resistor from the HVAC housing, typically secured by screws. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical shorts. The rectangular female connector should be carefully disconnected and reconnected to avoid damage to terminals. Since no wiring harness or mounting brackets are included, retain existing hardware for reinstallation. Verify that the resistor is securely mounted and that all electrical connections are tight before testing the HVAC blower motor operation.
Quality Assurance and Warranty Information
Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The RU-736 blower motor resistor undergoes rigorous quality control testing to ensure compatibility and function with Land Rover LR3 and LR4 HVAC systems. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use. Refer to the warranty documentation for specific terms and conditions.
| Brand | Standard Ignition |
| Part Number | RU-736 |
| Attachment Method | Screw |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Hardware Included | No |
| Harness Length - cm | No wire |
| Harness Length - inches | No wire |
| Mounting Bracket(s) Included | No |
| Number Of Connector Cavities | 1 |
| Number Of Speeds | 3-5 Speed |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Wiring Harness Included | No |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Land Rover | LR4 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. | ||
| 2015 | Land Rover | LR4 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. | ||
| 2014 | Land Rover | LR4 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. | ||
| 2013 | Land Rover | LR4 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. | ||
| 2012 | Land Rover | LR4 | 5.0L | V8 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. |
| 2011 | Land Rover | LR4 | 5.0L | V8 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. |
| 2010 | Land Rover | LR4 | 5.0L | V8 | Rear | Rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch. |
| 2009 | Land Rover | LR3 | Rear | |||
| 2008 | Land Rover | LR3 | Rear |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
