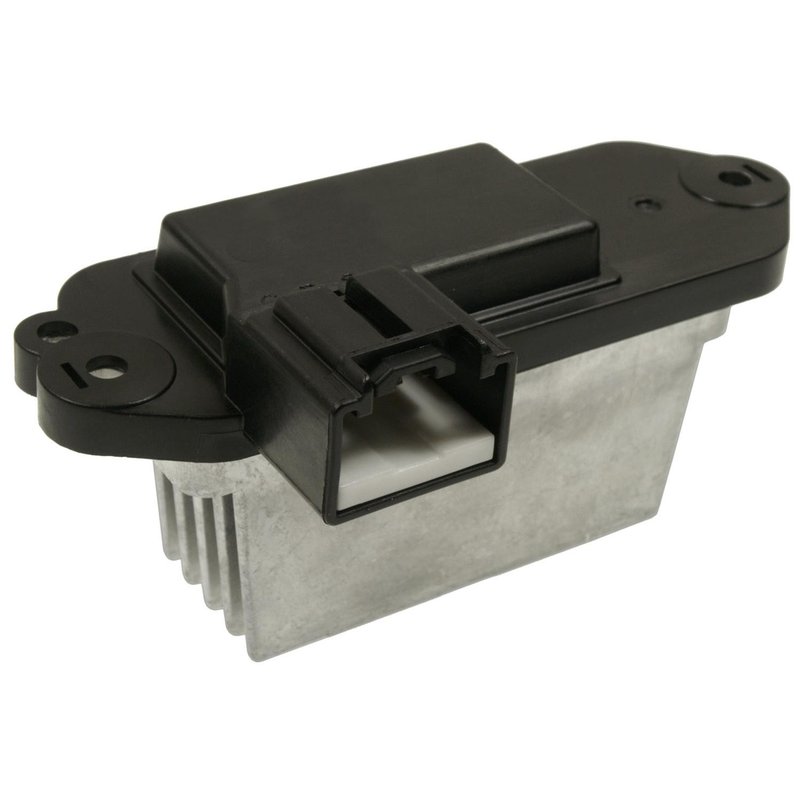

Standard Ignition RU-742 HVAC Blower Motor Resistor - Rear

Overview of Standard Ignition HVAC Blower Motor Resistor RU-742

The Standard Ignition HVAC Blower Motor Resistor RU-742 is designed specifically for Mazda vehicles, providing reliable control over your HVAC blower motor speeds. This resistor supports 3 to 5 speed settings, ensuring precise airflow regulation for your Mazda's heating and cooling system.

• Attachment method: Screw mount for secure installation
• Connector gender: Female with a rectangular shape
• Number of connector cavities: 1
• Terminal type: 3 male blade terminals
• Voltage rating: 12 volts
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-742 blower motor resistor by Standard Ignition is engineered to meet the electrical and mechanical specifications required by Mazda models. Its screw attachment method ensures a firm and stable fit within the HVAC system. The resistor features a female rectangular connector with a single cavity, designed to interface with the vehicle’s wiring harness without included wires or brackets. The three male blade terminals provide reliable electrical contact, supporting 12-volt systems common in automotive HVAC applications. This resistor accommodates blower motors with 3 to 5 speed settings, allowing for smooth and consistent fan speed control.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Mazda vehicles
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent or non-functioning HVAC blower fan
• Addresses overheating or electrical resistance failures in blower circuits
• Improves overall HVAC system performance and comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Remove the old resistor by unscrewing the mounting screws
• Verify connector orientation matches the female rectangular shape
• Do not attempt to splice or extend wiring; this resistor has no harness included
• Check blower motor operation after installation to confirm proper speed control

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-742 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Mazda HVAC systems. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
