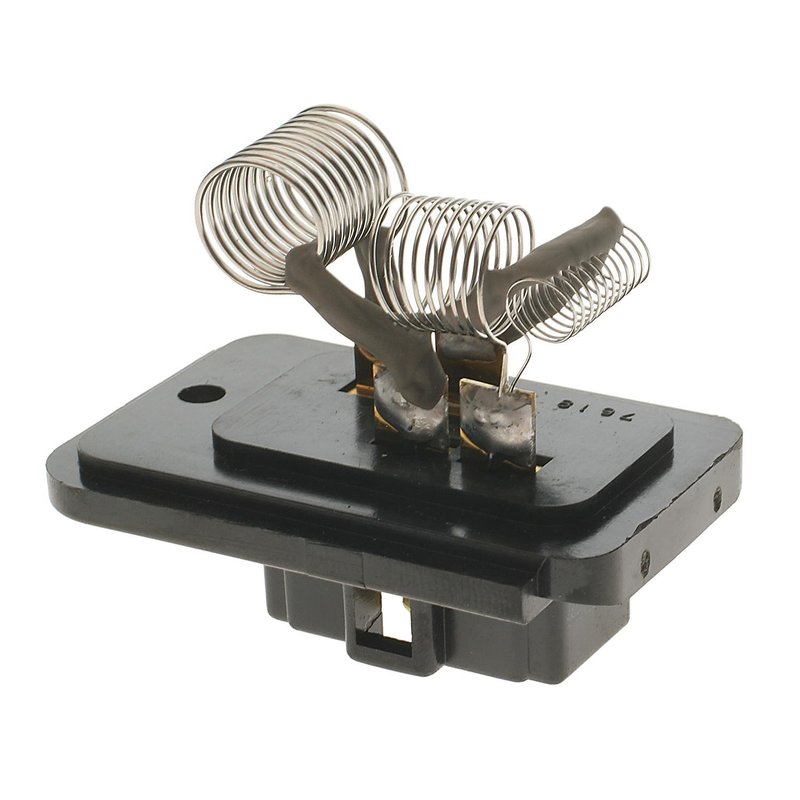

Standard Ignition RU-77 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Lexus and Toyota Vehicles

The Standard Ignition RU-77 HVAC blower motor resistor is designed to restore proper blower motor function in select Lexus and Toyota models. Engineered for compatibility with vehicles like the Toyota Camry, Celica, and Lexus ES250, this resistor ensures consistent climate control performance.

• Attachment Method: Screw for secure installation
• Connector Gender: Female with rectangular shape
• Number of Speeds Supported: 3-5 speed blower motors
• Terminal Type: 4 male blade terminals
• Voltage: 12 volts, suitable for standard automotive electrical systems
• No wiring harness or mounting brackets included

Product Details and Specifications

The RU-77 blower motor resistor from Standard Ignition is built to meet OEM specifications for HVAC systems in Lexus and Toyota vehicles. It features a screw attachment method for a firm and reliable fit. The resistor connects via a female rectangular connector with one cavity, accommodating 4 male blade terminals. Designed for 12-volt systems, it supports blower motors with 3 to 5 speed settings, ensuring smooth fan speed control. This part does not include a wiring harness or mounting brackets, so it is intended for direct replacement in compatible vehicles.

Compatible Vehicles and Applications

This HVAC blower motor resistor is compatible with the following makes and models:

• Toyota Camry
• Toyota Celica
• Lexus ES250

Use the RU-77 resistor to address blower motor speed issues and restore proper HVAC function in these vehicles.

Common Issues Addressed by the RU-77 Resistor

• Blower motor only works on certain speeds or not at all
• Inconsistent fan speed control in HVAC system
• Intermittent blower motor operation
• Complete loss of blower motor function
• Electrical resistance failure causing HVAC malfunctions

Installation Notes and Tips

Installation requires removing the old blower motor resistor and securing the RU-77 with screws. Ensure the female rectangular connector aligns properly with the vehicle’s wiring harness. Since no wiring harness or mounting brackets are included, reuse existing hardware and connectors. Verify the blower motor speed settings after installation to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for durability and performance. The RU-77 blower motor resistor is tested for electrical reliability and fitment accuracy. Please consult the product packaging or manufacturer documentation for specific warranty details.
