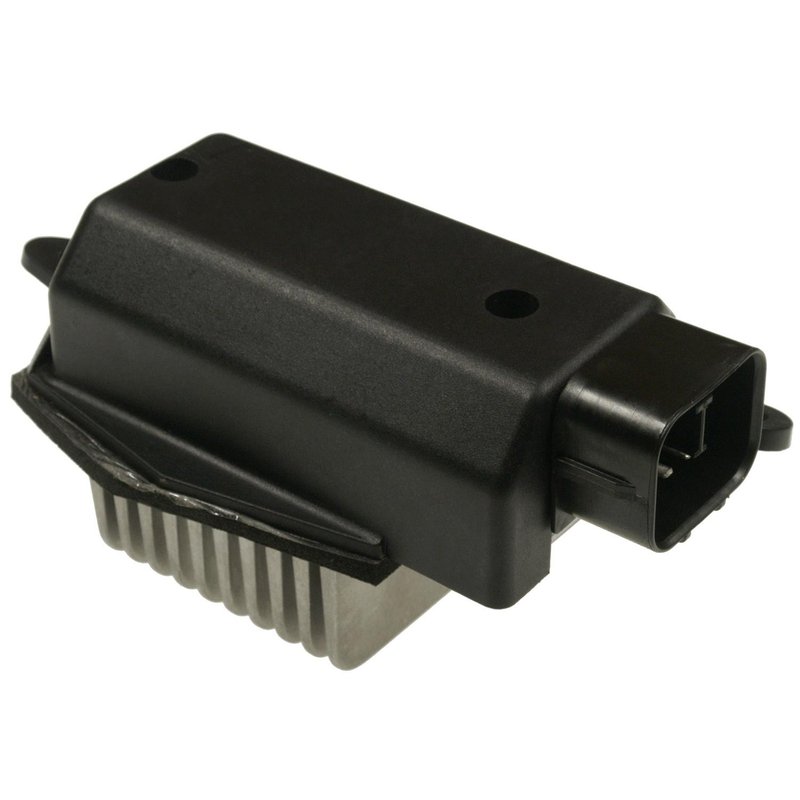

Standard Ignition RU-775 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-775

The Standard Ignition HVAC Blower Motor Resistor RU-775 is designed to regulate the blower motor speeds in select Ford trucks. Engineered for reliable performance, this resistor is compatible with Ford F-250, F-250 Super Duty, F-350, and F-350 Super Duty models, ensuring proper climate control functionality.

• Attachment method: Screw for secure installation
• Connector gender: Female with rectangular shape
• Number of speeds supported: 3 to 5 speed settings
• Terminal type: 5 male blade terminals
• Wire quantity: 5 wires, no wiring harness included
• Hardware and mounting brackets are not included

Detailed Product Description

The RU-775 blower motor resistor from Standard Ignition is a critical component in the HVAC system of Ford F-250 and F-350 Super Duty trucks. It controls the electrical current to the blower motor, allowing for multiple fan speed settings between three and five speeds. The resistor features a screw attachment method for a secure fit and a female rectangular connector designed to match factory wiring harnesses. With five male blade terminals and five wires, this resistor integrates seamlessly without the need for additional wiring harnesses or mounting brackets.

Compatible Vehicles and Applications

This HVAC blower motor resistor is specifically compatible with the following Ford models:

• Ford F-250
• Ford F-250 Super Duty
• Ford F-350
• Ford F-350 Super Duty

It is intended for use in HVAC systems requiring a 3-5 speed blower motor resistor to maintain proper fan speed control and climate comfort.

Common Issues Resolved by RU-775

• Inconsistent or non-functioning blower motor speeds
• Blower fan stuck on one speed setting
• Intermittent HVAC blower operation
• Loss of blower motor control in Ford F-250 and F-350 trucks
• Electrical resistance failure causing HVAC system malfunction

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation
• Use the screw attachment method to secure the resistor firmly
• Verify connector orientation matches the female rectangular connector on the resistor
• Check for corrosion or damage on terminals before installation
• Replacement does not include hardware or mounting brackets; reuse existing components if possible

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-775 blower motor resistor undergoes rigorous quality control to ensure durability and reliable operation in Ford F-250 and F-350 Super Duty HVAC systems. Warranty coverage details should be confirmed with the product documentation or supplier.
