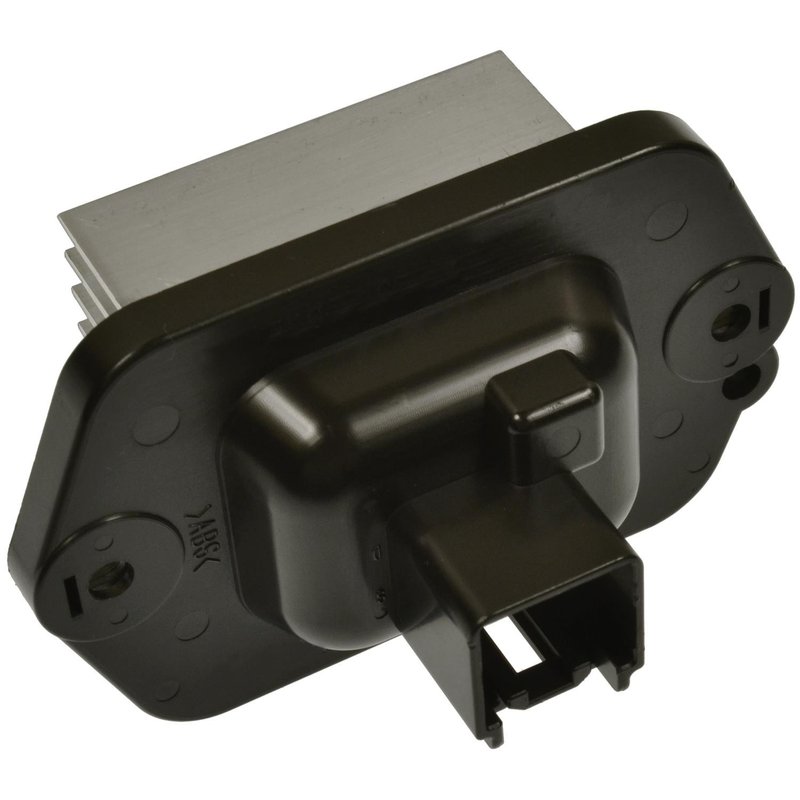

Standard Ignition RU1002 HVAC Blower Motor Resistor
| Brand | Standard Ignition RU1002 |
|---|---|
| Attachment Method | Bolt on |
| Bulb Included | No |
| Color/Finish | Black , gray |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Gaskets Included | Not included |
| Hardware Included | No |
| Harness Length - cm | No wire |
| Harness Length - inches | No wire |
| Housing Material | Plastic, metal |
| Instructions Included | No |
| Mounting Bracket(s) Included | Yes |
| Number Of Connector Cavities | 3 |
| Number Of Speeds | 3-5 speed |
| Number of Switch Positions | 3 |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Wire Quantity | 3 |
| Wiring Harness Included | No |
| Fits | Mazda · 4 vehicles |
Bolt-on installation. Mounts securely with a simple attachment method.
3-5 speed control. Supports multiple blower speeds for flexible airflow.
Bracket included. Comes with a mounting bracket for easier setup.
Cross-references Standard Ignition RU1002, BR901 and GJ6E61B15 for the same application. See all 4.
HVAC Blower Motor Resistor for Mazda CX-7 and Mazda 6
Standard Ignition RU1002 is an HVAC blower motor resistor built for direct replacement in select Mazda applications. It restores blower speed control by regulating current to the cabin fan, helping maintain consistent airflow through the heating and air conditioning system.
Compatible with 2006-2007 Mazda 6, 2007 Mazda CX-7, and 2008 Mazda CX-7 built to 5/1/08, this part number RU1002 is a fitment-specific solution for vehicles showing blower speed issues.
Key Features
- Bolt-on attachment method for secure mounting
- 3-5 speed resistor design with 3 switch positions
- Female square connector with 3 connector cavities
- 3 male blade terminals for electrical connection
- Plastic and metal housing in black and gray finish
- Mounting bracket(s) included
Detailed Description
Standard Ignition RU1002 is an HVAC blower motor resistor used to control fan speed in the cabin ventilation system. It is built with a bolt-on design, a square female connector, and blade-style terminals for a direct electrical interface. The plastic and metal housing is engineered for under-dash HVAC service locations where heat and vibration are common. This part cross-references Bosch (e.g., BR901) for the same application.
For Mazda 6 and Mazda CX-7 service work, RU1002 is the correct replacement when the blower operates only on certain speeds or loses lower fan settings. Use the confirmed vehicle fitment to match the part before installation.
Common Issues This Part Can Help Resolve
- Blower fan works on only one or a few speeds
- Cabin airflow drops out at lower fan settings
- HVAC fan speed control becomes intermittent
- Resistor failure causes loss of normal blower operation
- Heating and air conditioning output feels inconsistent
Installation Notes and Tips
Install RU1002 at the blower motor resistor location and verify the connector, terminal layout, and mounting points before final assembly. Inspect the blower motor and related wiring for heat damage or corrosion, since those conditions can contribute to repeat failure. Confirm vehicle application carefully: Fits 2006-2007 Mazda 6, N/A; Fits 2007 Mazda CX-7, N/A; Fits 2008 Mazda CX-7, N/A, to 5/1/08.
Quality Assurance
Standard Ignition supplies OE-style replacement electrical components for service and repair applications. RU1002 is built to match the listed fitment and connector configuration for Mazda HVAC repair work.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Mazda | CX-7 | N/A | To 5/1/08 |
| 2007 | Mazda | 6 | N/A | — |
| 2007 | Mazda | CX-7 | N/A | — |
| 2006 | Mazda | 6 | N/A | — |
