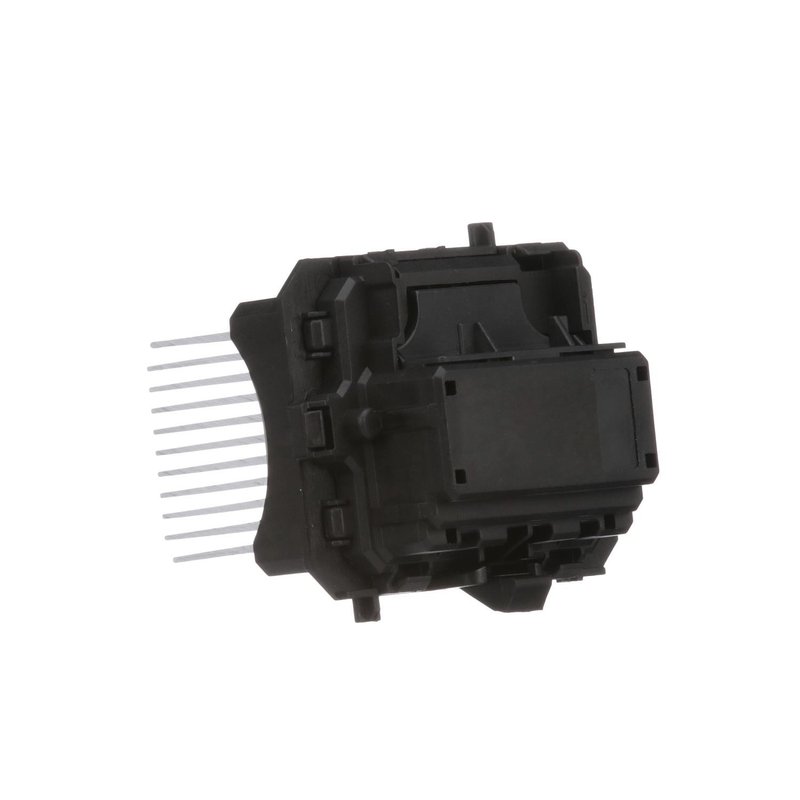

Standard Ignition RU1006 HVAC Blower Motor Resistor
| Brand | Standard Ignition RU1006 |
|---|---|
| Color/Finish | Black, silver |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gaskets Included | No |
| Hardware Included | No |
| Harness Length - cm | No wire |
| Harness Length - inches | No wire |
| Housing Material | Plastic, metal |
| Number Of Connector Cavities | 1 |
| Number Of Speeds | 3-5 speed |
| Number of Switch Positions | 3 |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Toyota · 5 vehicles |
3-5 speed control. Provides precise blower motor resistor operation across multiple fan settings.
Plastic and metal housing. Combines durable materials for dependable HVAC performance.
Rectangular connector. Uses a single male blade connection for straightforward installation.
Cross-references Standard Ignition RU1006, 87138F4010 and BR905 for the same application. See all 4.
HVAC Blower Motor Resistor for Toyota C-HR
Standard Ignition RU1006 is an HVAC blower motor resistor for select Toyota C-HR models from 2018-2022. It regulates blower motor speed so the cabin fan can operate through the available speed settings with consistent control.
Key Features
- Black and silver housing with plastic and metal construction
- Male connector with 1 rectangular connector cavity
- 3 blade terminals for secure electrical connection
- Supports 3-5 speed blower motor systems
- 3 switch positions for HVAC fan control applications
- No wiring harness, gasket, or hardware included
Detailed Description
Standard Ignition RU1006 is an HVAC blower motor resistor built for Toyota C-HR heating and air conditioning systems. It is used in blower circuits that rely on resistor-based fan speed control, helping maintain proper operation across multiple fan settings. This part cross-references 87138F4010 and BR905 for the same application. For buyers searching for a Toyota C-HR blower motor resistor, RU1006 provides a direct-fit option for 2018, 2019, 2020, 2021, and 2022 Toyota C-HR models.
What It Helps Fix
- Blower fan stuck on one speed
- Loss of one or more cabin fan speeds
- Intermittent HVAC fan operation
- No airflow from the cabin blower at selected settings
- Electrical resistance issues in the blower control circuit
Installation Notes and Tips
Verify connector style, terminal count, and blower speed configuration before installation. Inspect the blower motor connector and surrounding HVAC wiring for heat damage or corrosion, since resistor failure can occur alongside damaged terminals. Confirm fitment for 2018-2022 Toyota C-HR, N/A, using the vehicle’s HVAC configuration and OE reference numbers RU1006.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive HVAC systems, and RU1006 is built to match the listed connector, terminal, and speed-control requirements for the confirmed Toyota C-HR applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Toyota | C-HR | N/A | — |
| 2021 | Toyota | C-HR | N/A | — |
| 2020 | Toyota | C-HR | N/A | — |
| 2019 | Toyota | C-HR | N/A | — |
| 2018 | Toyota | C-HR | N/A | — |
