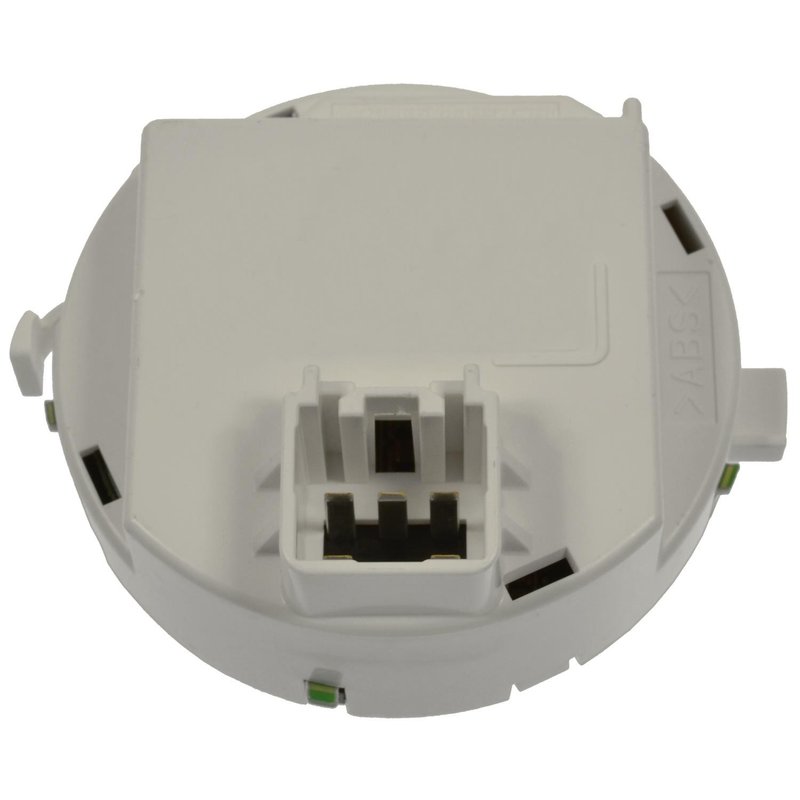

Standard Ignition RU977 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU977

The Standard Ignition HVAC Blower Motor Resistor RU977 is designed specifically for Mazda 6 models, providing reliable control over your vehicle's HVAC blower speeds. This component ensures proper fan speed regulation for optimal climate control performance.

• Attachment Method: Push-on for secure and straightforward installation
• Color/Finish: Black, gray, and white for easy identification
• Connector Gender: Female with a single square-shaped connector
• Housing Material: Durable plastic and metal construction
• Number of Switch Positions: 3 for multiple blower speed settings
• Terminal Type: Five male blade terminals for reliable electrical connections

Detailed Product Description

The RU977 blower motor resistor from Standard Ignition is engineered to regulate the blower motor speeds in the HVAC system of Mazda 6 vehicles. Featuring a push-on attachment method, this resistor allows for a secure fit without the need for additional mounting brackets, which are not included. The housing combines plastic and metal materials to provide durability and heat resistance, essential for consistent performance under varying operating conditions. The single female connector with a square shape and one cavity ensures compatibility with the vehicle's wiring harness. With three switch positions, this resistor controls multiple fan speeds, maintaining comfort inside the cabin.

Common Applications and Problem Resolution

This HVAC blower motor resistor is used to control the speed of the blower motor in Mazda 6 HVAC systems. It addresses several common issues, including:

• Blower motor only working on one speed or not changing speeds
• Intermittent or no airflow from the HVAC vents
• Overheating or failure of the blower motor resistor
• Inconsistent fan speed control in the Mazda 6 climate system

Installation Notes and Tips

Installation of the Standard Ignition RU977 blower motor resistor is straightforward due to its push-on attachment method. Ensure the vehicle is powered off before beginning installation. Disconnect the negative battery terminal to prevent electrical shorts. Remove the old resistor carefully, noting the orientation of the connector and terminals. Connect the new resistor’s female connector securely to the vehicle’s wiring harness, verifying the square connector shape aligns properly. Since no mounting brackets or instructions are included, refer to the Mazda 6 service manual for detailed removal and installation procedures.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and fitment for Mazda 6 vehicles. The RU977 blower motor resistor undergoes rigorous quality control testing to maintain durability and electrical integrity. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties on their HVAC components. Consult the product packaging or manufacturer’s website for exact warranty terms.
