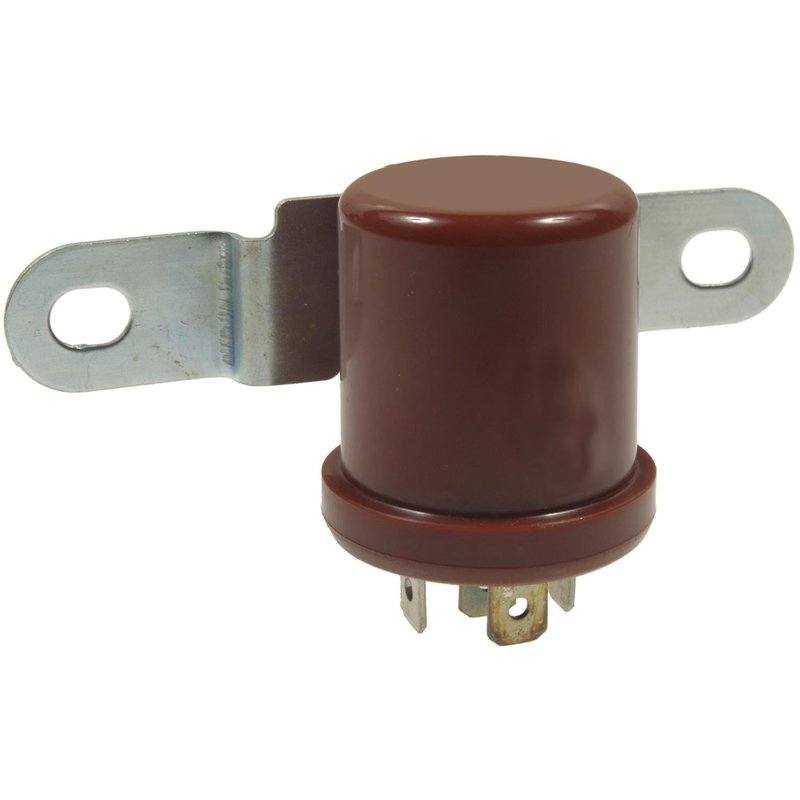

Standard Ignition RY-1022 Engine Cooling Fan Motor Relay
OE Quality 60-Day Returns
Standard Ignition

Standard Ignition RY-1022 Engine Cooling Fan Motor Relay

Brand Standard Ignition RY-1022
Connector Gender Female
Connector Shape Round
Contents Relay
Continuous Duty No
Functions Relay
Mounting Bracket(s) Included Yes
Terminal Gender Male
Terminal Type Blade
Voltage 12
Fits Jaguar · 6 vehicles

Relay function. Controls electrical switching for cooling fan motor circuits.

12-volt design. Built for standard automotive electrical systems.

Blade terminals. Five-terminal layout with a round connector for secure hookup.

Cross-references Standard Ignition RY-1022, 5438130 and AR6528 for the same application. See all 4.

$157.35Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $157.35
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cooling Fan Motor Relay options

Engine Cooling Fan Relay for Jaguar X-Type

Standard Ignition RY-1022 is an engine cooling fan motor relay built for 12-volt electrical systems. It is a direct-fit service part for 2002-2007 Jaguar X-Type applications and uses a 5-blade terminal layout with a round female connector and mounting bracket included.

Key Features

  • Engine cooling fan motor relay for thermal management circuit control
  • Fits 2002-2007 Jaguar X-Type, N/A
  • 12-volt relay with 5 male blade terminals
  • Round 1-connector design with female connector gender
  • Mounting bracket included for secure installation
  • Standard Ignition RY-1022 for service replacement applications

Detailed Description

Standard Ignition RY-1022 is an engine cooling fan motor relay used to switch power in the cooling fan circuit on compatible Jaguar X-Type models. The relay’s 5-terminal blade configuration, round connector shape, and included mounting bracket support a straightforward replacement of the original electrical control component. This part cross-references 5438130 and AR6528 for the same application. For buyers searching for a Jaguar X-Type cooling fan relay, engine fan relay, or Standard Ignition RY-1022 replacement, this part matches the listed 2002-2007 fitment.

What It Helps Fix

  • Cooling fan not turning on when engine temperature rises
  • Intermittent fan operation caused by relay contact wear
  • Overheating concerns related to fan circuit switching failure
  • Electrical relay faults in the engine cooling system
  • Replacement needs for a worn or damaged Jaguar X-Type fan relay

Installation Notes and Tips

Verify the connector shape, terminal count, and mounting style against the original relay before installation. Confirm the vehicle uses a 12-volt system and match the relay location to the existing cooling fan circuit. For 2002-2007 Jaguar X-Type service work, compare the part number RY-1022 and the OE-style connector layout to ensure proper replacement.

Quality Assurance

Standard Ignition supplies electrical replacement parts for automotive service applications, and this relay is built to match the listed fitment and terminal configuration for the Jaguar X-Type cooling fan circuit.

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2007JaguarX-TypeN/A—
2006JaguarX-TypeN/A—
2005JaguarX-TypeN/A—
2004JaguarX-TypeN/A—
2003JaguarX-TypeN/A—
2002JaguarX-TypeN/A—
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — RY-10225438130AR6528R6528
