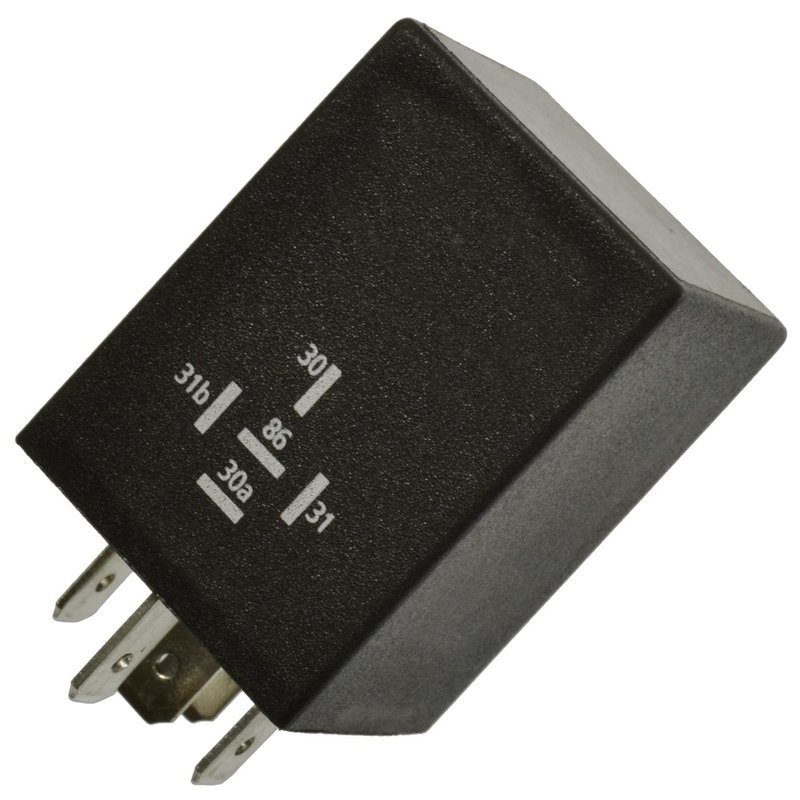

Standard Ignition RY-1056 ABS Relay

Reliable ABS Relay for Jaguar S-Type Vehicles

The Standard Ignition RY-1056 ABS relay is designed specifically for Jaguar S-Type models, ensuring precise electrical control within the anti-lock braking system. This relay features a rectangular connector shape and five male blade terminals, optimized for seamless integration with your vehicle's brake system.

• Compatible with Jaguar S-Type models
• Standard Ignition part number RY-1056
• Rectangular connector shape for secure fit
• Five male blade terminals for reliable connections
• Operates at 12 volts
• Continuous duty: No
• Mounting bracket not included

Technical Details and Specifications

The RY-1056 ABS relay from Standard Ignition is engineered to function as a critical component in the Jaguar S-Type's anti-lock braking system. It operates at 12 volts and includes five male blade terminals arranged in a rectangular connector shape, facilitating straightforward installation and dependable electrical contact. This relay is not rated for continuous duty, which aligns with typical ABS relay operational cycles. While the mounting bracket is not included, the relay's design supports direct replacement in compatible vehicles.

Applications and Problem Resolution

This ABS relay is used to control the electrical signals within the anti-lock braking system of Jaguar S-Type vehicles. It helps manage the ABS pump and modulator functions, contributing to vehicle safety and braking performance.

• Resolves intermittent ABS warning lights
• Addresses ABS pump failure issues
• Fixes relay-related brake system malfunctions
• Prevents loss of ABS functionality during driving
• Eliminates electrical relay faults affecting braking

Installation Notes and Tips

When installing the Standard Ignition RY-1056 ABS relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. Verify the relay's connector shape and terminal configuration match the original part. Since the mounting bracket is not included, reuse the existing bracket or secure the relay appropriately. Confirm all blade terminals are fully seated to maintain reliable electrical contact.

Quality Assurance and Warranty Information

Standard Ignition parts undergo rigorous testing to meet OEM standards for fit, form, and function. The RY-1056 ABS relay is manufactured to provide consistent performance in Jaguar S-Type vehicles. Warranty coverage details should be confirmed with the point of purchase or Standard Ignition documentation.
