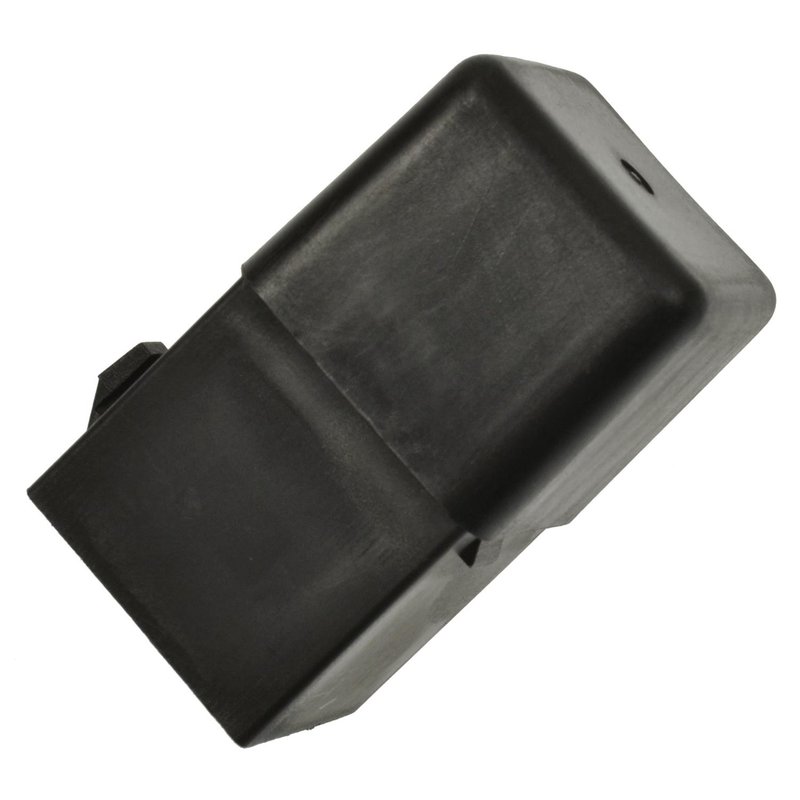

Standard Ignition RY-111 Engine Control Module Relay

Reliable Engine Control Module Relay for Chrysler, Ford, and Mercury Vehicles

The Standard Ignition RY-111 Engine Control Module (ECM) Relay is designed to provide dependable electrical control for various engine management systems. Compatible with multiple Chrysler, Ford, and Mercury models, this relay ensures consistent performance in critical engine functions.

• 15 Ampere rating for stable current handling
• Single female square connector for secure connection
• Four male blade terminals for reliable electrical contact
• 12 Volt operation suitable for standard automotive electrical systems
• Engine Control Module (ECM) relay function for engine management

Technical Details and Specifications

This ECM relay features a 15 amp continuous duty rating, designed to handle the electrical load required by engine control modules in vehicles such as the Ford F-150, Mercury Cougar, and Chrysler Dynasty. The relay includes one female square-shaped connector and four male blade terminals, ensuring compatibility with factory wiring harnesses. Operating at 12 volts, it integrates seamlessly into the vehicle’s electrical system without requiring additional modifications. The relay does not include mounting brackets, so installation should consider existing mounting points.

Compatible Vehicles and Applications

This Standard Ignition RY-111 relay is compatible with a range of Chrysler, Ford, and Mercury models, including but not limited to:

• Ford F-150, F-250, F-350, Bronco II, Ranger, Tempo
• Mercury Cougar, Lynx, Marquis
• Chrysler Aerostar, Dynasty, E-150 Econoline series, E-250 Econoline series, E-350 Econoline series, Escort, Thunderbird, Capri, Topaz

Common Issues Addressed by the ECM Relay

• Intermittent engine starting problems
• Engine control module power interruptions
• Electrical relay failure causing engine stalling
• Faulty relay leading to inconsistent engine performance
• Replacement for worn or damaged ECM relays in specified vehicles

Installation Notes and Tips

When installing the Standard Ignition RY-111 ECM relay, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the relay’s connector orientation matches the factory wiring harness, noting the female square connector and blade terminal configuration. Since mounting brackets are not included, use the existing relay mounting points or secure the relay appropriately to avoid vibration damage. Testing the relay function before final installation is recommended to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The RY-111 ECM relay undergoes quality control testing to ensure consistent electrical function. Warranty coverage details should be confirmed with the product documentation or supplier, typically offering protection against manufacturing defects.
