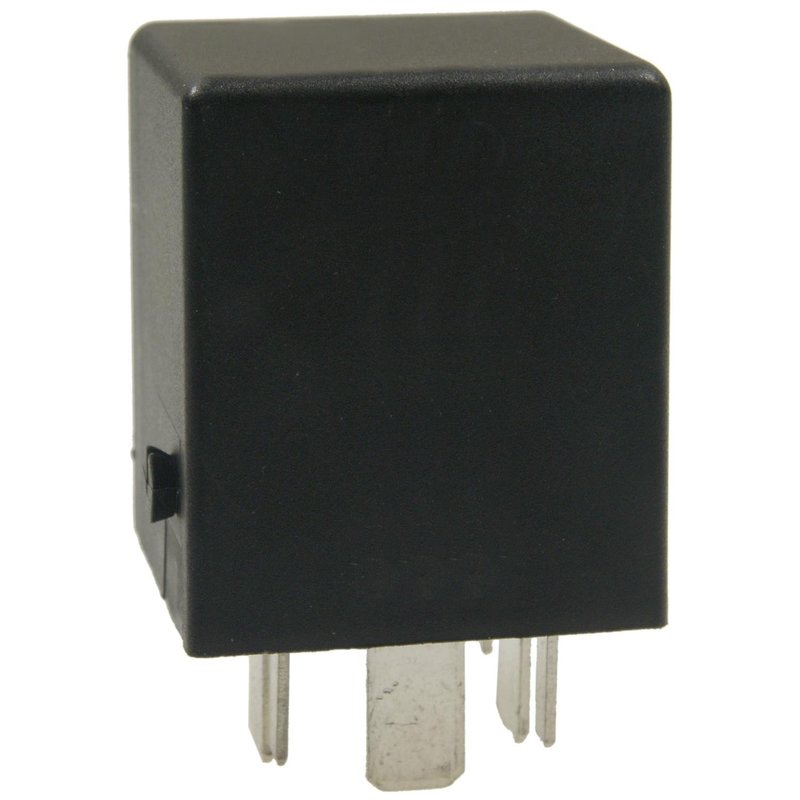

Standard Ignition RY-1110 Seat Relay

Seat Relay for Heated Seat Systems

Standard Ignition RY-1110 is a 12-volt seat relay built for heated seat circuits in select Chrysler, Dodge, and Mercedes-Benz applications. It uses a 7-blade male terminal layout with a square connector shape and a 40 amp amperage rating for direct replacement service.

Key Features

• Functions in heated seat relay circuits
• 12-volt electrical design
• 40 A amperage rating
• 7 terminal male blade configuration
• Square connector shape with no connector included
• No mounting hardware or bracket included
• Standard Ignition RY-1110 replacement part

Detailed Description

This Standard Ignition seat relay is specified for heated seats and is used in vehicles such as the Chrysler Crossfire, Dodge Grand Caravan, Dodge Caravan, Dodge Stratus, and Mercedes-Benz SLK230, SLK320, SLK32 AMG, C230, C280, and C43 AMG. The RY-1110 is built with a 7-terminal blade interface and 40 amp rating to match the electrical demands of the original heated seat relay circuit. This part cross-references Four Seasons 20692 for the same application.

Common Issues It May Resolve

• Heated seats that do not turn on
• Intermittent seat heater operation
• No power delivery to the seat heating circuit
• Relay-related clicking or failure in the heated seat system
• Electrical interruption in the seat comfort control circuit

Installation Notes and Tips

Verify the terminal count, blade style, and square connector shape before installation. Confirm the vehicle’s heated seat relay location and compare the original part number to Standard Ignition RY-1110 for proper application matching. This part is listed for 2004-2008 Chrysler Crossfire; 2001-2007 Dodge Grand Caravan; 2001-2006 Dodge Caravan; 2001-2006 Dodge Stratus; 2001-2004 Mercedes-Benz SLK230; 2002-2004 Mercedes-Benz SLK32 AMG; 2001-2004 Mercedes-Benz SLK320; 1998-2000 Chrysler Town & Country; 1997-2000 Mercedes-Benz C230; 1998-2000 Mercedes-Benz C280; and 1998-2000 Mercedes-Benz C43 AMG.

Quality Assurance

Standard Ignition RY-1110 is an OE-style electrical replacement part identified by established interchange references, including 5104857AA, 0025422219, AR6616, and R6616. It is built for direct service in heated seat relay applications across the listed Chrysler, Dodge, and Mercedes-Benz platforms.
