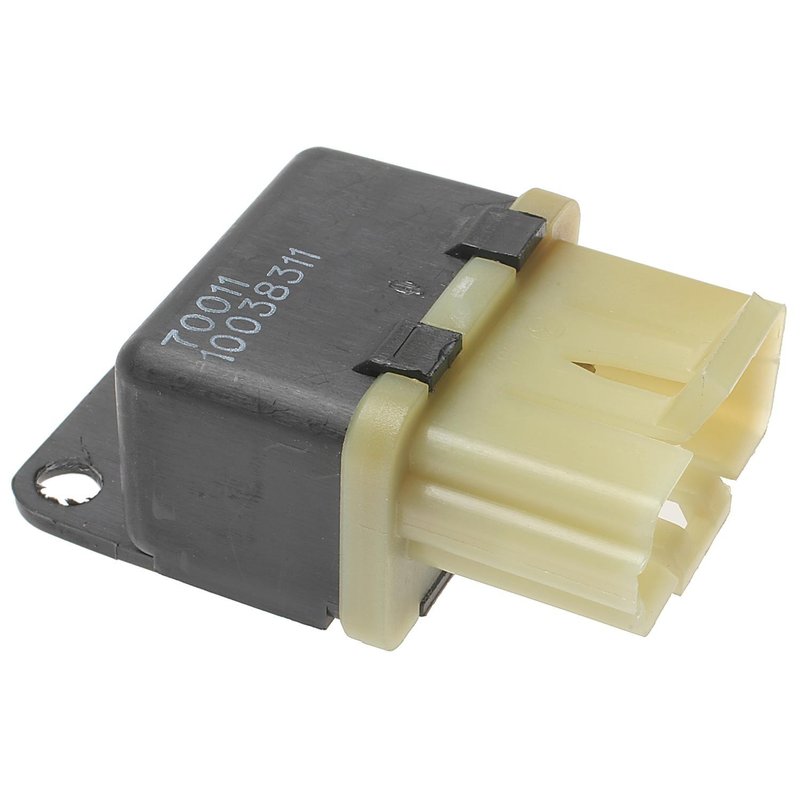

Standard Ignition RY-113 Instrument Panel Wiring Harness Relay

Reliable Instrument Panel Wiring Harness Relay for GM Vehicles

The Standard Ignition RY-113 Instrument Panel Wiring Harness Relay is designed to provide dependable electrical performance for select Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models. Engineered to meet OEM specifications, this 12-volt relay supports critical functions such as the coolant fan relay, ensuring your vehicle's electrical system operates smoothly.

• 15 amp amperage rating for consistent electrical load handling
• Female rectangular connector with one connector quantity for secure fit
• Includes mounting bracket(s) for easy installation
• Four male blade terminals for reliable electrical connections
• Designed for 12-volt systems, compatible with various GM models

Product Features and Specifications

The RY-113 relay features a female rectangular connector and four male blade terminals, providing a secure and stable connection within the instrument panel wiring harness. With a 15 amp rating, it is suitable for continuous electrical loads related to the coolant fan relay function. Although not rated for continuous duty, it is engineered to handle intermittent operation demands typical in automotive cooling systems. The included mounting bracket simplifies installation and ensures the relay remains firmly in place during vehicle operation.

Compatible Vehicles and Applications

This relay is compatible with a range of General Motors vehicles, including Buick models like the Century and Skylark, Cadillac Calais, Chevrolet Camaro and Corvette, Oldsmobile Cutlass Calais and Firenza, as well as Pontiac Firebird and Grand Am. It is specifically designed to replace the instrument panel wiring harness relay in these vehicles, supporting the coolant fan relay function to maintain optimal engine temperature.

• Resolves intermittent or non-functioning coolant fan issues
• Replaces faulty or damaged instrument panel wiring harness relays
• Eliminates electrical connection problems caused by worn terminals
• Prevents overheating by ensuring proper coolant fan operation
• Addresses relay mounting instability with included bracket

Installation Notes and Tips

When installing the Standard Ignition RY-113 relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. The female rectangular connector and male blade terminals should be inspected for corrosion or damage before installation. Use the included mounting bracket to secure the relay firmly within the instrument panel wiring harness area. Verify proper seating of connectors to avoid intermittent electrical issues.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The RY-113 relay undergoes rigorous testing to confirm electrical integrity and fitment accuracy. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, providing confidence in the product's quality for your Buick, Cadillac, Chevrolet, Oldsmobile, or Pontiac vehicle.
