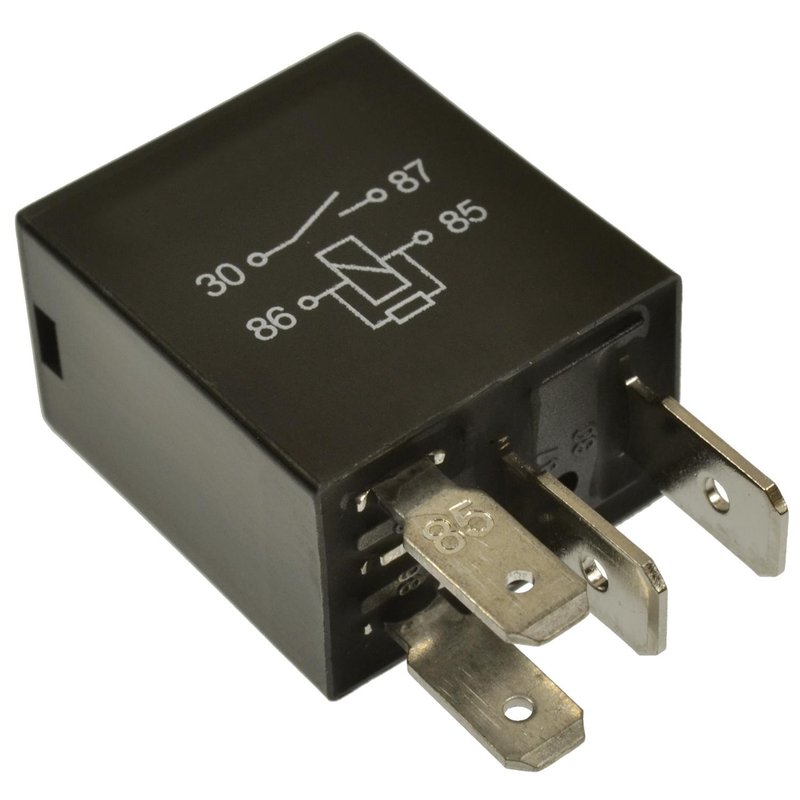

Standard Ignition RY-1159 HVAC Relay

HVAC Relay for Ford and Lincoln Applications

Standard Ignition RY-1159 is a 12-volt HVAC relay built for Ford, Lincoln, and Mercury vehicles that use a rectangular, 4-terminal blade-style relay. With a 20 amp amperage rating and multi-function relay design, it supports HVAC-related electrical switching in a range of factory applications.

Standard Ignition manufactures this relay with composite housings for heat resistance and brass or copper contacts where specified to support wear resistance in demanding under-hood environments. The RY-1159 is a direct-fit style replacement for many Ford F-150, Mustang, Fusion, and Explorer applications.

Key Features

• Part number: RY-1159
• 12-volt HVAC relay
• 20 amp amperage rating
• Rectangular connector shape
• 4 male blade terminals
• Multi-function relay design
• Composite housing for harsh temperature exposure
• Manufactured under TS16949 and ISO9001 certified processes

Detailed Description

Standard Ignition RY-1159 is an HVAC relay used in vehicle electrical systems where a rectangular 4-terminal relay is specified. It is listed for a wide range of Ford and Lincoln models, including the Ford F-150, Ford Mustang, Ford Fusion, Ford Explorer, Lincoln MKZ, and Mercury Milan. If you are replacing a failed HVAC relay in a 2004-2008 Ford F-150, 2006-2012 Ford Fusion, or 2009-2014 Ford Mustang, this part number should be checked against the original relay shape, terminal count, and amperage rating.

This part cross-references Standard-style replacement numbers such as 1R2092 and 4F1T14B192AA for the same application. The RY-1159 is built for consistent electrical performance in under-hood conditions and is manufactured with quality controls maintained throughout the production process.

Common Uses

• Restoring HVAC relay function when the original relay no longer switches properly
• Addressing intermittent blower, compressor, or HVAC control circuit operation
• Replacing a heat-damaged or corroded rectangular relay
• Correcting electrical faults related to worn relay contacts
• Repairing HVAC electrical issues on Ford F-150, Mustang, Fusion, and Explorer platforms

Installation Notes and Tips

Verify the original relay’s connector shape, terminal count, voltage, and amperage rating before installation. Confirm the vehicle application against the existing relay location, especially on Ford F-150, Ford Mustang, and Ford Fusion models where multiple relay styles may be used. Inspect the relay socket for heat damage, bent terminals, or corrosion before installing the replacement.

Quality Assurance

Standard Ignition builds this relay using composite housings and specified brass or copper contacts to support durability in severe under-hood conditions. Production is controlled under TS16949 and ISO9001 certified manufacturing systems to help ensure the correct part is produced for the intended vehicle application.
