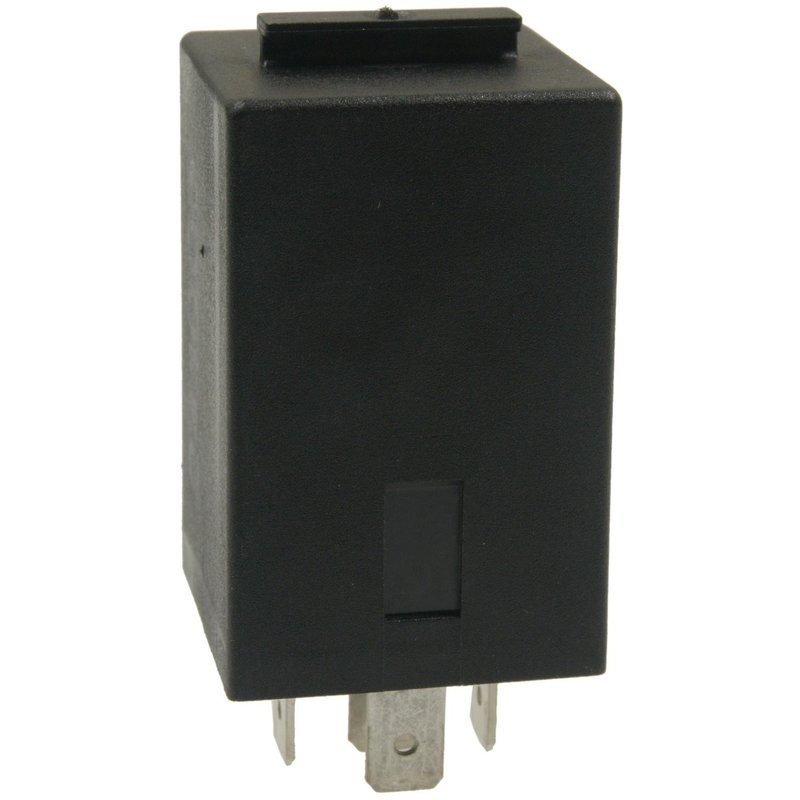

Standard Ignition RY-1160 Door Mirror Relay

Door Mirror Relay for Ford F-150 and Lincoln Mark LT

Standard Ignition RY-1160 is a 12-volt door mirror relay built for vehicles that use a 5-blade male terminal layout and no connector at the relay. It is a direct-fit electrical replacement for select Ford F-150 and Lincoln Mark LT applications, including folding mirror configurations where listed.

Key Features

• 12-volt door mirror relay for exterior mirror control circuits
• 5-terminal blade design with male terminals
• No connector and no mounting bracket included
• Composite housing helps protect internal components in demanding underhood conditions
• Brass or copper contacts are used where specified for wear resistance
• Manufactured to stringent quality requirements in TS16949 and ISO9001 certified plants

Detailed Description

Standard Ignition RY-1160 is a replacement door mirror relay engineered for electrical systems that require reliable switching performance in Ford and Lincoln mirror circuits. It is listed for 2004 Ford F-150, 2005-2006 Ford F-150 with folding function, 2007 Ford F-150, 2007 Lincoln Mark LT, and 2006 Lincoln Mark LT with folding function. This part number, RY-1160, is also cross-referenced to Dorman - HELP 20754 for the same application.

Built with a durable composite housing and specified metal contacts, this relay is intended for consistent operation in harsh temperature swings and severe underhood environments. For buyers searching for a Ford F-150 door mirror relay or a Lincoln Mark LT mirror relay replacement, RY-1160 provides the electrical format needed for the listed vehicles.

Common Issues This Relay Can Address

• Power mirror movement that stops responding
• Mirror folding function that does not activate on equipped vehicles
• Intermittent mirror operation caused by relay wear
• Electrical switching faults in the mirror control circuit
• Replacement needs after relay contact degradation

Installation Notes and Tips

• Verify the vehicle year, make, model, and folding-mirror configuration before ordering.
• Match the 5-blade male terminal layout and 12-volt specification to the original relay.
• Inspect the relay socket and terminals for corrosion, heat damage, or looseness before installation.
• Confirm the mirror circuit diagnosis so the relay is replaced only when the fault is in the switching component.

Quality Assurance

Standard Ignition manufactures this relay to strict quality standards, with production in TS16949 and ISO9001 certified facilities. The housing and contact materials are selected to support dependable electrical performance in demanding vehicle environments.
