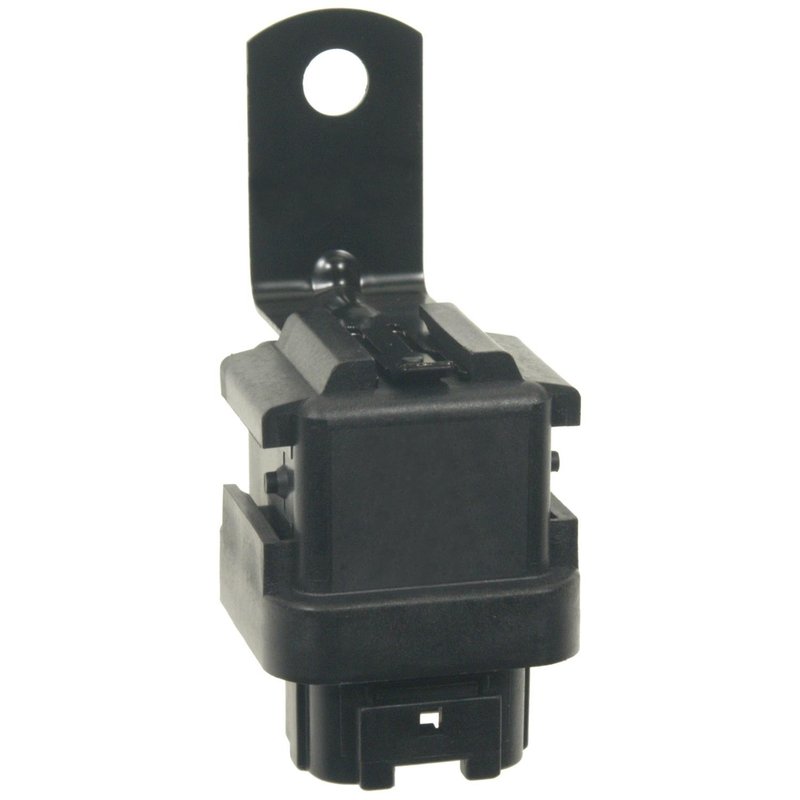

Standard Ignition RY-1301 Fuel Pump Relay

Fuel Pump Relay for Toyota and Lexus Applications

Standard Ignition RY-1301 is a 12-volt fuel pump relay built with a 6-blade terminal layout, a square single-connector design, and a female connector with male terminals. It includes a mounting bracket for secure installation and is a direct-fit electrical relay for select Toyota Land Cruiser and Lexus LX450 applications.

Key Features

• Fuel pump relay function for controlled fuel delivery circuit operation
• 12-volt electrical specification
• 6-terminal blade design with square connector shape
• Female connector and male terminals for OE-style connection
• Mounting bracket included for installation support
• Standard Ignition RY-1301 replacement part number

Detailed Product Overview

Standard Ignition RY-1301 is a fuel pump relay used in the air and fuel delivery system to switch power to the fuel pump circuit. It is built for select 1993-1998 Toyota Land Cruiser and 1996-1997 Lexus LX450 models, making it a focused replacement for vehicles that need a relay with the correct connector style, terminal count, and voltage rating. The RY-1301 part number is also referenced in interchange listings for related applications, including Four Seasons 20167.

For buyers searching for a Toyota Land Cruiser fuel pump relay or a Lexus LX450 fuel pump relay, this relay provides the electrical configuration needed for proper circuit control. The square connector, blade terminals, and included bracket help match the original mounting and connection layout used in these applications.

Common Problems This Relay May Address

• Fuel pump not receiving power
• Intermittent engine starting issues related to relay failure
• Fuel delivery interruption caused by worn relay contacts
• No-start condition tied to the fuel pump control circuit
• Electrical relay replacement during fuel system diagnosis

Installation Notes and Tips

Verify connector shape, terminal count, and voltage before installation. This relay is a 12-volt unit with a 6-blade terminal layout, so matching the original connector and mounting location is important for proper fitment. Confirm application coverage for 1993-1998 Toyota Land Cruiser and 1996-1997 Lexus LX450 before replacing the existing relay. Standard Ignition RY-1301 is intended for direct relay replacement in the listed vehicles.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical and fuel system components. RY-1301 is built to meet the specified relay configuration for the listed Toyota and Lexus applications, with interchange references available for cross-checking part selection.
