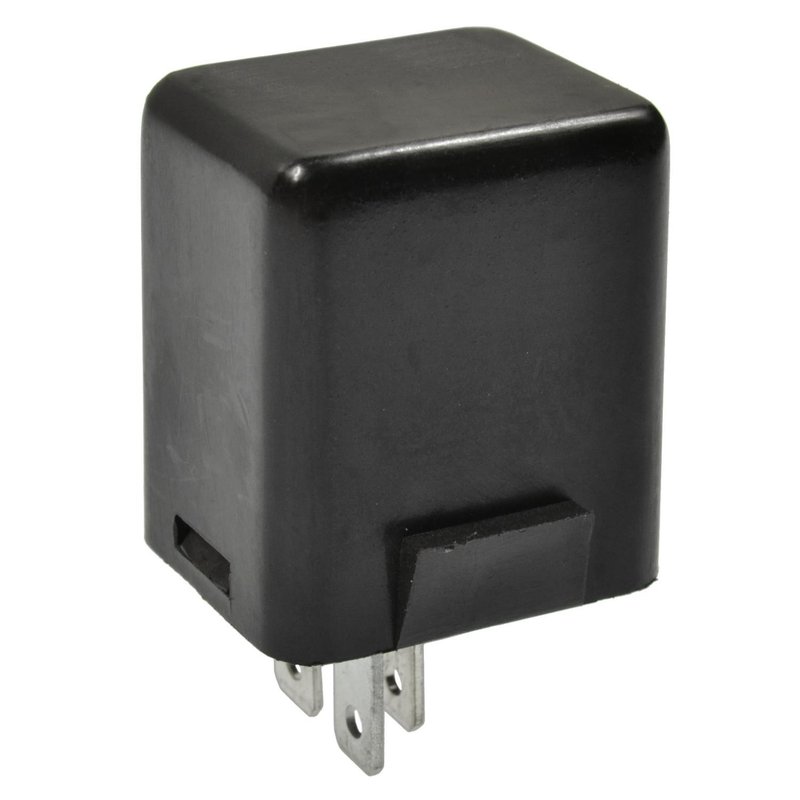

Standard Ignition RY-144 Automatic Choke Heater Control Relay

Overview of Standard Ignition Automatic Choke Heater Control Relay

The Standard Ignition RY-144 Automatic Choke Heater Control Relay is designed to support reliable air and fuel delivery system operation in select Chevrolet, Oldsmobile, and Pontiac vehicles. This relay ensures proper functioning of the running light circuit by controlling the automatic choke heater, contributing to optimal engine performance.

• Amperage rating: 10 amps for consistent electrical load handling
• 12-volt operation compatible with standard automotive electrical systems
• Three male blade terminals with rectangular connectors for secure connections
• Functions as a running light relay within the choke heater control system
• Compact design without mounting brackets for flexible installation

Technical Details and Compatibility

The RY-144 relay features a 12-volt rating and a 10-amp amperage capacity, suitable for controlling the automatic choke heater in various GM vehicles. It includes three male blade terminals arranged in a rectangular connector shape, ensuring proper fitment and electrical contact. This relay is not rated for continuous duty, aligning with its function as a running light relay rather than a constant power relay.

Compatible with a range of Chevrolet, Oldsmobile, and Pontiac models, including but not limited to the Chevrolet Camaro, Caprice, and Impala; Oldsmobile Cutlass series and Delta 88; and Pontiac Firebird, Grand Prix, and Bonneville. The RY-144 relay supports vehicles from multiple model years, providing a reliable replacement part for maintaining choke heater control system integrity.

Applications and Problem Resolution

This automatic choke heater control relay is used primarily to regulate the running light circuit associated with the choke heater system. It addresses several common issues, such as:

• Intermittent or non-functioning automatic choke heater operation
• Electrical faults causing running light circuit failures
• Relay contact wear leading to inconsistent choke heater control
• Voltage irregularities affecting choke heater timing
• Replacement of damaged or corroded relay components

Installation Notes and Tips

Installation of the Standard Ignition RY-144 relay requires matching the three male blade terminals to the corresponding female connectors in the vehicle’s wiring harness. Since the relay does not include mounting brackets, secure it in a stable location using existing vehicle hardware or appropriate mounting solutions. Verify the 12-volt system voltage and amperage compatibility before installation to ensure proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance in air and fuel delivery systems. The RY-144 relay undergoes quality control testing to verify electrical and mechanical integrity. Warranty coverage details should be confirmed with the product documentation or distributor, as they may vary by region and application.
