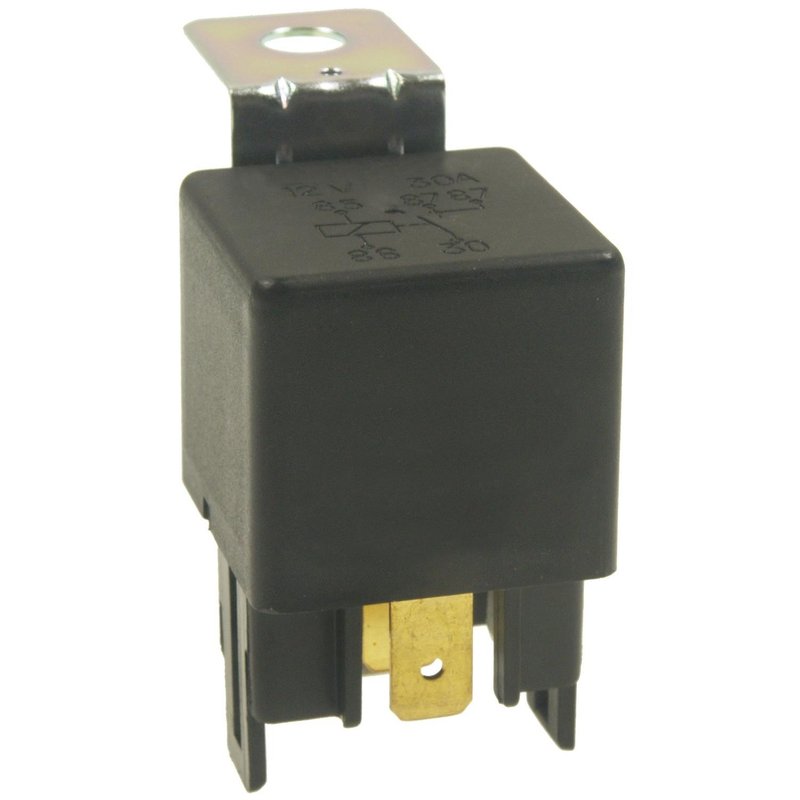

Standard Ignition RY-1485 Computer Control Relay

Computer Control Relay for Hyundai Applications

Standard Ignition RY-1485 is a 12-volt computer control relay built as a complete assembly for electrical system service. It uses a female square connector, five male blade terminals, and includes a mounting bracket for a direct-fit style replacement in supported Hyundai applications.

Compatible with 1996-2000 Hyundai Elantra and 1997-2001 Hyundai Tiburon, this relay is specified for 30 amp operation and is not continuous duty. The RY-1485 is a practical choice when diagnosing relay-related electrical faults in Hyundai Elantra and Hyundai Tiburon models.

Key Features

• Standard Ignition RY-1485 computer control relay
• 12-volt relay with 30 A amperage rating
• Female square connector with 1 connector interface
• 5 male blade terminals for vehicle electrical connection
• Complete assembly with mounting bracket(s) included
• Not rated for continuous duty operation

Detailed Description

This relay is used in computer-controlled electrical circuits where a switched signal is needed to manage power delivery. The Standard Ignition RY-1485 is built with a square female connector and blade-style terminals to match the original relay connection style used on select Hyundai Elantra and Hyundai Tiburon vehicles. If you are replacing a failed relay in a 1996-2000 Hyundai Elantra or a 1997-2001 Hyundai Tiburon, this part number provides the correct electrical format for the listed applications. Cross-reference part numbers include 19985 and AR6990 for the same application.

What It Can Help Fix

• Intermittent relay operation in the vehicle electrical system
• No-power conditions caused by a failed computer control relay
• Erratic switching in relay-controlled circuits
• Electrical accessory or control circuit shutdowns tied to relay failure
• Starting or control issues traced to relay contact wear

Installation Notes and Tips

Verify connector shape, terminal count, and mounting style before installation. Match the relay to the original 12-volt, 30 amp specification and confirm the vehicle uses the listed square female connector with five male blade terminals. For best results, inspect the relay socket and surrounding wiring for heat damage, corrosion, or loose terminals before installing the new RY-1485.

Quality Assurance

Standard Ignition supplies this relay as a complete assembly for service replacement in the listed Hyundai applications. Confirm fitment by year, make, and model before ordering to ensure the relay matches the original electrical configuration.
