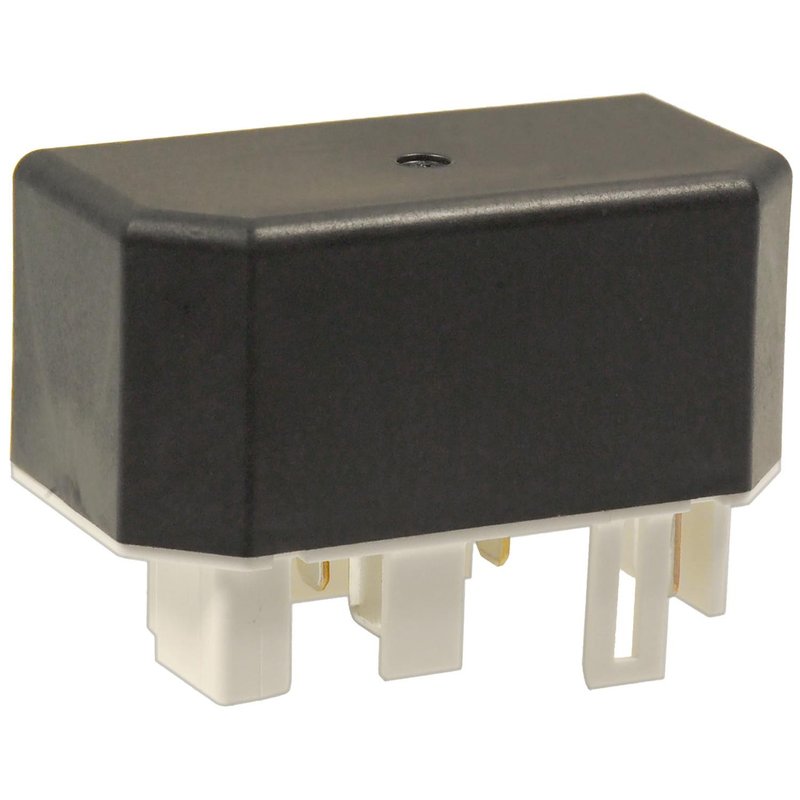

Standard Ignition RY-1507 ABS Relay

Reliable ABS Relay for Lexus and Toyota Vehicles

The Standard Ignition RY-1507 ABS relay is designed to support the skid control system in select Lexus and Toyota models. Engineered to meet specific electrical requirements, this relay ensures consistent performance for your vehicle's anti-lock braking system.

• Compatible with Lexus Highlander, LS430, and Toyota RX300
• 12-volt relay with a rectangular female connector
• Equipped with 5 male blade terminals for secure connections
• Supports skid control functions essential for ABS operation
• Does not include a mounting bracket

Technical Details and Features

The RY-1507 ABS relay operates at 12 volts and features a single rectangular female connector, designed for easy integration into the vehicle's electrical system. It includes five male blade terminals, providing reliable electrical contact necessary for the anti-lock braking system's skid control function. This relay is not rated for continuous duty, aligning with the intermittent operation typical of ABS relays. The absence of a mounting bracket means installation requires securing the relay using existing vehicle hardware or custom mounting solutions.

Applications and Problem Resolution

This ABS relay is specifically compatible with Lexus Highlander, Lexus LS430, and Toyota RX300 models, making it a targeted replacement part for these vehicles. It is used to control the electrical signals within the anti-lock braking system, helping to prevent wheel lockup during braking.

• Resolves ABS warning light issues related to relay failure
• Addresses intermittent or no skid control activation
• Prevents ABS pump or valve malfunctions caused by relay faults
• Helps restore proper brake system responsiveness

Installation Notes and Tips

When installing the Standard Ignition RY-1507 relay, ensure the vehicle's ignition is off and the battery is disconnected to avoid electrical hazards. Verify the connector orientation matches the rectangular female connector on the relay. Since the relay does not include a mounting bracket, use the existing relay holder or secure it firmly to prevent vibration damage. Double-check all blade terminal connections for tightness to maintain reliable electrical contact.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring compatibility and durability. While specific warranty details for the RY-1507 relay are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. Consult the product packaging or manufacturer resources for exact warranty terms.
