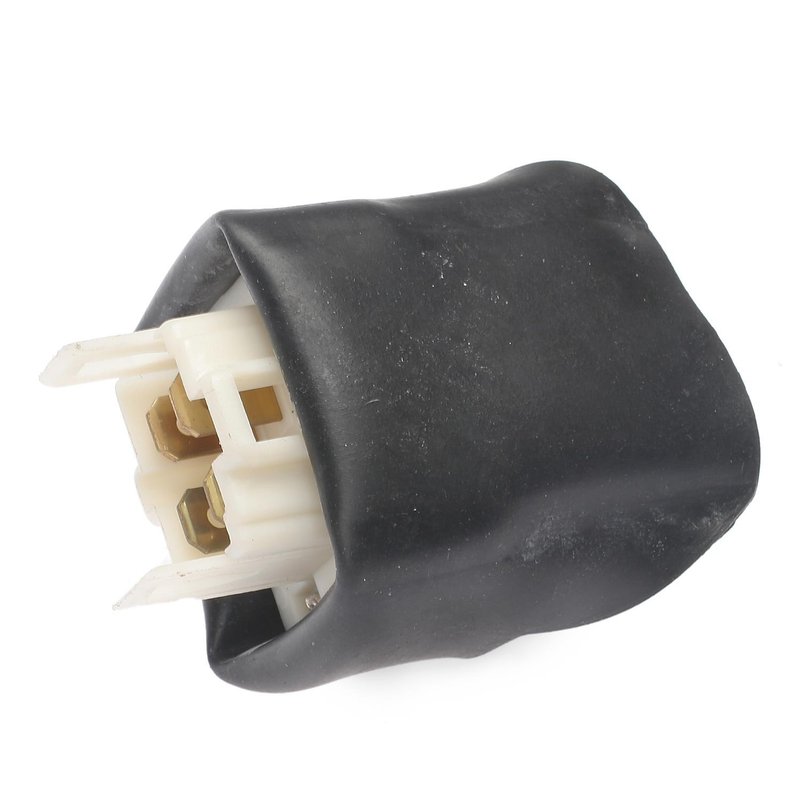

Standard Ignition RY-1542 A/C Compressor Control Relay

Reliable A/C Compressor Control Relay for Mazda Vehicles

The Standard Ignition RY-1542 A/C compressor control relay is designed to ensure efficient operation of your vehicle's air conditioning system. Compatible with various Mazda models, this relay provides dependable performance and easy installation.

• Connector Gender: Female with 1 rectangular connector
• Terminal Type: 4 male blade terminals
• Voltage: 12V operation
• Includes mounting bracket(s) for secure installation
• Function: Controls A/C compressor relay operation

Technical Details and Compatibility

This A/C compressor control relay from Standard Ignition features a female rectangular connector and four male blade terminals, designed for a 12-volt electrical system. The included mounting bracket(s) facilitate a secure and stable fit within the HVAC relay assembly. Specifically engineered for Mazda vehicles, it is compatible with models such as the Mazda 626, 929, Miata, Millenia, MX-3, and MX-6. The part number RY-1542 ensures you receive the correct relay for your vehicle’s air conditioning compressor control needs.

Common Applications and Problem Resolution

This relay is essential for proper A/C compressor function and can address several HVAC issues, including:

• Intermittent or non-functioning A/C compressor engagement
• Electrical relay failure causing A/C system shutdown
• Blown fuses related to compressor relay faults
• Overheating or relay contact wear affecting compressor control
• Loose or damaged relay mounting causing connection issues

Installation Notes and Tips

When installing the Standard Ignition RY-1542 relay, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. The included mounting bracket(s) should be used to secure the relay firmly in place, preventing vibration-related damage. Verify the connector orientation matches the female rectangular connector and that all four male blade terminals are properly seated. Testing the relay function before final assembly is recommended to confirm proper operation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance for your Mazda vehicle’s HVAC system. The RY-1542 relay undergoes rigorous quality control to ensure durability and consistent operation. Warranty coverage details are available through Standard Ignition and typically include protection against manufacturing defects for a specified period.
