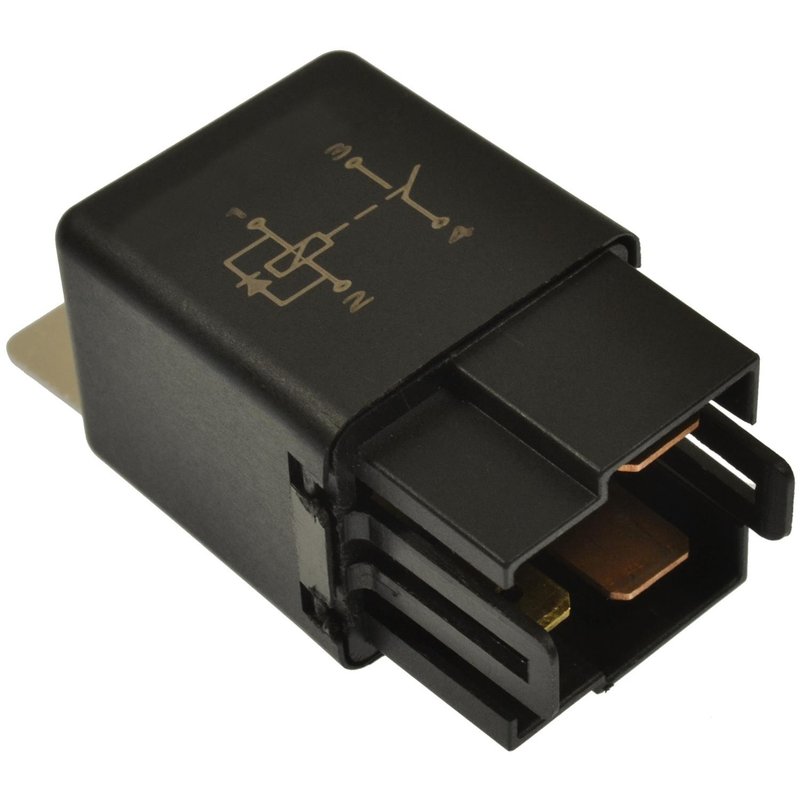

Standard Ignition RY-1560 A/C Compressor Control Relay
| Brand | Standard Ignition RY-1560 |
|---|---|
| Amperage Rating | 25 |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Includes Bracket |
| Functions | Blower Motor |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Kia · 18 vehicles |
Bracket included. Simplifies relay mounting with a single-hole bracket.
25-amp rating. Handles demanding HVAC relay circuits with confidence.
Blade terminals. Four male blade terminals and a rectangular connector.
Cross-references Gates 20775, Standard Ignition RY-1560 and 971202F000 for the same application. See all 5.
Standard Ignition RY-1560 A/C Compressor Control Relay
Standard Ignition RY-1560 is a 12-volt A/C compressor control relay built with a rectangular female connector, 4 male blade terminals, and a 25-amp rating. It includes a mounting bracket and is also used for blower motor functions in select Hyundai and Kia applications.
Key Features
- Part number: RY-1560
- 12-volt relay with 25-amp amperage rating
- Rectangular 1-connector design with female connector gender
- 4 male blade terminals for direct electrical connection
- Mounting bracket included with single mounting hole
- Used for blower motor applications in supported vehicles
Application Details
This Standard Ignition RY-1560 relay is a direct-fit electrical component for HVAC relay service on select Kia and Hyundai models. It fits 2007-2010 Kia Rondo, 2005-2010 Kia Sportage, 2008-2009 Hyundai Tucson, 2007-2009 Kia Spectra, and 2007-2009 Kia Spectra5. For buyers searching for an A/C compressor control relay for Kia Sportage, Hyundai Tucson relay replacement, or Kia Rondo HVAC relay service, RY-1560 provides the specified connector and terminal layout for the listed applications.
This part cross-references Gates 20775 for the same application.
Common Replacement Reasons
- Intermittent or inoperative blower motor operation
- Relay failure causing HVAC electrical switching issues
- A/C compressor control circuit faults
- Heat-related relay contact wear or electrical resistance
- Connector or terminal mismatch during relay replacement
Installation Notes
Verify the connector shape, terminal count, terminal type, and mounting style before installation. Confirm the vehicle uses a 12-volt relay with a 25-amp rating and bracket-mounted configuration. Compare the original relay to RY-1560 and check the vehicle listing by year, make, and model before replacement.
Quality Assurance
Standard Ignition replacement electrical components are built for service applications that require correct fitment and dependable circuit control. RY-1560 is specified for the listed Kia and Hyundai vehicles and follows the documented relay configuration for those applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Kia | Rondo | 2.4L | L4 | N/A | — |
| 2010 | Kia | Sportage | 2.0L | L4 | N/A | — |
| 2009 | Hyundai | Tucson | 2.0L | L4 | N/A | — |
| 2009 | Kia | Rondo | 2.4L | L4 | N/A | — |
| 2009 | Kia | Spectra | 2.0L | L4 | N/A | — |
| 2009 | Kia | Spectra5 | 2.0L | L4 | N/A | — |
| 2009 | Kia | Sportage | — | — | N/A | — |
| 2008 | Hyundai | Tucson | 2.0L | L4 | N/A | — |
| 2008 | Kia | Rondo | 2.4L | L4 | N/A | — |
| 2008 | Kia | Spectra | 2.0L | L4 | N/A | — |
| 2008 | Kia | Spectra5 | — | — | N/A | — |
| 2008 | Kia | Sportage | — | — | N/A | — |
| 2007 | Kia | Rondo | 2.4L | L4 | N/A | — |
| 2007 | Kia | Spectra | — | — | N/A | — |
| 2007 | Kia | Spectra5 | — | — | N/A | — |
| 2007 | Kia | Sportage | — | — | N/A | — |
| 2006 | Kia | Sportage | — | — | N/A | — |
| 2005 | Kia | Sportage | — | — | N/A | — |
