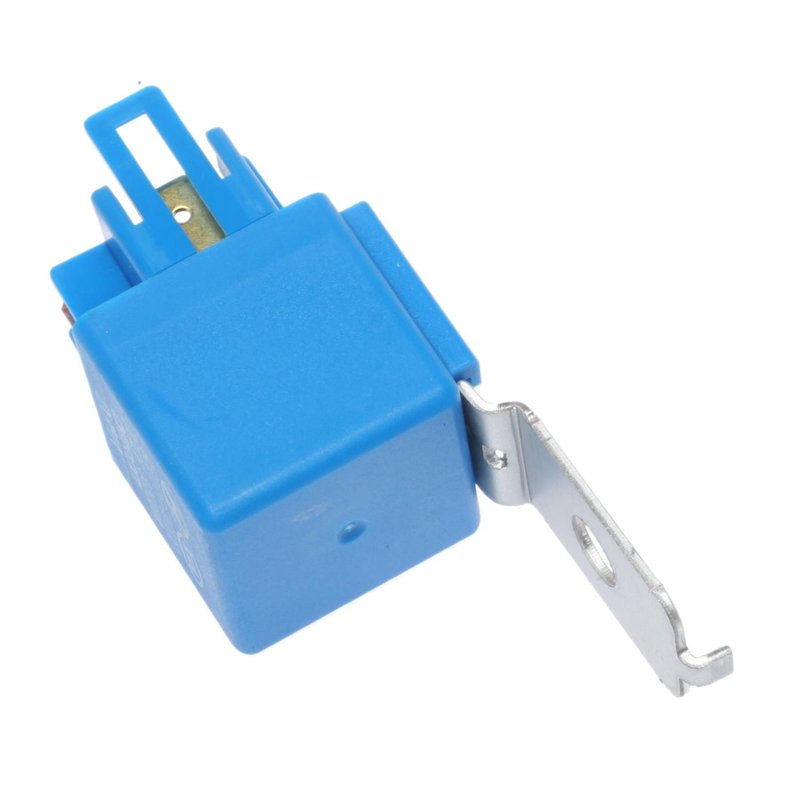

Standard Ignition RY-1561 Adjustable Pedal Relay - Rear
| Brand | Standard Ignition RY-1561 |
|---|---|
| Position | Rear |
| Amperage Rating | 30 A |
| Connector Gender | Female |
| Connector Shape | Square |
| Contents | Includes Bracket |
| Functions | Multi-Function Relay |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | 5 Blade Terminals |
| Voltage | 12 |
| Fits | Kia and Hyundai · 19 vehicles |
Multi-function relay. Handles several electrical tasks in one compact unit.
Includes bracket. Mounting bracket is included for easier installation.
5 blade terminals. Square connector with five blade terminals for a secure connection.
Cross-references Four Seasons 20766, Standard Ignition RY-1561 and 952251F100 for the same application. See all 5.
Adjustable Pedal Relay for Kia and Hyundai
Standard Ignition RY-1561 is a 12-volt adjustable pedal relay built for multi-function electrical control in select Kia and Hyundai applications. It features a 30 amp amperage rating, a female square connector, and five male blade terminals for a direct-fit style replacement where this relay configuration is specified.
- Standard Ignition RY-1561 adjustable pedal relay
- 12-volt relay with 30 A amperage rating
- Female square connector with 1 connector interface
- 5 blade terminals, male terminal gender
- Mounting bracket included
- Multi-function relay design for specified vehicle systems
Fitment and Application Details
Compatible with select Kia Forte Koup, Kia Forte, Kia Sportage, Kia Sedona, and Hyundai Entourage applications. Fits 2010-2013 Kia Forte Koup, N/A; fits 2010-2012 Kia Forte, N/A; fits 2006-2009 Kia Sportage, Rear; fits 2007 Hyundai Entourage, N/A; fits 2006-2007 Kia Sedona, N/A; and fits 2002-2006 Kia Sedona, N/A, Blue; 20 or 30 Amp; 5 Pin. This part cross-references Four Seasons 20766 for the same application.
What This Relay Helps Address
- Intermittent adjustable pedal operation
- No response from the pedal control circuit
- Electrical relay failure in the specified system
- Incorrect relay fitment when connector or terminal style does not match
- Replacement needs for Kia and Hyundai models with 20 or 30 amp relay requirements
Installation Notes and Tips
Verify the connector shape, terminal count, and amperage rating before installation. Match the vehicle’s original relay layout and confirm the application notes for 20 or 30 amp or 5-pin configurations where listed. Use the included mounting bracket when the original setup requires bracketed mounting, and compare the original part number RY-1561 before installation.
Quality Assurance
Standard Ignition replacement electrical components are built to meet the fitment and connection requirements of the listed applications. Confirm the vehicle year, make, model, and relay configuration against the original unit to ensure proper installation and operation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Kia | Forte Koup | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2012 | Kia | Forte | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2012 | Kia | Forte Koup | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2011 | Kia | Forte | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2011 | Kia | Forte Koup | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2010 | Kia | Forte | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2010 | Kia | Forte Koup | 2.0L | L4 | N/A | 20 or 30 Amp |
| 2009 | Kia | Sportage | — | — | Rear | — |
| 2008 | Kia | Sportage | — | — | Rear | — |
| 2007 | Hyundai | Entourage | 3.8L | V6 | N/A | 20 or 30 Amp |
| 2007 | Kia | Sedona | — | — | N/A | — |
| 2007 | Kia | Sportage | — | — | Rear | — |
| 2006 | Kia | Sedona | — | — | N/A | Blue; 20 or 30 Amp; 5 Pin |
| 2006 | Kia | Sedona | — | — | N/A | — |
| 2006 | Kia | Sportage | — | — | Rear | — |
| 2005 | Kia | Sedona | — | — | N/A | Blue; 20 or 30 Amp; 5 Pin |
| 2004 | Kia | Sedona | — | — | N/A | Blue; 20 or 30 Amp; 5 Pin |
| 2003 | Kia | Sedona | — | — | N/A | Blue; 20 or 30 Amp; 5 Pin |
| 2002 | Kia | Sedona | — | — | N/A | Blue; 20 or 30 Amp; 5 Pin |
