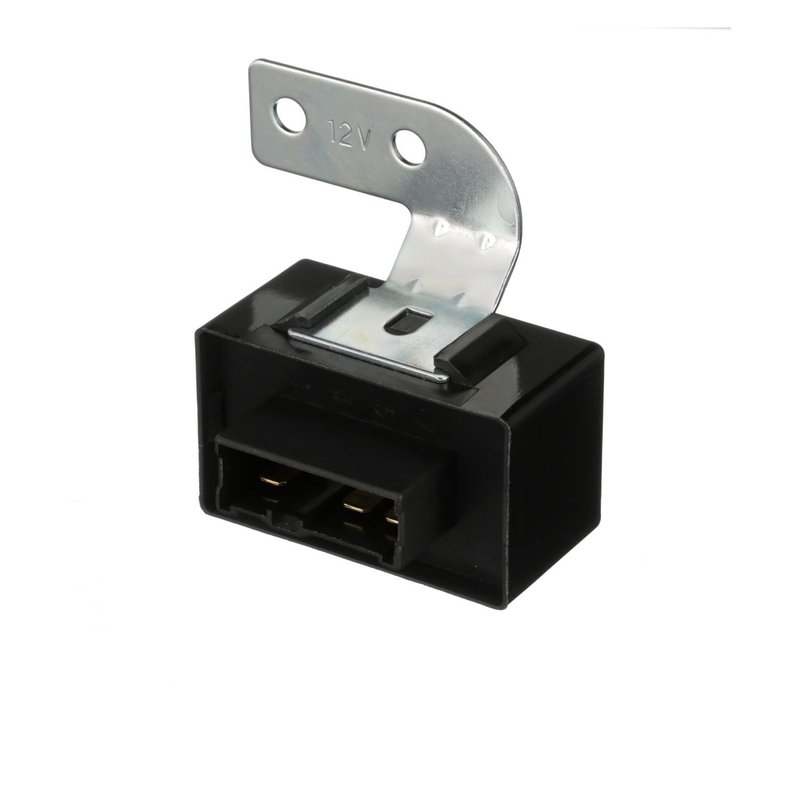

Standard Ignition RY-169 Computer Control Relay

Computer Control Relay for Honda and Acura Applications

The Standard Ignition RY-169 is a 12-volt computer control relay built for main relay service in select Honda and Acura vehicles. It uses a 7-terminal blade design with a rectangular female connector and bolt-mount bracket for a direct-fit electrical replacement.

• Standard Ignition RY-169 computer control relay
• 12 V relay with 30 A amperage rating
• Main relay function for engine management circuits
• Rectangular female connector with 7 male blade terminals
• Bolt-mount design with included bracket and 2 mounting holes
• Single connector layout for OE-style relay replacement

Fitment and Application Details

This relay is used in main relay circuits for select Honda Accord, Honda Civic, Honda Odyssey, Honda Prelude, Acura CL, and Acura TL applications. Fits 1990-1997 Honda Accord, N/A; Fits 1995-1997 Honda Odyssey, N/A; Fits 1997 Honda Prelude, N/A; Fits 1986-1987 Honda Civic, N/A, Rectangular Relay; 7 Term.; Fits 1995-1999 Acura CL, N/A; Fits 1995-1998 Acura TL, N/A. This part cross-references Rostra Powertrain Controls 60-0038 for the same application.

Use the RY-169 when replacing a failed main relay in vehicles that rely on a 7-terminal rectangular relay layout. The part number RY-169 is also referenced in interchange listings for related OE-style applications, including Honda Accord and Acura TL main relay service.

Common Problems This Relay Can Address

• Intermittent no-start condition caused by a failing main relay
• Engine stalling related to relay contact wear
• Loss of fuel or ignition circuit power from relay failure
• Electrical issues tied to heat-sensitive relay operation
• Replacement need for a damaged 7-terminal relay connector interface

Installation Notes and Tips

Verify the connector shape, terminal count, and mounting style before installation. This relay uses a female rectangular connector, 7 male blade terminals, and a bolt-mount bracket, so it should be matched to the original relay configuration on the vehicle. Confirm the application by year, make, and model before replacing the existing unit.

Quality Assurance

Standard Ignition supplies this relay as an OE-style electrical replacement for select Honda and Acura main relay applications. The RY-169 is built to the listed voltage and amperage specifications for direct replacement use in the confirmed fitment range.
