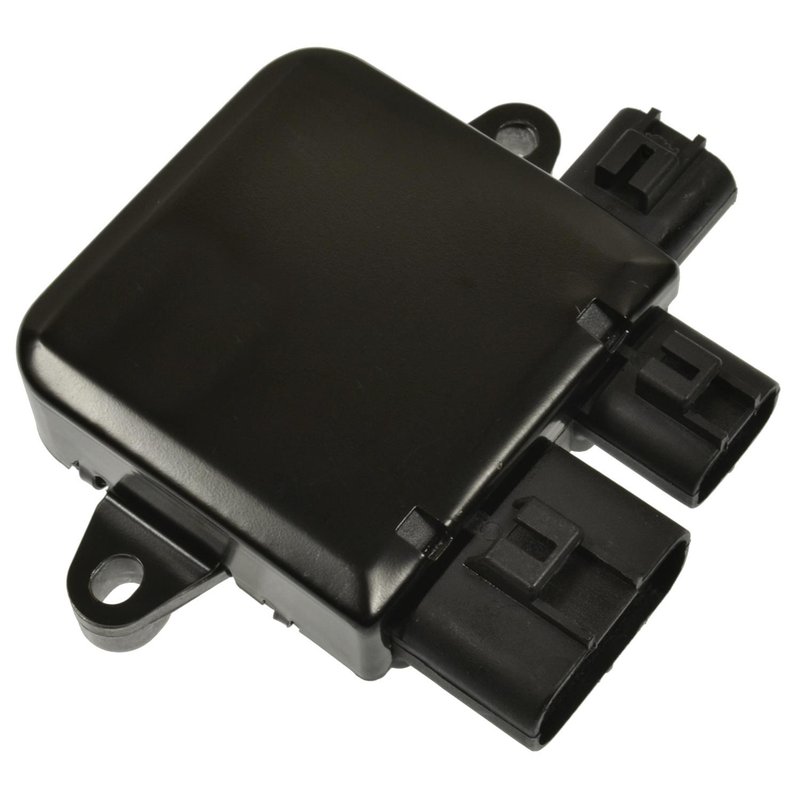

Standard Ignition RY-1704 Engine Cooling Fan Module

Reliable Engine Cooling Fan Module for Mazda and Mitsubishi Vehicles

The Standard Ignition RY-1704 Engine Cooling Fan Module is designed to maintain optimal engine temperature in select Mazda and Mitsubishi models. Engineered with precise connector and terminal specifications, this module ensures reliable performance and compatibility.

• Connector Gender: Female
• Connector Quantity: 3
• Connector Shape: Rectangular
• Terminal Gender: Male
• Terminal Quantity: 7
• Terminal Type: Blade

Technical Details and Compatibility

This engine cooling fan module features three female rectangular connectors paired with seven male blade terminals, providing secure and efficient electrical connections. The design supports proper communication between the vehicle’s cooling fan and engine control systems. The RY-1704 module is compatible with Mazda 6 and MPV models, as well as Mitsubishi Lancer vehicles, ensuring a precise fit and function for these applications.

Purpose and Common Issues Addressed

• Regulates engine temperature by controlling cooling fan operation
• Prevents engine overheating during high load or hot weather conditions
• Resolves intermittent or non-functioning cooling fan problems
• Eliminates electrical connection failures related to worn or damaged terminals
• Supports proper engine performance and longevity by maintaining cooling system efficiency

Installation Notes and Tips

When installing the Standard Ignition RY-1704 Engine Cooling Fan Module, ensure all connectors are securely attached to avoid loose electrical contacts. Verify the orientation of the rectangular female connectors and blade terminals to match factory wiring harnesses. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts. Consult the vehicle’s service manual for specific removal and installation procedures related to Mazda 6, MPV, and Mitsubishi Lancer models.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The RY-1704 Engine Cooling Fan Module undergoes rigorous quality control testing to ensure proper fit and function. This part is backed by Standard Ignition’s limited warranty, covering defects in material and workmanship under normal use conditions.
