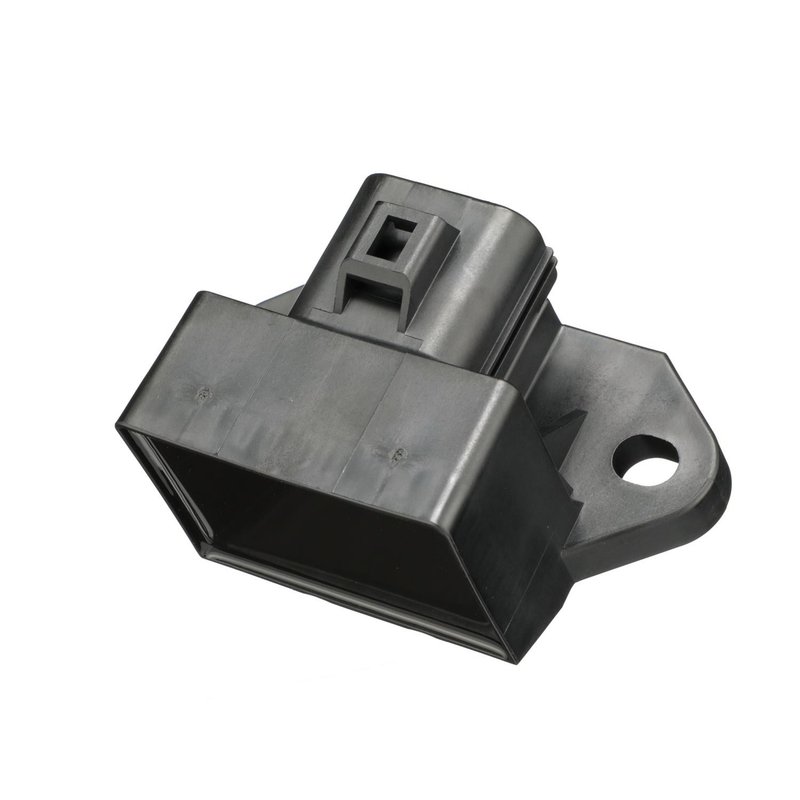

Standard Ignition RY-1712 Fuel Pump Driver Module

Reliable Fuel Pump Driver Module for Ford, Lincoln, Mazda, and Mercury

The Standard Ignition RY-1712 Fuel Pump Driver Module is engineered to provide consistent fuel pump relay functionality for select Ford, Lincoln, Mazda, and Mercury vehicles. Designed with precise connector and terminal specifications, this module ensures dependable fuel delivery system performance.

Key Features of the Standard Ignition RY-1712 Fuel Pump Driver Module

• Connector Gender: Female with a single rectangular connector
• Terminal Type: 8 male blade terminals for secure electrical connections
• Includes mounting bracket(s) for straightforward installation
• Operates on 12-volt electrical systems
• Functions as a fuel pump relay to regulate fuel pump operation

Detailed Description and Technical Specifications

The Standard Ignition RY-1712 is a fuel pump driver module designed to control the fuel pump relay in various Ford, Lincoln, Mazda, and Mercury models. Featuring a female rectangular connector and eight male blade terminals, this module provides reliable electrical connectivity and efficient fuel pump control. The included mounting bracket(s) facilitate proper and secure installation within the vehicle’s fuel delivery system. Operating at 12 volts, the module is compatible with the electrical systems of vehicles such as the Ford F-150, Lincoln Navigator, Mazda Tribute, and Mercury Milan.

Compatible Vehicles and Common Applications

• Ford Edge, Escape, Expedition, F-150, F-250 Super Duty, F-350, F-350 Super Duty, Fusion, Taurus, Transit
• Lincoln MKT, MKX, MKZ, Navigator
• Mazda Tribute
• Mercury Milan

Common Issues Addressed by the RY-1712 Fuel Pump Driver Module

• Intermittent or no fuel pump operation
• Fuel pump relay failure causing engine stalling or no start conditions
• Electrical connection problems due to worn or damaged terminals
• Fuel delivery interruptions affecting engine performance
• Replacement of faulty or damaged fuel pump driver modules

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation; the module features a female rectangular connector for proper fit
• Use the included mounting bracket(s) to secure the module firmly in place
• Inspect blade terminals for corrosion or damage before installation
• Consult the vehicle’s service manual for specific wiring and installation procedures

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The RY-1712 Fuel Pump Driver Module undergoes rigorous quality control testing. Warranty coverage details should be confirmed with the product documentation or supplier.
