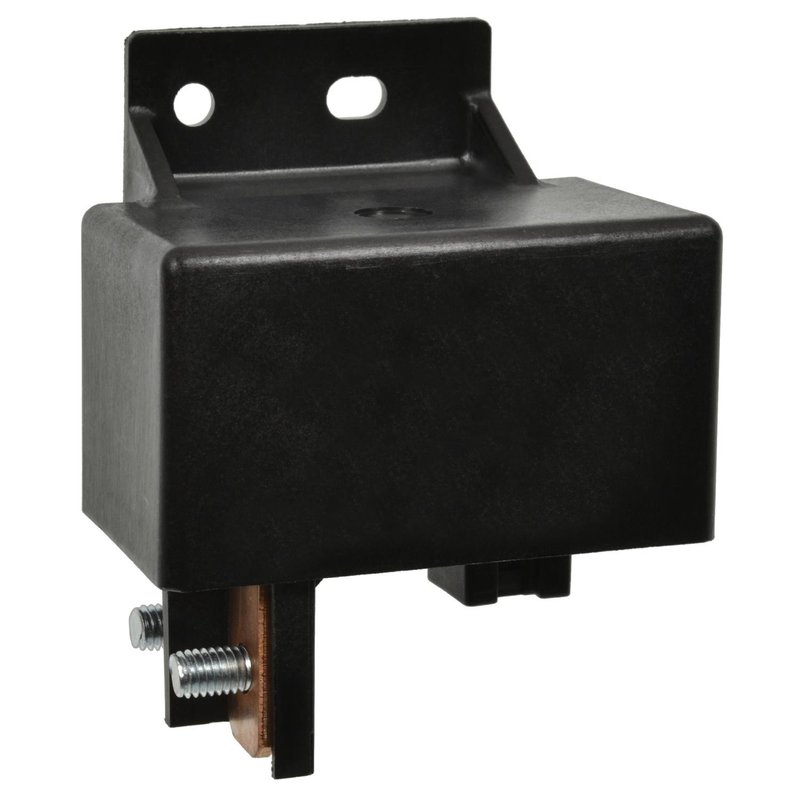

Standard Ignition RY-1723 Accessory Power Relay

Overview of Standard Ignition Accessory Power Relay RY-1723

The Standard Ignition RY-1723 accessory power relay is designed for reliable electrical performance in Dodge and Mercedes-Benz Sprinter models. This relay supports accessory power functions with a 12-volt rating and includes mounting brackets for secure installation.

• Compatible with Dodge Sprinter 1500, 2500, 3500, and 3500XD models
• Also fits Mercedes-Benz Sprinter 1500, 2500, 3500, and 3500XD vehicles
• 12-volt accessory power relay with male and female rectangular connectors
• Includes mounting brackets for easy and secure installation
• Features 4 terminals with screw and blade types for versatile connections

Technical Specifications and Features

The RY-1723 accessory power relay operates at 12 volts and is designed with both male and female rectangular connectors, providing two connector points for integration into the vehicle's electrical system. It features four terminals, combining screw and blade types, which allow for flexible wiring options. The relay is not rated for continuous duty, making it suitable for intermittent accessory power applications. Included mounting brackets facilitate a stable and secure fit within the vehicle.

Applications and Problem Solving

This accessory power relay is intended for use in electrical systems of Dodge and Mercedes-Benz Sprinter vans, specifically the 1500, 2500, 3500, and 3500XD models. It addresses several common issues:

• Restores accessory power relay function in Sprinter electrical systems
• Resolves intermittent accessory power loss or relay failure
• Provides a reliable connection with durable male and female connectors
• Ensures proper mounting to prevent relay movement or disconnection
• Supports replacement of worn or damaged accessory power relays

Installation Notes and Tips

When installing the Standard Ignition RY-1723 relay, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Use the included mounting brackets to secure the relay firmly in place, avoiding vibration-related issues. Verify connector orientation—male and female rectangular connectors must align correctly for proper function. Tighten screw terminals securely but avoid over-tightening to prevent damage. Consult the vehicle’s service manual for specific wiring diagrams related to the Sprinter 1500, 2500, 3500, and 3500XD models.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring compatibility and durability. The RY-1723 accessory power relay undergoes rigorous testing to maintain consistent electrical performance. Warranty coverage details should be confirmed with the product documentation or supplier, as Standard Ignition typically offers limited warranties covering defects in materials and workmanship.
