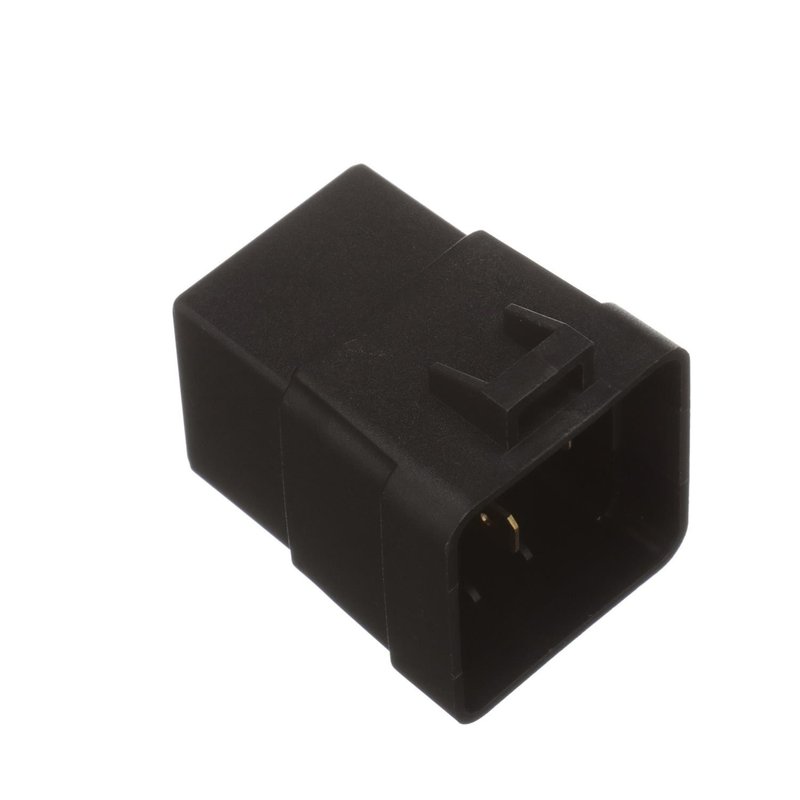

Standard Ignition RY-1773 HVAC Temperature Delay Relay

Reliable HVAC Temperature Delay Relay for Chrysler, Dodge, Jeep, and Ram

The Standard Ignition RY-1773 HVAC Temperature Delay Relay is designed to provide dependable performance in your vehicle's heating and cooling system. Engineered for select Chrysler, Dodge, Jeep, and Ram models, this relay ensures proper temperature regulation and system delay functionality.

• Amperage rating of 40 amps for robust electrical handling
• 12-volt operation compatible with standard automotive electrical systems
• Female connector with a single square-shaped plug for secure connection
• Five male blade terminals for reliable electrical contact
• Designed specifically for HVAC temperature delay relay functions

Technical Details and Specifications

The RY-1773 relay operates at 12 volts and supports a 40 amp current load, making it suitable for demanding HVAC applications in vehicles. It features a female connector with one square-shaped plug, ensuring a precise fit with the vehicle’s wiring harness. The relay includes five male blade terminals, which provide stable and efficient electrical connections. This part does not include mounting brackets, so ensure your vehicle’s existing hardware is compatible.

Compatible Vehicles and Applications

This HVAC temperature delay relay is compatible with a range of Chrysler, Dodge, Jeep, and Ram vehicles, including models such as the Chrysler 200, 2500, 3500, Avenger, C/V, Grand Caravan, Grand Cherokee, Nitro, Town & Country, and Wrangler. The RY-1773 relay is designed to maintain proper HVAC system timing and temperature control in these vehicles, helping to prevent premature wear and electrical issues.

• Prevents HVAC system overheating by managing temperature delay
• Eliminates erratic blower motor operation
• Reduces electrical relay failure in heating and cooling circuits
• Helps maintain consistent cabin temperature control
• Supports proper function of HVAC delay features in compatible vehicles

Installation Notes and Tips

When installing the Standard Ignition RY-1773 relay, verify the connector type and terminal configuration match your vehicle’s specifications. The female square connector and five male blade terminals must align correctly for proper operation. Since mounting brackets are not included, use the existing hardware or appropriate mounting solutions. Always disconnect the battery before installation to avoid electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The RY-1773 HVAC Temperature Delay Relay undergoes rigorous testing to confirm electrical and mechanical integrity. Please refer to Standard Ignition’s warranty policy for specific coverage details.
