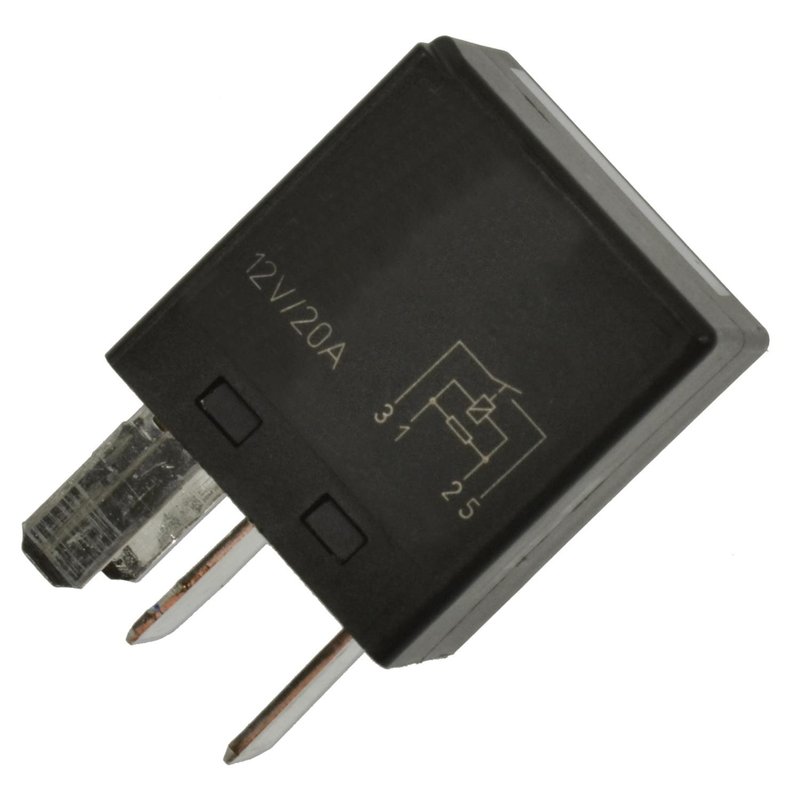

Standard Ignition RY-1786 Headlight Check Relay

Reliable Headlight Check Relay for Jaguar S-Type

The Standard Ignition RY-1786 headlight check relay is designed specifically for Jaguar S-Type models, ensuring proper headlight function and electrical system reliability. This multi-function relay operates at 12 volts with a 20 amp rating, providing consistent performance for your vehicle's lighting system.

Key Features of Standard Ignition RY-1786

• Compatible with Jaguar S-Type vehicles
• Multi-function headlight check relay
• 12-volt operating voltage
• 20 amp amperage rating for reliable current handling
• Rectangular connector shape with 4 male blade terminals
• Terminal type: blade terminals for secure connections
• Mounting bracket not included

Detailed Product Description

The Standard Ignition RY-1786 headlight check relay is engineered to meet the electrical demands of Jaguar S-Type models. Featuring a 12-volt rating and a 20 amp amperage capacity, this relay supports multiple functions within the vehicle's lighting system. The rectangular connector shape and four male blade terminals ensure a precise fit and secure electrical connections. Although the relay does not include a mounting bracket, its design allows for straightforward integration into the existing relay housing of the Jaguar S-Type.

Common Applications and Issues Addressed

• Restores proper headlight operation in Jaguar S-Type vehicles
• Resolves intermittent or non-functioning headlights
• Eliminates flickering or dim headlight issues
• Supports multi-function lighting control systems
• Prevents electrical faults related to headlight relay failure

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Verify connector shape and terminal configuration match the original relay
• Handle blade terminals carefully to avoid bending or damage
• Consult Jaguar S-Type service manual for relay location and replacement procedures
• Test headlight operation after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit and function. The RY-1786 headlight check relay undergoes rigorous quality control to ensure durability and reliable performance in Jaguar S-Type vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
