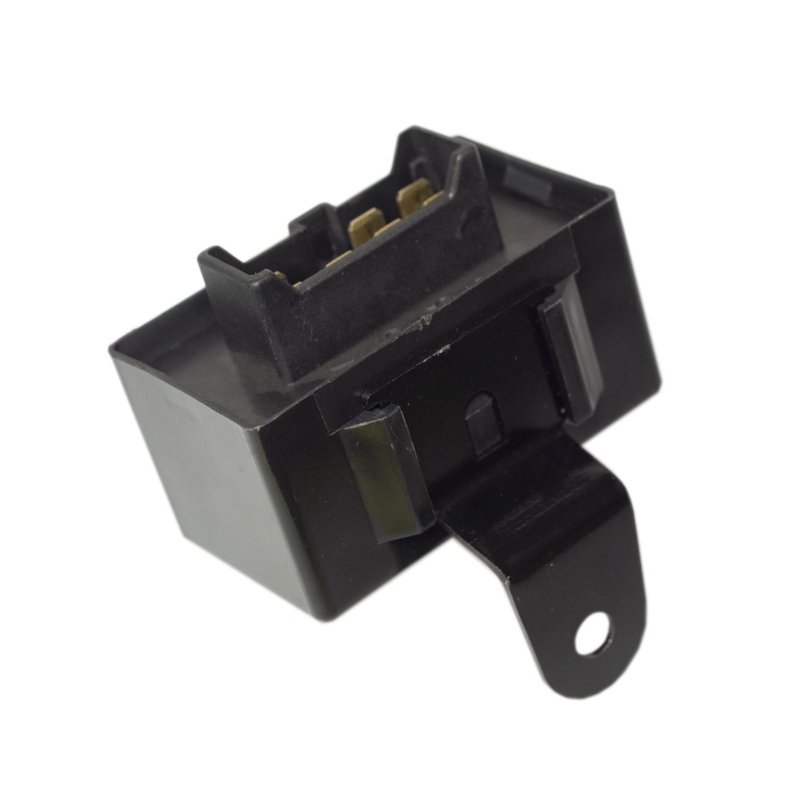

Standard Ignition RY-212 Computer Control Relay

Computer Control Relay for Honda and Acura Applications

Standard Ignition RY-212 is a 12-volt computer control relay built for select Honda and Acura vehicles. It uses a rectangular female connector with 7 male blade terminals and includes a mounting bracket for secure installation.

Key Features

• 12 V computer control relay for electrical system control
• 30 A amperage rating
• Female connector with 1 rectangular connector
• 7 male blade terminals
• Mounting bracket included
• Non-continuous duty design

Detailed Product Overview

Standard Ignition RY-212 is a relay used in vehicle electrical and computer control circuits where a compact, bracket-mounted relay is required. The 30 amp rating, 12-volt specification, and 7-terminal blade layout make it a direct-match style replacement for select import applications. This part number is commonly referenced for Honda Civic, Honda Accord, Honda Prelude, and Acura Integra applications, including 1986-1987 Honda Civic with black finish and 7 terminals. Standard Ignition RY-212 also cross-references Gates 19335 for the same application.

Compatible With 1986-1989 Acura Integra, 1986-1987 Honda Civic, 1980-1981 Honda Civic, 1975-1977 Honda Civic, 1980-1981 Honda Accord, 1976-1978 Honda Accord, and 1979-1981 Honda Prelude. Use the vehicle connector style and terminal count to confirm match before installation.

Common Issues This Relay Can Address

• Intermittent electrical relay operation
• No-start or no-power conditions tied to relay failure
• Inconsistent computer control circuit switching
• Electrical accessory or system activation problems
• Heat-related relay contact wear

Installation Notes and Tips

Verify the connector shape, terminal count, and mounting location against the original relay before replacement. Standard Ignition RY-212 uses a female rectangular connector with 7 male blade terminals, so matching the OE layout is important for proper fitment. Confirm the vehicle application by year, make, and model, especially on Honda Civic and Honda Accord platforms where multiple relay configurations may exist.

Quality Assurance

Standard Ignition supplies electrical components for service replacement applications, and this relay is built to match the specified 12 V, 30 A, 7-terminal configuration for the listed vehicles.
