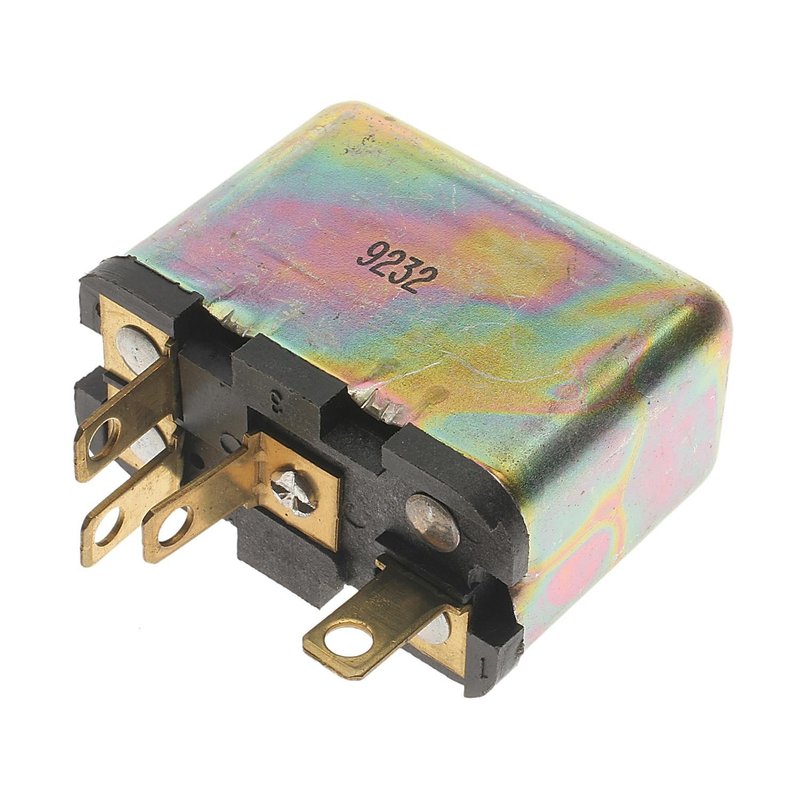

Standard Ignition RY-24 HVAC Automatic Temperature Control (ATC) Relay

Overview of Standard Ignition RY-24 HVAC Relay

The Standard Ignition RY-24 is a reliable HVAC Automatic Temperature Control (ATC) relay designed for select Cadillac and Oldsmobile vehicles. Engineered to meet specific amperage and voltage requirements, this relay supports proper climate control system operation in models like the Cadillac DeVille and Oldsmobile Toronado.

• Amperage Rating: 20 amps
• Voltage: 12 volts
• Connector Shape: Rectangular
• Terminal Type: 4 male blade terminals
• Continuous Duty: No
• Mounting Bracket: Not included

Technical Details and Specifications

The RY-24 relay from Standard Ignition is built to handle a 20 amp load at 12 volts, making it suitable for HVAC automatic temperature control systems in various Cadillac and Oldsmobile models. Featuring a rectangular connector shape and four male blade terminals, this relay ensures secure and precise electrical connections. It is not rated for continuous duty, which aligns with typical HVAC relay operation cycles. The relay does not include a mounting bracket, so installation will require using the existing hardware or mounting points in the vehicle.

Compatible Vehicles and Applications

This HVAC relay is compatible with several Cadillac and Oldsmobile vehicles, including:

• Cadillac Cimarron
• Cadillac Commercial Chassis
• Cadillac DeVille
• Cadillac Eldorado
• Cadillac Fleetwood
• Cadillac Seville
• Oldsmobile Toronado

Using the Standard Ignition RY-24 relay helps maintain proper function of the automatic temperature control system in these vehicles, ensuring consistent climate regulation.

Common Issues Addressed by the RY-24 HVAC Relay

• Intermittent or no operation of the HVAC automatic temperature control system
• Failure of blower motor to activate properly
• Inconsistent cabin temperature regulation
• Electrical relay clicking or failure symptoms
• HVAC system relay overheating or electrical faults

Installation Notes and Tips

When installing the Standard Ignition RY-24 relay, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. Verify the relay terminals match the vehicle’s connector configuration, noting the rectangular connector shape and four male blade terminals. Since no mounting bracket is included, use the existing bracket or secure the relay firmly in place to avoid vibration damage. Testing the relay function after installation is recommended to confirm proper HVAC system operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit and function. The RY-24 relay undergoes quality control testing to ensure reliable performance in HVAC automatic temperature control systems. Warranty coverage details should be confirmed at the point of purchase, but Standard Ignition typically offers limited warranties against defects in materials and workmanship.
