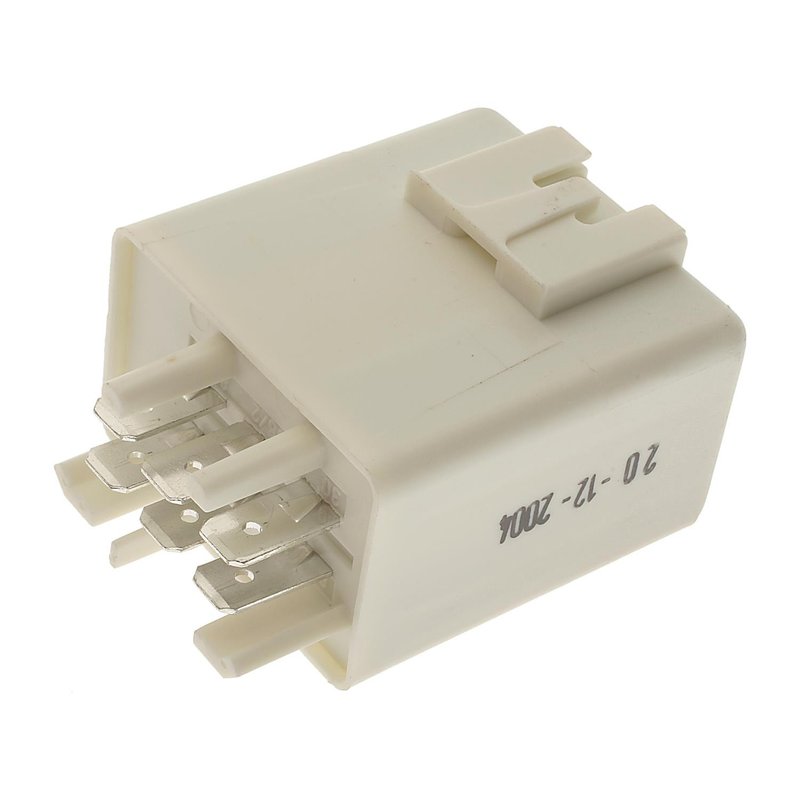

Standard Ignition RY-293 Computer Control Relay
| Brand | Standard Ignition RY-293 |
|---|---|
| Amperage Rating | 20 A |
| Connector Shape | Rectangular |
| Contents | Relay |
| Continuous Duty | No |
| Functions | Relay |
| Mounting Bracket(s) Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Volvo · 32 vehicles |
Computer control relay. Provides reliable switching for 12-volt electrical systems.
Rectangular connector. Uses a 6-blade terminal layout for straightforward replacement.
Cross-references Dorman - TECHoice 522-000, Four Seasons 20104 and Standard Ignition RY-293 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Standard Ignition RY-293 Computer Control Relay
Standard Ignition RY-293 is a 12-volt computer control relay built for electrical system switching in select Volvo applications. It uses a rectangular connector, 6 male blade terminals, and a 20 amp amperage rating for direct relay replacement in the correct circuit.
Key Features
- 12 V computer control relay for automotive electrical circuits
- 20 A amperage rating for relay-controlled switching
- Rectangular connector shape with 6 male blade terminals
- Relay function only; continuous duty: no
- Standard Ignition RY-293 replacement part number
Application Details
Compatible With select Volvo models, including Fits 1992-1995 Volvo 940, N/A; Fits 1990-1993 Volvo 240, N/A; Fits 1985-1992 Volvo 740, N/A; Fits 1987-1991 Volvo 780, N/A; Fits 1985-1987 Volvo 760, N/A; and Fits 1985 Volvo 745, N/A. This part cross-references Dorman - TECHoice 522-000 for the same application.
Standard Ignition RY-293 is used where the vehicle needs a relay to route electrical power through the proper control circuit. The 6-terminal blade design and rectangular connector help match the original relay interface in supported Volvo 240, Volvo 740, and Volvo 940 applications.
Common Issues This Relay Can Address
- Intermittent electrical circuit switching
- No-response relay operation in the control circuit
- Faulty relay contacts causing inconsistent power delivery
- Replacement needs for a worn 12-volt relay in the original location
Installation Notes and Tips
Verify the connector shape, terminal count, and amperage rating against the original relay before installation. Confirm the vehicle uses a 12-volt, 6-terminal blade relay with a rectangular connector, and compare the existing part number when possible. Standard Ignition RY-293 is not a continuous-duty relay and does not include a mounting bracket.
Quality Assurance
Standard Ignition supplies electrical replacement parts for service applications, and this relay is built to match the listed electrical and connector specifications for the covered Volvo fitments.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1995 | Volvo | 940 | — | — | — | N/A | — |
| 1994 | Volvo | 940 | — | — | — | N/A | — |
| 1993 | Volvo | 240 | — | — | — | N/A | — |
| 1993 | Volvo | 940 | — | — | — | N/A | — |
| 1992 | Volvo | 240 | — | — | — | N/A | — |
| 1992 | Volvo | 740 | — | — | — | N/A | — |
| 1992 | Volvo | 940 | — | — | — | N/A | — |
| 1991 | Volvo | 240 | — | — | — | N/A | — |
| 1991 | Volvo | 740 | — | — | — | N/A | — |
| 1991 | Volvo | 780 | — | — | — | N/A | — |
| 1990 | Volvo | 240 | — | — | — | N/A | — |
| 1990 | Volvo | 740 | — | — | — | N/A | — |
| 1990 | Volvo | 780 | — | — | — | N/A | — |
| 1989 | Volvo | 740 | — | — | — | N/A | — |
| 1989 | Volvo | 780 | — | — | — | N/A | — |
| 1988 | Volvo | 740 | — | — | — | N/A | — |
| 1988 | Volvo | 780 | — | — | — | N/A | — |
| 1987 | Volvo | 740 | — | — | — | N/A | — |
| 1987 | Volvo | 760 | — | — | — | N/A | — |
| 1987 | Volvo | 760 | 2.3L | L4 | — | N/A | — |
| 1987 | Volvo | 780 | — | — | — | N/A | — |
| 1986 | Volvo | 740 | 2.3L | L4 | — | N/A | — |
| 1986 | Volvo | 740 | — | — | GAS | N/A | — |
| 1986 | Volvo | 760 | 2.3L | L4 | — | N/A | — |
| 1986 | Volvo | 760 | — | — | — | N/A | — |
| 1985 | Volvo | 740 | — | — | — | N/A | — |
| 1985 | Volvo | 740 | 2.3L | L4 | — | N/A | — |
| 1985 | Volvo | 745 | 2.3L | L4 | — | N/A | — |
| 1985 | Volvo | 745 | — | — | — | N/A | — |
| 1985 | Volvo | 760 | — | — | GAS | N/A | — |
| 1985 | Volvo | 760 | 2.3L | L4 | — | N/A | — |
| 1985 | Volvo | 760 | 2.8L | V6 | — | N/A | — |
