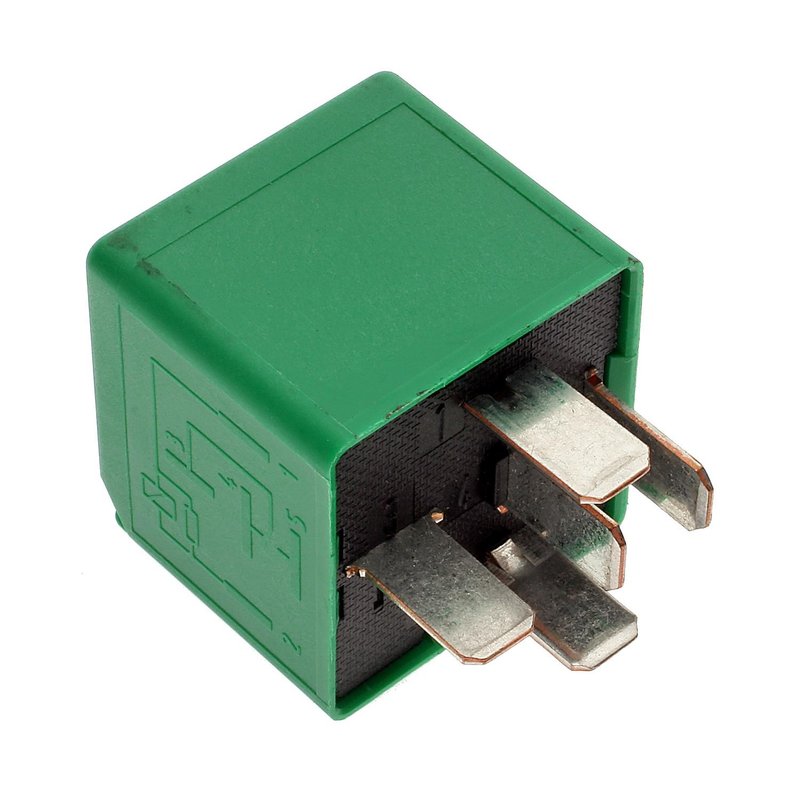

Standard Ignition RY-306 Headlight Dimmer Switch Relay

Reliable Headlight Dimmer Switch Relay for Dodge, Ford, and Mercury

The Standard Ignition RY-306 headlight dimmer switch relay is designed to provide consistent electrical performance for your vehicle's lighting system. Engineered for select Dodge, Ford, and Mercury models, this relay ensures proper headlight dimming functionality and electrical control.

• Amperage Rating: 20 amps for stable current handling
• Connector Shape: Square for secure and precise fitment
• Terminal Type: 5 male blade terminals for reliable connections
• Voltage: 12 volts compatible with standard automotive electrical systems
• Continuous Duty: Not rated for continuous duty, designed for intermittent use
• Mounting Bracket: Not included, allowing flexible installation options

Technical Details and Compatibility

The RY-306 relay from Standard Ignition is a critical component in the electrical, lighting, and body category, specifically designed as a headlight dimmer switch relay. It features a 20 amp amperage rating and operates at 12 volts, matching the electrical requirements of many Dodge Ram trucks (1500, 2500, 3500 series), Ford Focus, and Mercury Cougar and Mystique models. The relay’s square connector shape and five male blade terminals ensure a secure and precise connection within the vehicle’s wiring harness. While it is not rated for continuous duty, it is engineered to handle the intermittent switching demands of headlight dimming circuits.

Common Applications and Problem Resolution

• Restores proper headlight dimming function in Dodge Ram 1500 and 2500 models
• Resolves intermittent or non-functioning headlight dimmer issues in Ford Focus vehicles
• Replaces faulty relays causing headlight flickering in Mercury Cougar and Mystique
• Addresses electrical relay failures that affect headlight brightness control
• Improves reliability of headlight switching circuits in compatible Dodge, Ford, and Mercury models

Installation Notes and Tips

Installation of the Standard Ignition RY-306 relay requires basic automotive electrical knowledge. Ensure the vehicle’s battery is disconnected before replacing the relay to avoid electrical shorts. The relay’s square connector and blade terminals should align precisely with the vehicle’s wiring harness. Since no mounting bracket is included, secure the relay in a stable location within the relay panel or fuse box area. Verify all connections are tight and free of corrosion before re-energizing the system.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and fitment. The RY-306 headlight dimmer switch relay undergoes rigorous quality control testing to maintain electrical integrity and durability. Warranty coverage details are provided by Standard Ignition and typically include protection against manufacturing defects. Consult product documentation for specific warranty terms.
