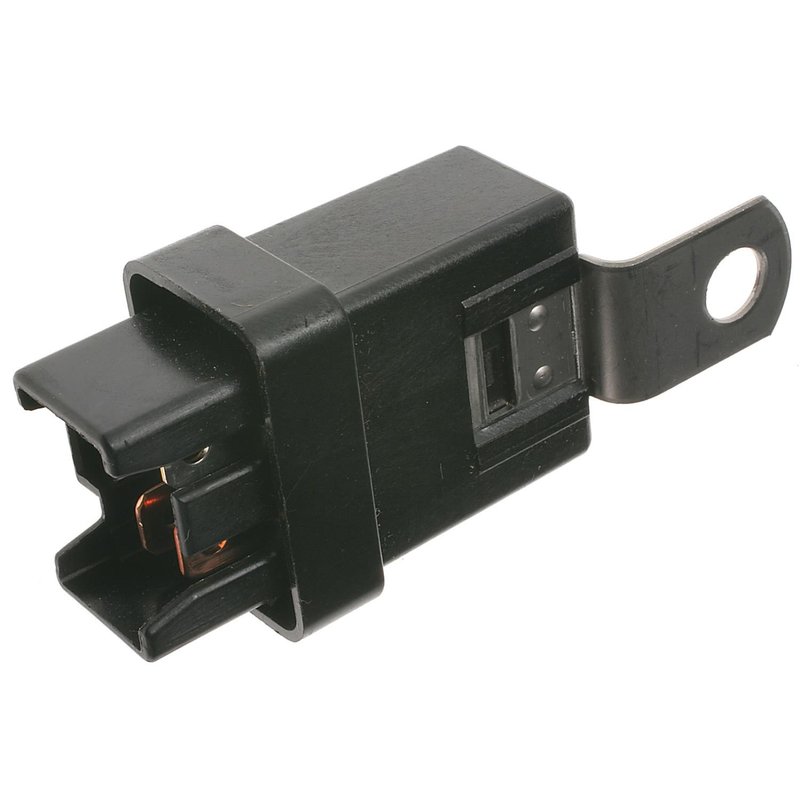

Standard Ignition RY-314 HVAC Relay
| Brand | Standard Ignition RY-314 |
|---|---|
| Amperage Rating | 20 A |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Relay |
| Continuous Duty | No |
| Functions | Relay |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Honda and Acura · 54 vehicles |
Mounting bracket included. Simplifies installation with the needed support already in place.
12-volt relay. Built for standard electrical systems with a 20-amp rating.
Blade terminals. Rectangular connector with four male terminals for a secure connection.
Cross-references Davico Mfg 19322, Standard Ignition RY-314 and 1R1093 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
HVAC Relay for Honda and Acura Applications
Standard Ignition RY-314 is a 12-volt HVAC relay built for select Honda and Acura vehicles that use a 4-blade terminal layout. With a 20 amp amperage rating, female connector, and included mounting bracket, it is a direct-fit electrical relay for HVAC circuit control in the applications listed below.
Key Features
- 12 V HVAC relay for climate control circuit operation
- 20 A amperage rating for the specified HVAC load
- Female connector with 1 rectangular connector interface
- 4 male blade terminals for the listed OE-style applications
- Mounting bracket included for supported vehicle installations
- Standard Ignition RY-314 replacement part number
Detailed Product Overview
Standard Ignition RY-314 is an HVAC relay used in select Honda Civic, Honda Accord, Honda Prelude, Honda Pilot, and Acura models where the original relay uses a 4-blade terminal configuration. This relay is listed for applications such as 1986-2007 Honda and Acura vehicles, including Honda Accord, Honda Civic, Honda CRX, Honda Prelude, Honda Odyssey, Honda Pilot, Acura Integra, Acura NSX, Acura TL, and Acura Insight. It cross-references Davico Mfg 19322 for the same application.
Use Standard Ignition RY-314 when the HVAC system needs a relay that matches the vehicle’s OE-style electrical connection and mounting setup. The part number RY-314 is also referenced in interchange listings for common replacement searches on Honda Accord HVAC relay, Honda Civic HVAC relay, and Acura Integra relay applications.
What This Relay Helps Address
- HVAC blower or climate control relay failure
- Intermittent air conditioning or heater operation
- No-response HVAC circuit switching caused by worn relay contacts
- Electrical connection issues from a damaged relay terminal interface
- Replacement needs for OE-numbered Honda and Acura relay applications
Installation Notes and Fitment
- Fits 2003-2007 Honda Pilot, N/A
- Fits 2002 Honda Insight, N/A; OE No. RC-2201; Mitsuba; 4 Blade Term.
- Fits 2000-2001 Honda Accord, N/A; w/ U.S. Emissions; OE No. 39797-SE0-004; 4 Blade Term.
- Fits 1998-2000 Honda Prelude, N/A; OE No. 39797-SE0-004; 4 Blade Term.
- Fits 1988-1990 Honda Prelude, N/A; OE No. 39797-SE0-004; 4 Blade Term.
- Fits 1988-1991 Honda Civic, N/A; OE No. 39797-SE0-004; 4 Blade Term.
- Fits 1986-1987 Honda Prelude, N/A; HVAC Automatic Temperature Control (ATC) Relay with Bracket
- Fits 1986-1987 Honda Civic, N/A; 4 Blade Term.
- Fits 1986-1989 Acura Integra, N/A; Mitsuba; 4 Blade Term.
- Fits 1995-1997 Acura TL, N/A; Mitsuba; 4 Blade Term.; In Engine Compartment or w/o Skirt
- Fits 1995-1996 Acura NSX, N/A; OE No. 39797-SE0-004; Mitsuba; 4 Blade Term.; In Dash
- Fits 1998 Honda Odyssey, N/A; Stamping No. 39797-SE0-004
Before installation, confirm the connector shape, terminal count, and OE reference on the original relay. Match the vehicle’s HVAC relay location and note details such as engine compartment, in-dash, or bracketed mounting where specified in the fitment notes.
Quality Assurance
Standard Ignition supplies this relay as an OE-style electrical replacement for the listed Honda and Acura applications. The RY-314 is built to match the specified 12-volt, 20 amp, 4-blade relay requirements used in the fitment data.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Honda | Pilot | — | — | — | N/A | — |
| 2006 | Honda | Pilot | — | — | — | N/A | — |
| 2005 | Honda | Pilot | — | — | — | N/A | — |
| 2004 | Honda | Pilot | — | — | — | N/A | — |
| 2003 | Honda | Pilot | — | — | — | N/A | — |
| 2002 | Honda | Insight | — | 1.0L | L3 | N/A | OE No. RC-2201; Mitsuba; 4 Blade Term. |
| 2001 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 2001 | Honda | Accord | — | — | — | N/A | w/ U.S. Emissions; OE No. 39797-SE0-004; 4 Blade Term. |
| 2000 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 2000 | Honda | Accord | — | — | — | N/A | w/ U.S. Emissions; OE No. 39797-SE0-004; 4 Blade Term. |
| 2000 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1999 | Honda | Accord | — | — | — | N/A | w/ U.S. Emissions; OE No. 39797-SE0-004; 4 Blade Term. |
| 1999 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1998 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1998 | Acura | NSX | — | — | — | N/A | OE No. 39797-SE0-004; Mitsuba |
| 1998 | Honda | Accord | — | — | — | N/A | w/ U.S. Emissions; OE No. 39797-SE0-004; 4 Blade Term. |
| 1998 | Honda | Odyssey | — | 2.3L | L4 | N/A | Stamping No. 39797-SE0-004 |
| 1998 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1997 | Acura | TL | — | — | — | N/A | w/o Skirt; Mitsuba; 4 Blade Term.; In Engine Compartment |
| 1996 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1996 | Acura | NSX | — | — | — | N/A | OE No. 39797-SE0-004; Mitsuba; 4 Blade Term.; In Dash |
| 1996 | Acura | TL | — | — | — | N/A | w/o Skirt; Mitsuba; 4 Blade Term. |
| 1995 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1995 | Acura | NSX | — | — | — | N/A | OE No. 39797-SE0-004; Mitsuba; 4 Blade Term.; In Dash |
| 1995 | Acura | TL | — | — | — | N/A | w/ Bracket; Mitsuba; 4 Blade Term.; In Engine Compartment |
| 1995 | Acura | TL | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1994 | Acura | Integra | Sedan | — | — | N/A | OE No. 39797-SE0-004 |
| 1993 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1992 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1991 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1991 | Honda | Civic | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1991 | Honda | CRX | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1991 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Term. |
| 1990 | Acura | Integra | — | — | — | N/A | OE No. 39797-SE0-004; Mitsuba; 4 Blade Term. |
| 1990 | Honda | Accord | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1990 | Honda | Civic | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1990 | Honda | CRX | — | — | — | N/A | 4 Blade Term. |
| 1990 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1989 | Acura | Integra | — | — | — | N/A | Mitsuba; 4 Blade Term. |
| 1989 | Honda | Accord | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1989 | Honda | Civic | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1989 | Honda | CRX | — | — | — | N/A | 4 Blade Term. |
| 1989 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1988 | Acura | Integra | — | — | — | N/A | Mitsuba; 4 Blade Term. |
| 1988 | Honda | Civic | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1988 | Honda | CRX | — | — | — | N/A | 4 Blade Term. |
| 1988 | Honda | Prelude | — | — | — | N/A | OE No. 39797-SE0-004; 4 Blade Term. |
| 1987 | Acura | Integra | — | — | — | N/A | Mitsuba; 4 Blade Term. |
| 1987 | Honda | Civic | — | — | — | N/A | 4 Blade Term. |
| 1987 | Honda | Prelude | — | — | — | N/A | HVAC Automatic Temperature Control (ATC) Relay with Bracket |
| 1986 | Acura | Integra | — | — | — | N/A | Mitsuba; 4 Blade Term. |
| 1986 | Honda | Accord | — | — | — | N/A | OE No. 39797-SE0-004 |
| 1986 | Honda | Civic | — | — | — | N/A | 4 Blade Term. |
| 1986 | Honda | Prelude | — | — | — | N/A | HVAC Automatic Temperature Control (ATC) Relay with Bracket |
