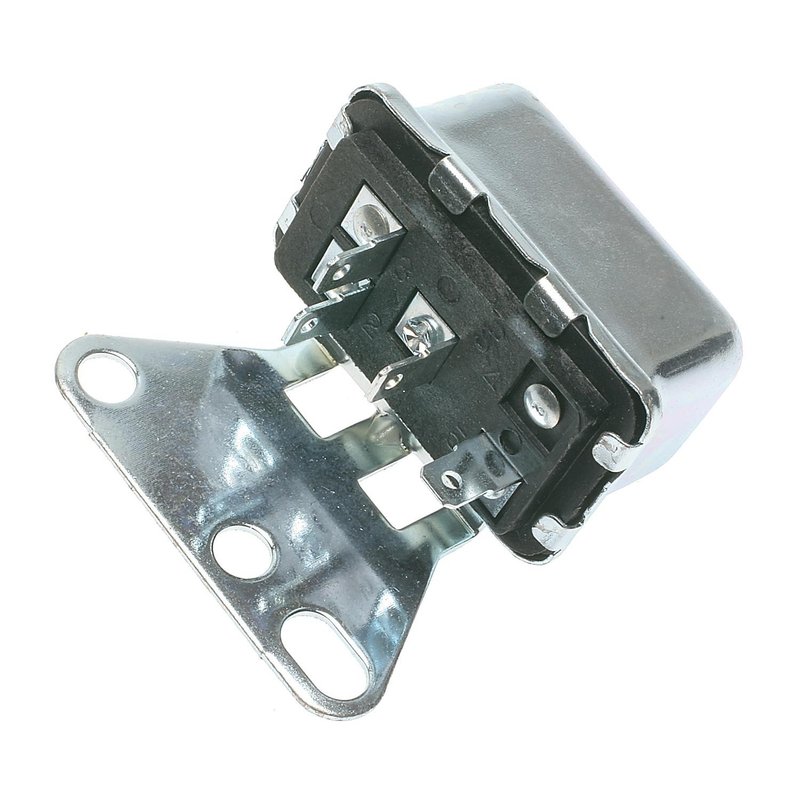

Standard Ignition RY-4 HVAC Automatic Temperature Control (ATC) Relay

Overview of Standard Ignition RY-4 HVAC ATC Relay

The Standard Ignition RY-4 HVAC Automatic Temperature Control (ATC) Relay is designed to ensure reliable operation of the blower motor in select Cadillac models. Engineered for durability and precise fitment, this 12-volt relay supports efficient climate control system performance in vehicles such as the Cadillac DeVille and Eldorado.

• Amperage rating of 25 amps for consistent electrical load handling
• Rectangular connector shape with four male blade terminals
• Includes mounting bracket(s) for secure installation
• Designed specifically for blower motor function in HVAC systems
• Compatible with 12-volt electrical systems

Detailed Product Description

The RY-4 relay from Standard Ignition is a critical component in the HVAC system of Cadillac Commercial Chassis, DeVille, Eldorado, Fleetwood, and Seville models. This relay controls the blower motor, enabling automatic temperature regulation within the vehicle cabin. Featuring a 25-amp amperage rating, it is built to handle the electrical demands of the blower motor without overheating or failure. The relay’s rectangular connector shape and four male blade terminals ensure a secure and precise connection to the vehicle’s wiring harness. Additionally, the included mounting bracket(s) facilitate proper and stable installation, reducing the risk of vibration-related issues.

Common Applications and Issues Addressed

• Restores blower motor operation when the relay has failed
• Eliminates intermittent HVAC blower issues caused by faulty relays
• Prevents overheating and electrical shorts in the blower motor circuit
• Ensures consistent automatic temperature control performance
• Replaces worn or damaged relays in Cadillac DeVille and Eldorado HVAC systems

Installation Notes and Tips

When installing the Standard Ignition RY-4 relay, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shock. Verify the relay’s rectangular connector aligns correctly with the vehicle’s wiring harness terminals. Use the included mounting bracket(s) to secure the relay firmly in place, minimizing vibration and potential disconnections. It is recommended to inspect related HVAC wiring and fuses during installation to ensure overall system integrity.

Quality Assurance and Warranty

Standard Ignition manufactures the RY-4 relay to meet or exceed OEM specifications for fit, form, and function. This relay undergoes rigorous testing to ensure reliable performance in demanding automotive environments. While specific warranty details may vary, Standard Ignition products typically include a limited warranty against defects in materials and workmanship, providing confidence in the product’s durability and reliability.
