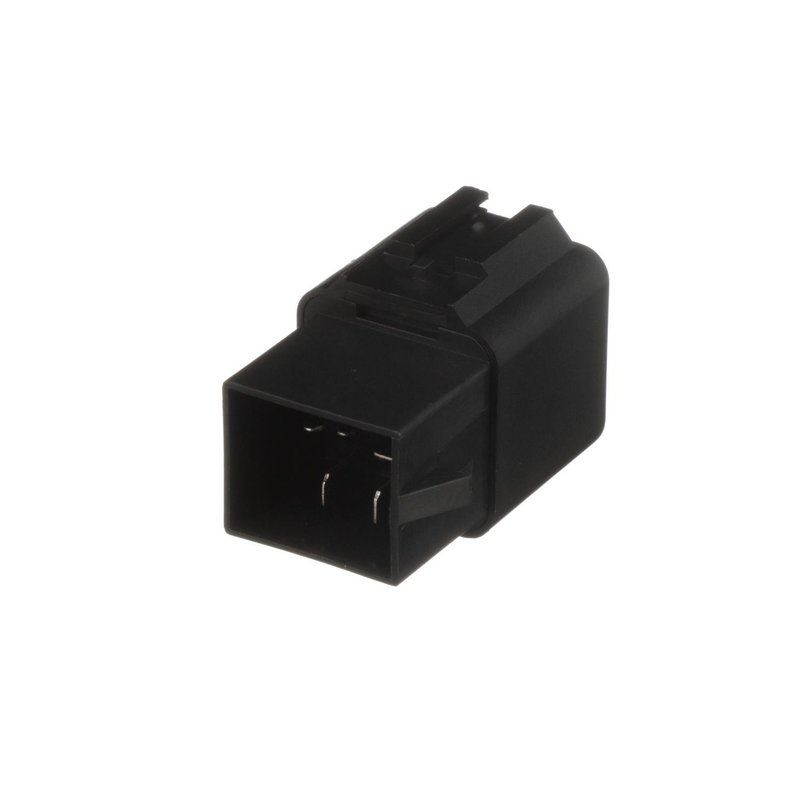

Standard Ignition RY-46 HVAC Automatic Temperature Control (ATC) Relay

Reliable HVAC Automatic Temperature Control Relay for Ford and Lincoln Vehicles

The Standard Ignition RY-46 HVAC Automatic Temperature Control (ATC) Relay is designed to provide dependable operation for your vehicle's climate control system. Engineered for select Ford, Lincoln, Mazda, Mercury, and Plymouth models, this relay ensures consistent performance in managing your HVAC system's electrical functions.

• Amperage rating of 25 amps for efficient current handling
• Single female rectangular connector for secure electrical connection
• Five male blade terminals for reliable circuit integration
• Operates at 12 volts, compatible with standard automotive electrical systems
• Designed specifically for HVAC automatic temperature control applications

Technical Details and Compatibility

The RY-46 relay features a rectangular female connector with one connection point and five male blade terminals, providing a stable and precise fit within the HVAC system. With a 25 amp amperage rating and 12-volt operation, it is suitable for continuous cycling in automatic temperature control circuits, although it is not rated for continuous duty. This relay is compatible with a wide range of vehicles including Ford models such as the Bronco, F-150, Mustang, and Explorer; Lincoln models like the Continental and Town Car; as well as select Mazda, Mercury, and Plymouth vehicles.

Common HVAC Issues Addressed by the RY-46 Relay

• Intermittent or non-functioning automatic temperature control systems
• HVAC blower motor failing to engage properly
• Electrical relay failure causing inconsistent climate control operation
• HVAC system not responding to temperature adjustments
• Relay-related electrical faults affecting heating and cooling performance

Installation Notes and Tips

When installing the Standard Ignition RY-46 relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. Verify the relay's connector orientation matches the vehicle's wiring harness, noting the female rectangular connector and blade terminal configuration. No mounting brackets are included, so secure the relay in the designated relay socket or bracket within the HVAC control module area. Consult the vehicle’s service manual for specific relay location and wiring diagrams to ensure proper installation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The RY-46 HVAC Automatic Temperature Control Relay undergoes rigorous quality control testing to maintain consistent electrical and mechanical standards. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation or manufacturer’s website for exact warranty terms.
