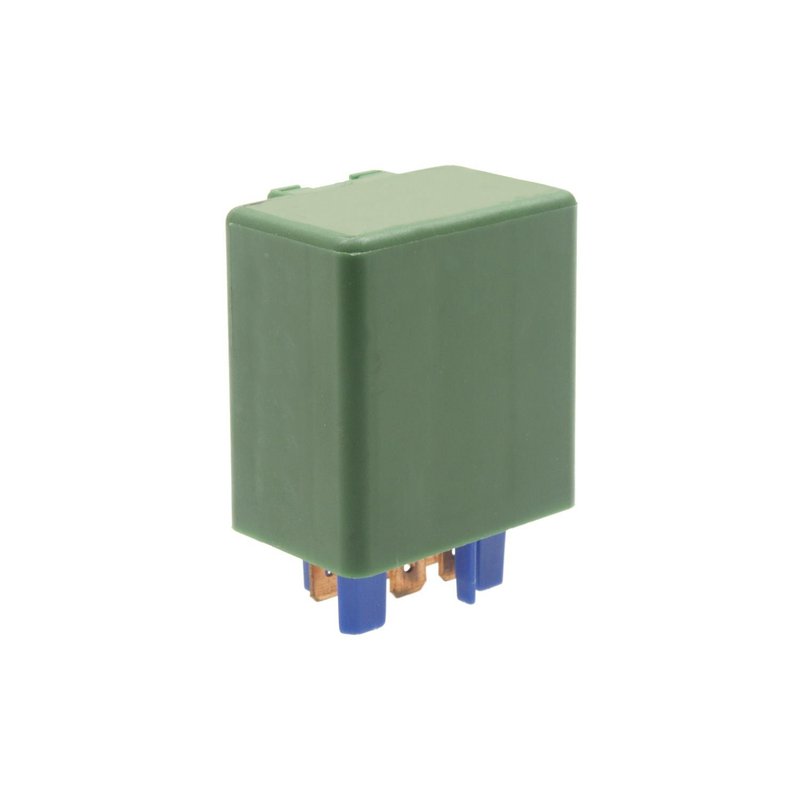

Standard Ignition RY-568 Fuel Pump Relay

Fuel Pump Relay for Volvo 740, 745, and 760

Standard Ignition RY-568 is a 12-volt fuel pump relay built with a rectangular connector, 6 male blade terminals, and a 30 amp amperage rating. It is listed as a fuel injection relay and is a direct-fit option for select Volvo 740, 745, and 760 applications.

Key Features

• 12 V relay for fuel pump and fuel injection circuit control
• 30 A amperage rating for automotive electrical service
• Rectangular connector shape with 6 male blade terminals
• Standard Ignition RY-568 replacement relay
• Fits select 1983-1987 Volvo 760, 1986 Volvo 740, and 1985 Volvo 745 applications

Detailed Description

Standard Ignition RY-568 is an air and fuel delivery relay used to switch power for the fuel pump and fuel injection system. The 12-volt design, blade-style terminals, and rectangular connector layout support OE-style electrical connection on the listed Volvo applications. This part cross-references Remy 20519 for the same application. If you are searching for a Volvo 740 fuel pump relay, Volvo 745 fuel injection relay, or Volvo 760 relay replacement, RY-568 is the cataloged match for those vehicles.

Fits 1983-1987 Volvo 760, N/A. Fits 1986 Volvo 740, N/A. Fits 1985 Volvo 745, N/A.

What It Is Used For

• Restoring fuel pump relay operation when the engine will not receive proper pump power
• Addressing intermittent fuel delivery caused by relay contact wear
• Replacing a failed fuel injection relay in select Volvo 740, 745, and 760 models
• Correcting no-start conditions related to relay control in the fuel system circuit
• Resolving electrical switching issues in the fuel delivery system

Installation Notes and Tips

Verify the connector shape, terminal count, and voltage rating before installation. Match the relay to the vehicle’s original fuel pump or fuel injection relay location and confirm the terminals are clean and fully seated. Because this relay is not continuous duty and does not include a mounting bracket, reuse the original mounting arrangement where applicable.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. RY-568 is cataloged as a direct replacement relay for the listed Volvo applications and is built to the specified 12 V, 30 A, 6-terminal configuration.
