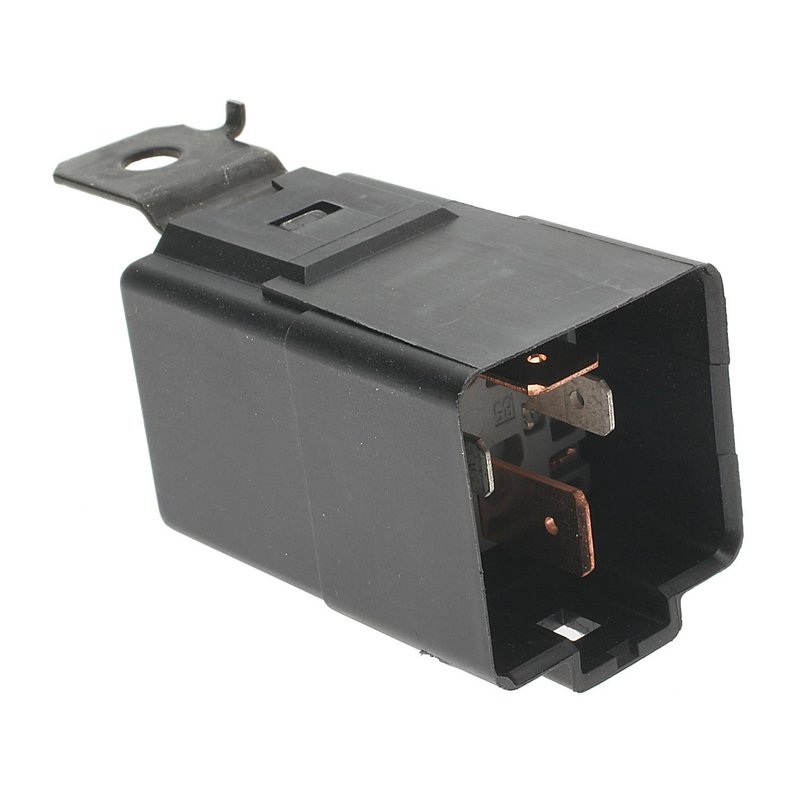

Standard Ignition RY-613 Secondary Air Injection Relay

Reliable Secondary Air Injection Relay for Chrysler and Dodge Vehicles

The Standard Ignition RY-613 Secondary Air Injection Relay is designed to ensure proper operation of the emission control system in select Chrysler and Dodge models. This relay supports the secondary air injection system by managing electrical current flow, helping maintain optimal emissions performance.

• Amperage rating of 70 amps for robust electrical handling
• Female square connector with one connection point
• Includes mounting bracket(s) for secure installation
• Four male blade terminals for reliable electrical contact
• Operates at 12 volts, compatible with vehicle electrical systems
• Designed specifically for emission control relay functions

Detailed Product Description and Specifications

The Standard Ignition RY-613 relay is engineered to meet the electrical demands of the secondary air injection system in vehicles such as the Chrysler Concorde, Intrepid, LHS, New Yorker, and Dodge Ram 2500, Ram 3500, and Stratus. With a 70 amp amperage rating, this relay can handle the high current required to activate the air injection pump and valves. The relay features a female square connector with a single connection point, ensuring a secure and precise fit. It includes a mounting bracket for easy and stable installation within the engine compartment. The relay’s four male blade terminals provide solid electrical connections, supporting consistent relay operation at 12 volts. This relay is not rated for continuous duty, aligning with the intermittent operation typical of secondary air injection systems.

Common Applications and Issues Addressed

• Restores proper function to the secondary air injection system
• Resolves issues with emission control system warning lights
• Prevents failure of the air injection pump activation
• Eliminates intermittent electrical faults related to relay failure
• Supports compliance with emission standards by ensuring system operation

Installation Notes and Tips

When installing the Standard Ignition RY-613 relay, ensure the vehicle’s battery is disconnected to prevent electrical shorts. The included mounting bracket should be used to secure the relay firmly in place, avoiding vibration damage. Verify the orientation of the female square connector and blade terminals to match the vehicle’s wiring harness. This relay is designed for specific Chrysler and Dodge models, so confirm compatibility with your vehicle’s make and model before installation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance in emission control applications. The RY-613 relay undergoes rigorous testing to ensure durability and electrical integrity. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, supporting long-term vehicle operation.
