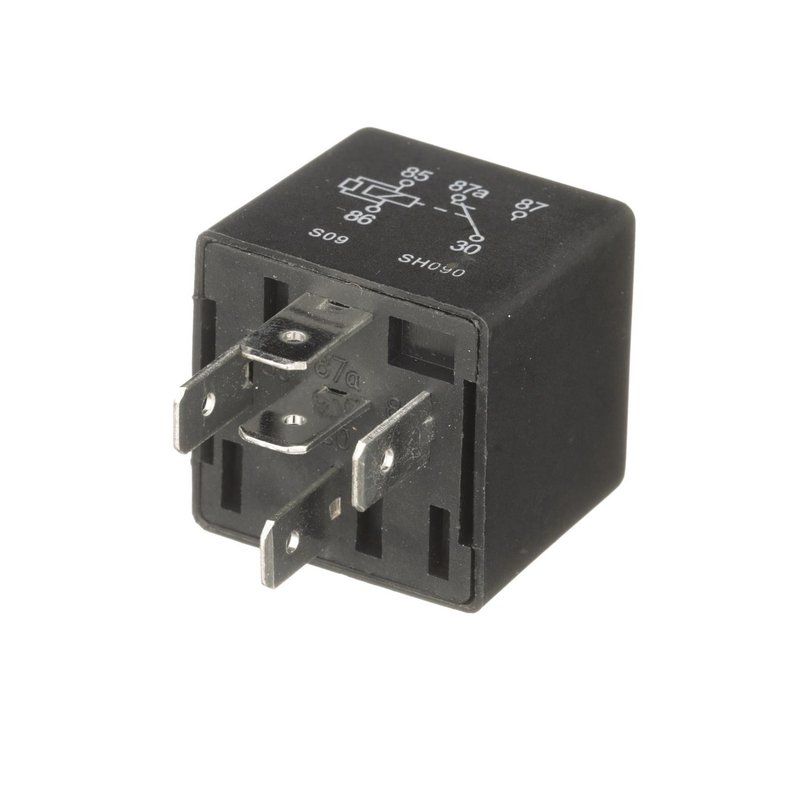

Standard Ignition RY-624 Fast Idle Valve Solenoid Relay

Fast Idle Valve Solenoid Relay Overview

Standard Ignition RY-624 is a 12-volt, 30-amp relay built for fast idle valve solenoid and related relay applications. It uses a square connector shape, 5 male blade terminals, and a non-continuous duty design for the specified vehicle circuits.

Compatible With Chevrolet Camaro, Pontiac Firebird, Chevrolet Caprice, Buick Century, Buick Regal, Pontiac Grand Prix, and other listed applications from 1992-2001. If you are replacing a relay on a 1998-2001 Chevrolet Camaro or 1998-2001 Pontiac Firebird, RY-624 provides the correct terminal style and electrical rating for the application.

• 30 A amperage rating for relay-controlled circuits
• 12-volt electrical specification
• Square connector shape
• 5 male blade terminals
• Relay function for fast idle valve solenoid and related systems
• Composite housing for resistance to under-hood heat and harsh conditions
• Brass or copper contacts where specified for wear resistance

Detailed Application Information

Standard Ignition RY-624 is manufactured to strict quality requirements and built with OE-style construction practices. The relay is used in vehicle electrical systems that require a 5-terminal, 12-volt switching component, including listed ABS relay applications on select 1996-1997 Chevrolet Camaro and Pontiac Firebird models. This part cross-references Baldwin 20007 for the same application.

For fitment-focused searches, this relay is listed for 1993-1996 Chevrolet Camaro, 1998-2001 Chevrolet Camaro, 1993-1996 Pontiac Firebird, 1998-2001 Pontiac Firebird, and additional GM and Dodge applications shown in the fitment data. Standard Ignition RY-624 is a direct replacement-style relay for vehicles that require the specified connector and terminal configuration.

Common Problems This Relay Can Address

• Intermittent relay operation in the fast idle valve solenoid circuit
• No-start or drivability issues caused by a failed switching relay
• Electrical faults related to worn relay contacts
• Heat-related relay failure in under-hood environments
• Incorrect terminal fitment when replacing a 5-pin relay

Installation Notes

Verify the connector shape, terminal count, terminal gender, and amperage rating before installation. This relay uses a square connector with 5 male blade terminals and is not a continuous-duty relay. Confirm the vehicle’s original relay specification and match the application notes for models such as Chevrolet Camaro and Pontiac Firebird, including the listed ABS relay variants.

Quality Assurance

Standard Ignition manufactures this relay under TS16949 and ISO9001 certified processes, with quality control maintained from component selection through finished product. Composite housings and specified metal contacts are used to support durability in demanding automotive electrical systems.
