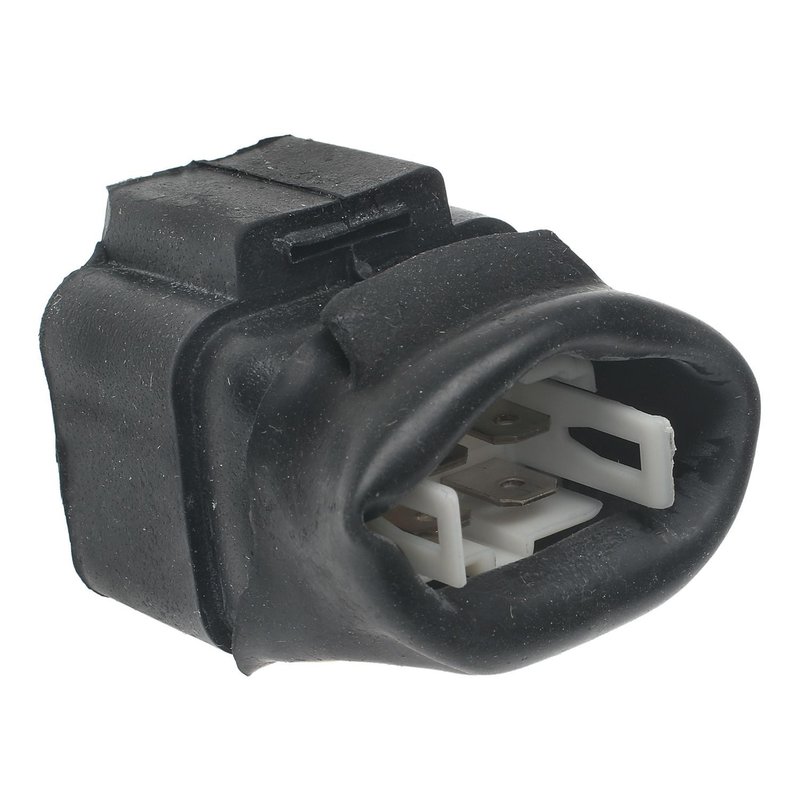

Standard Ignition RY-659 Engine Cooling Fan Motor Relay
| Brand | Standard Ignition RY-659 |
|---|---|
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Relay |
| Continuous Duty | No |
| Functions | Relay |
| Mounting Bracket(s) Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Mazda · 22 vehicles |
Direct replacement. Engine cooling fan motor relay with a 12-volt, 4-blade terminal design.
Rectangular connector. Female 1-connector layout for a straightforward electrical match.
Relay function. Controls fan motor power with a simple relay design.
Cross-references Four Seasons 20216, Standard Ignition RY-659 and AR6164 for the same application. See all 5.
Engine Cooling Fan Relay for Mazda Applications
Standard Ignition RY-659 is a 12-volt engine cooling fan motor relay built for Mazda cooling system control. It uses a rectangular female connector with four male blade terminals to support relay function in the fan circuit.
Key Features
- 12-volt engine cooling fan motor relay
- Rectangular connector with female housing
- Four male blade terminals
- Relay function for cooling fan circuit control
- No mounting bracket included
- Standard Ignition RY-659 replacement part
Detailed Description
This Standard Ignition RY-659 relay is used in engine cooling fan motor circuits where electrical switching is required to control fan operation. It is a direct-fit relay style component with one connector, a rectangular shape, and blade-style terminals for vehicle electrical integration. Fits 1995-2002 Mazda Millenia, N/A; Fits 1995-1997 Mazda Miata, N/A; Fits 1992-1996 Mazda MX-3, N/A; Fits 1990-1995 Mazda 323, N/A. This part cross-references Four Seasons 20216 for the same application. The RY-659 part number is also referenced in interchange listings for related cooling fan relay applications.
What It Helps Address
- Cooling fan not switching on when engine temperature rises
- Intermittent fan operation caused by relay contact wear
- Electrical relay failure in the fan control circuit
- Overheating concerns tied to fan circuit interruption
- Loss of proper fan command in Mazda cooling system wiring
Installation Notes and Tips
Verify connector shape, terminal count, and terminal style before installation. Confirm the vehicle uses a 12-volt relay with a rectangular female connector and four male blade terminals. Match the existing relay location and wiring layout on the Mazda Millenia, Mazda Miata, Mazda MX-3, or Mazda 323 before replacement.
Quality Assurance
Standard Ignition supplies this relay as an electrical replacement component for cooling fan circuit service. Confirm fitment by year, make, and model before ordering.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Mazda | Millenia | N/A | — |
| 2001 | Mazda | Millenia | N/A | — |
| 2000 | Mazda | Millenia | N/A | — |
| 1999 | Mazda | Millenia | N/A | — |
| 1998 | Mazda | Millenia | N/A | — |
| 1997 | Mazda | Miata | N/A | — |
| 1997 | Mazda | Millenia | N/A | — |
| 1996 | Mazda | Miata | N/A | — |
| 1996 | Mazda | Millenia | N/A | — |
| 1996 | Mazda | MX-3 | N/A | — |
| 1995 | Mazda | 323 | N/A | — |
| 1995 | Mazda | Miata | N/A | — |
| 1995 | Mazda | Millenia | N/A | — |
| 1995 | Mazda | MX-3 | N/A | — |
| 1994 | Mazda | 323 | N/A | — |
| 1994 | Mazda | MX-3 | N/A | — |
| 1993 | Mazda | 323 | N/A | — |
| 1993 | Mazda | MX-3 | N/A | — |
| 1992 | Mazda | 323 | N/A | — |
| 1992 | Mazda | MX-3 | N/A | — |
| 1991 | Mazda | 323 | N/A | — |
| 1990 | Mazda | 323 | N/A | — |
