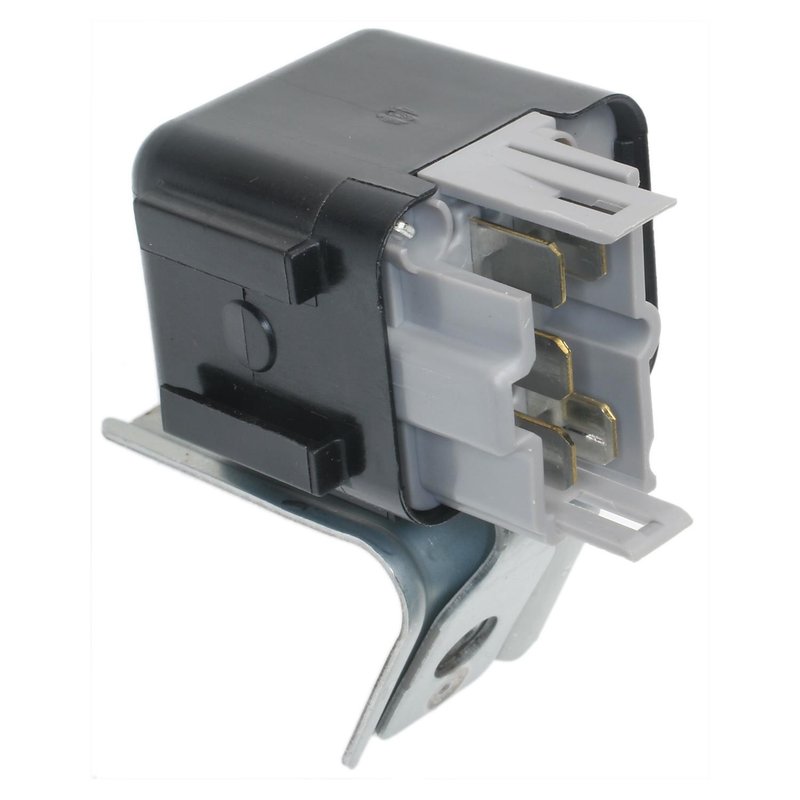

Standard Ignition RY-696 Circuit Opening Relay
| Brand | Standard Ignition RY-696 |
|---|---|
| Amperage Rating | 10 |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Relay |
| Continuous Duty | No |
| Functions | Relay |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Toyota · 15 vehicles |
OE-style relay. Direct-fit replacement for dependable circuit control.
12-volt operation. Built for standard electrical systems.
Mounting bracket included. Simplifies installation and secure placement.
Cross-references DENSO Auto Parts 567-0045, Rostra Powertrain Controls 60-0193 and Standard Ignition RY-696 for the same application. See all 11.
Standard Ignition RY-696 Circuit Opening Relay
The Standard Ignition RY-696 is a 12-volt circuit opening relay built for electrical control in select Toyota applications. It uses a 5-terminal blade design with a female rectangular connector and a mounting bracket included for a secure replacement fit.
- 12 V relay for circuit opening applications
- 10 A amperage rating
- 5 male blade terminals
- Female rectangular connector with 1 connector cavity
- Mounting bracket included
- Standard Ignition RY-696 replacement relay
Fitment and Application
Compatible With select Toyota fuel and electrical relay applications. Fits 1988-1995 Toyota 4Runner, N/A. Fits 1989-1995 Toyota Pickup, N/A. This part cross-references DENSO Auto Parts 567-0045 for the same application.
Product Details
RY-696 is a circuit opening relay used in vehicle electrical systems where controlled relay switching is required. The 12-volt design, 10 amp rating, and blade-terminal layout support direct replacement use in the listed Toyota 4Runner and Toyota Pickup applications. The rectangular female connector and five-terminal configuration help match the original relay interface for service work on these models.
Common Replacement Symptoms
- No-start condition related to relay failure
- Intermittent fuel or electrical circuit operation
- Relay clicking without consistent circuit engagement
- Heat-related relay malfunction
- Corrosion or terminal wear at the relay connection
Installation Notes and Tips
Verify the connector shape, terminal count, and mounting location before installation. Match the vehicle’s original relay layout and confirm the application against the part number RY-696 for 1988-1995 Toyota 4Runner and 1989-1995 Toyota Pickup service. Inspect the terminals and harness connector for damage or corrosion before installing the replacement relay.
Quality Assurance
Standard Ignition supplies replacement electrical components for service applications, and this relay is built to the listed electrical and connector specifications for the confirmed Toyota fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Toyota | 4Runner | N/A | — |
| 1995 | Toyota | Pickup | N/A | — |
| 1994 | Toyota | 4Runner | N/A | — |
| 1994 | Toyota | Pickup | N/A | — |
| 1993 | Toyota | 4Runner | N/A | — |
| 1993 | Toyota | Pickup | N/A | — |
| 1992 | Toyota | 4Runner | N/A | — |
| 1992 | Toyota | Pickup | N/A | — |
| 1991 | Toyota | 4Runner | N/A | — |
| 1991 | Toyota | Pickup | N/A | — |
| 1990 | Toyota | 4Runner | N/A | — |
| 1990 | Toyota | Pickup | N/A | — |
| 1989 | Toyota | 4Runner | N/A | — |
| 1989 | Toyota | Pickup | N/A | — |
| 1988 | Toyota | 4Runner | N/A | — |
