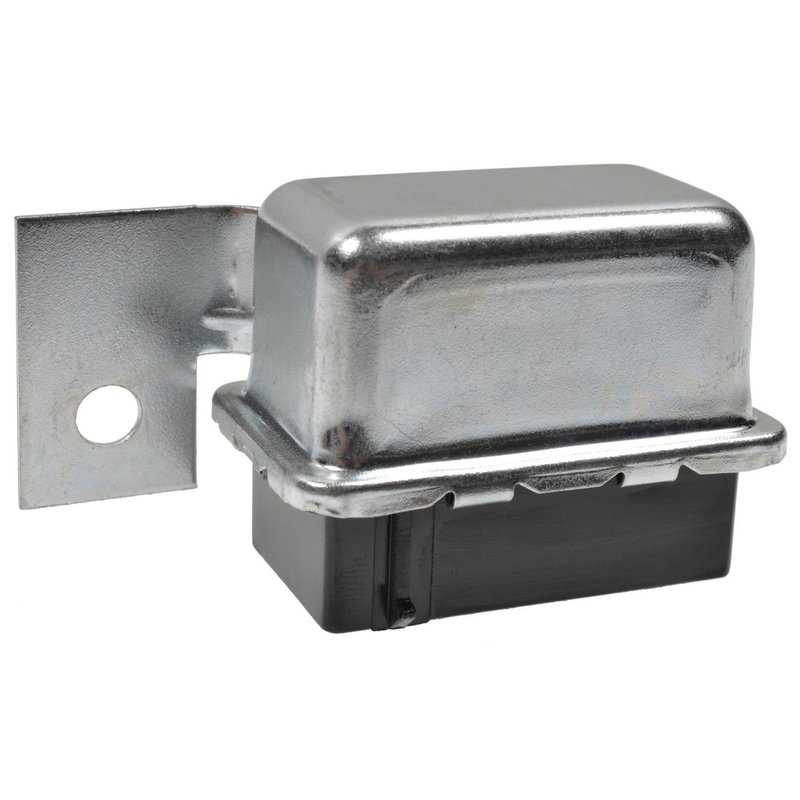

Standard Ignition RY-74 HVAC Temperature Delay Relay

Reliable HVAC Temperature Delay Relay for Chrysler, Dodge, Plymouth

The Standard Ignition RY-74 HVAC Temperature Delay Relay is designed to provide precise control for your vehicle's heating, ventilation, and air conditioning system. Engineered for select Chrysler, Dodge, and Plymouth models, this relay ensures proper timing and operation of HVAC components.

• Connector Gender: Female with 1 rectangular connector
• Terminal Type: 4 male blade terminals for secure electrical connections
• Voltage: 12V operation suitable for standard automotive electrical systems
• Includes mounting bracket(s) for straightforward installation
• Continuous duty: No, designed for intermittent HVAC relay functions

Product Details and Specifications

The RY-74 relay from Standard Ignition is a dedicated HVAC temperature delay relay that manages the timing of HVAC system components to prevent premature activation. Featuring a female rectangular connector and four male blade terminals, it ensures reliable electrical connectivity. The relay operates at 12 volts, matching the electrical requirements of Chrysler, Dodge, and Plymouth vehicles. Its design includes mounting brackets to facilitate secure placement within the HVAC system. This relay is not rated for continuous duty, reflecting its role in timed HVAC control rather than constant operation.

Compatible Vehicles and Applications

This HVAC temperature delay relay is compatible with a range of Chrysler, Dodge, and Plymouth models, including but not limited to:

• Chrysler: Caravan, Grand Caravan, Town & Country, New Yorker, Fifth Avenue
• Dodge: Charger, Dakota, Daytona, Rampage, Sundance
• Plymouth: Aries, Reliant, Laser, Sundance, Voyager, Grand Voyager
• Additional models: 600, Conquest, Expo, LeBaron, Shadow, Turismo, Lancer

Common HVAC Issues Addressed by the RY-74 Relay

• Delays in HVAC system activation causing inconsistent temperature control
• Intermittent blower motor operation or failure to engage
• HVAC relay failure leading to no heat or air conditioning
• Electrical connection issues due to worn or damaged relay terminals
• Malfunctioning temperature delay causing premature cycling of HVAC components

Installation Notes and Tips

When installing the Standard Ignition RY-74 relay, ensure the female rectangular connector aligns properly with the vehicle wiring harness. Verify that the four male blade terminals are securely connected to prevent electrical faults. Use the included mounting bracket(s) to firmly secure the relay in place, avoiding vibration or movement that could affect performance. Always disconnect the vehicle battery before installation to prevent electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RY-74 HVAC Temperature Delay Relay undergoes rigorous quality control to ensure reliable operation in compatible Chrysler, Dodge, and Plymouth vehicles. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
