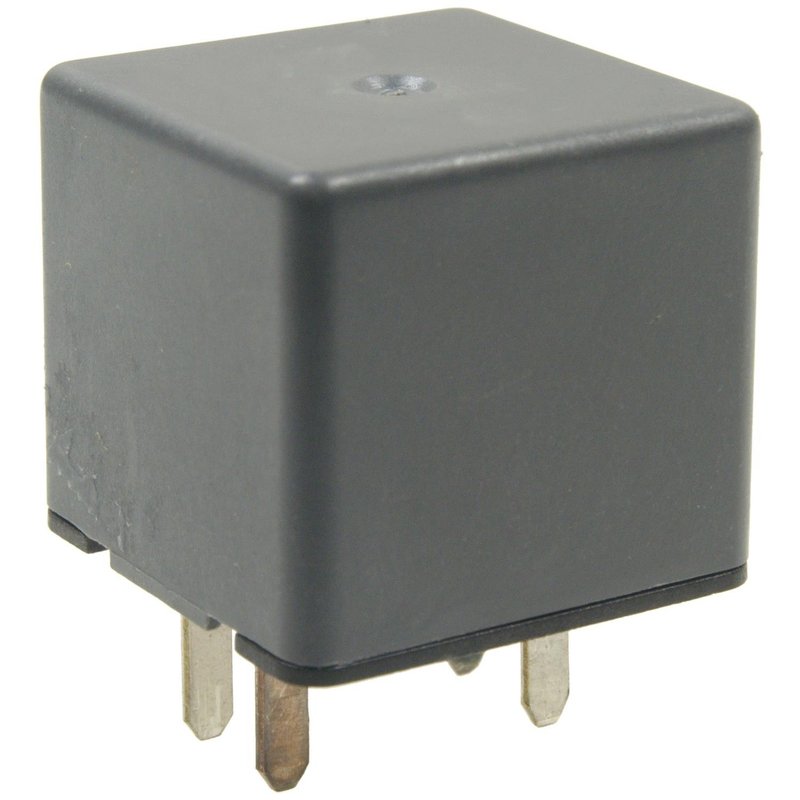

Standard Ignition RY-781 Fuel Pump Relay

Fuel Pump Relay for Ford Applications

Standard Ignition RY-781 is a 12-volt fuel pump relay built for air and fuel delivery systems that need reliable electrical switching. It is a direct-fit relay for select Ford Edge, Mustang, Freestar, and Freestyle applications, with a 40 amp rating and a 4-blade male terminal layout.

Key Features

• Fuel pump relay for 12-volt systems
• 40 amp amperage rating for relay circuit control
• Square connector shape with 4 male blade terminals
• Composite housing for protection in harsh underhood temperatures
• Brass or copper contacts used where specified for wear resistance
• Manufactured to stringent quality requirements
• Fits 2004-2007 Ford Freestar, N/A
• Fits 2005-2007 Ford Freestyle, N/A
• Fits 2005-2009 Ford Mustang, N/A
• Fits 2007-2010 Ford Edge, N/A

Detailed Description

Standard Ignition RY-781 is a fuel pump relay engineered for Ford vehicles that use a square, 4-terminal blade connection. The relay helps control electrical power to the fuel pump, making it an important part of the air and fuel delivery system. This part number, RY-781, is built with composite housing materials to handle severe underhood conditions, and specified contact materials are selected to support long service life.

This part cross-references Four Seasons 20747 for the same application. It also cross-references 1R2090 and 3F2Z14N089CA for related fitment needs.

What It Helps Address

• Fuel pump not receiving power
• Intermittent fuel delivery caused by relay failure
• No-start condition related to relay circuit interruption
• Electrical switching issues in the fuel pump control circuit
• Heat-related relay performance problems under the hood

Installation Notes and Tips

Verify the connector shape, terminal count, and amperage rating before installation. Standard Ignition RY-781 uses a square connector with 4 male blade terminals and no mounting bracket. Confirm vehicle application by year and model before replacement, especially on Ford Edge, Mustang, Freestar, and Freestyle models. Inspect the relay socket and surrounding wiring for heat damage, corrosion, or loose terminals before installing the new relay.

Quality Assurance

Standard Ignition manufactures this relay to stringent quality requirements in TS16949 and ISO9001 certified facilities, supporting consistent fit and construction for the listed Ford applications.
