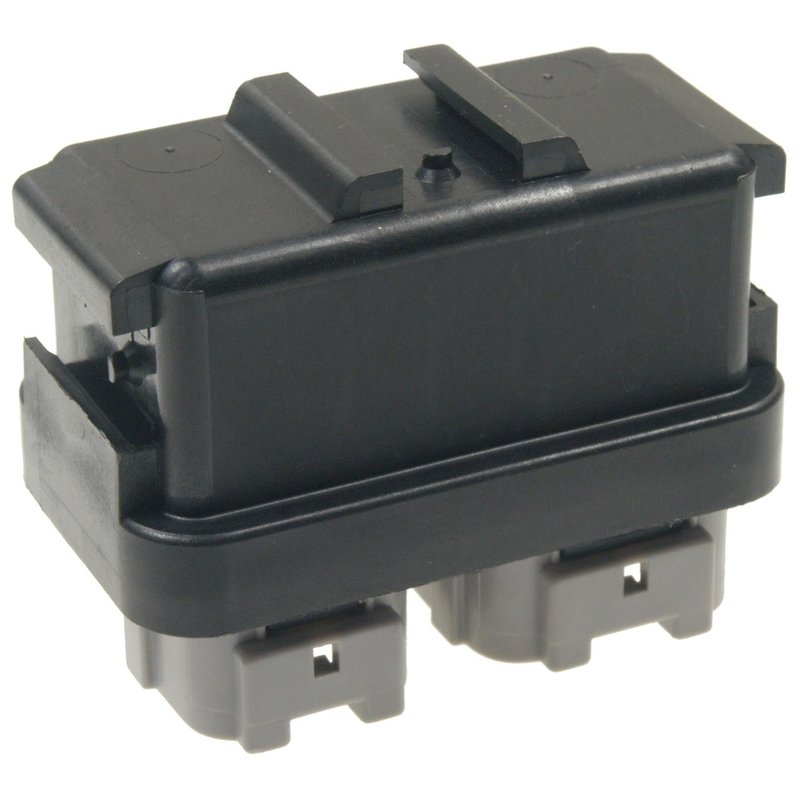

Standard Ignition RY-846 A/C Compressor Control Relay

Reliable A/C Compressor Control Relay for Lexus and Toyota Vehicles

The Standard Ignition RY-846 A/C Compressor Control Relay is designed to provide dependable operation for your vehicle's HVAC system. Compatible with select Lexus and Toyota models, this relay ensures proper control of the air conditioning compressor for efficient climate control.

• Connector Gender: Female with 2 rectangular connectors
• Terminal Type: 10 male blade terminals
• Voltage: 12V operation
• Continuous Duty: No
• Mounting Bracket: Not included
• Contents: Single relay unit

Technical Details and Specifications

This A/C compressor control relay features a 12-volt electrical system compatibility, suitable for the HVAC systems in Lexus and Toyota vehicles such as the 4Runner, Camry, Celica, Corolla, and ES300. The relay includes two female rectangular connectors and ten male blade terminals, designed for secure and reliable electrical connections. Although it does not include a mounting bracket, the relay is engineered for straightforward integration into the vehicle’s existing relay socket. It is not rated for continuous duty, aligning with typical automotive HVAC relay requirements.

Compatible Vehicles and Applications

The Standard Ignition RY-846 relay is compatible with the following makes and models:

• Lexus ES300
• Toyota 4Runner
• Toyota Camry
• Toyota Celica
• Toyota Corolla

This relay is specifically designed to control the A/C compressor clutch engagement, ensuring proper cycling and operation of the air conditioning system.

Common Issues Addressed by This Relay

• Intermittent or no A/C compressor engagement
• HVAC system failing to cool properly
• Electrical relay failure causing compressor cycling problems
• Blown fuses related to A/C compressor control
• Faulty relay causing HVAC system malfunctions

Installation Notes and Tips

Installation of the Standard Ignition RY-846 relay requires locating the existing A/C compressor control relay socket in the vehicle’s fuse box or relay panel. Ensure the ignition is off before replacement. The relay’s female rectangular connectors and male blade terminals should align with the vehicle’s wiring harness for a secure fit. Since no mounting bracket is included, use the existing mounting hardware or relay socket. Verify proper operation of the A/C system after installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RY-846 relay undergoes quality control testing to ensure reliable performance in automotive HVAC systems. Warranty coverage details should be confirmed with the product documentation or supplier.
